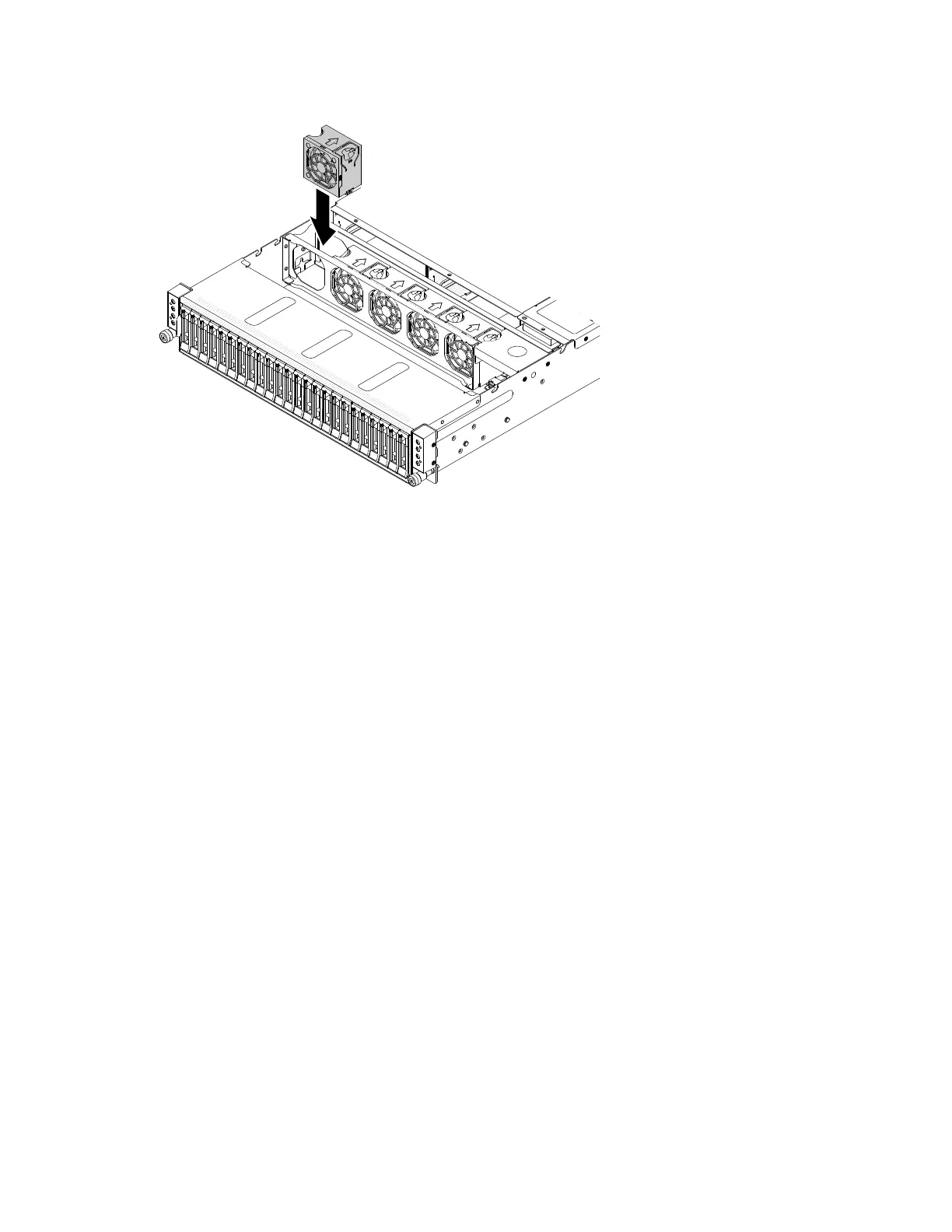

Figure29.Systemfaninstallation
Step2.Installthereplacementfaninthebracket:
a.Insertthefanintothebracket.
b.Makesurethateachofthelockingtabsonthefanisfullyseatedinitsslotinthefanbracket.
Step3.Reinstallthefancagecover(see“Installingthefancagecover”onpage83).
1.Pushtheserverintotherackuntilitclicksintoplace.
2.Reconnectthepowercordsandanycablesthatyouremoved.
3.Turnontheperipheraldevicesandtheserver.
Removingahot-swapharddiskdrive
Usethisinformationtoremoveahot-swapharddiskdrive.
Attention:
•Toavoiddamagetotheharddiskdriveconnectors,makesurethattheservercoverisinplaceandfully
closedwheneveryouinstallorremoveaharddiskdrive.
•Tomakesurethatthereisadequatesystemcooling,donotoperatetheserverformorethan2minutes
withouteitheraharddiskdriveorafillerpanelinstalledineachbay.
•Beforeyoumakechangestodiskdrives,diskdrivecontrollers(includingcontrollersthatareintegrated
onthesystemboard),diskdrivebackplanes,ordiskdrivecables,backupallimportantdatathatis
storedonharddisks.
•BeforeyouremoveanycomponentofaRAIDarray,backupallRAIDconfigurationinformation.
Readthesafetyinformationin“Safety”onpagevand“Installationguidelines”onpage75.
Toremoveahot-swapharddiskdrive,completethefollowingsteps.
