ReplacingaLANMezzadapter
UsethisinformationtoreplaceaLANMezzadapter.
Thefollowingnotesdescribethetypesofadaptersthattheserversupportsandotherinformationthatyou
mustconsiderwhenyouinstallaLANMezzadapter:
•ToconfirmthattheserversupportstheLANMezzadapterthatyouareinstalling,see
http://www.lenovo.com/us/en/serverproven/.
•ToconfirmthattheserversupportstheLANMezzadapterthatyouareinstalling,see
http://www.lenovo.com/us/en/serverproven/.
•IfyouareinstallingadifferentLANMezzadapter,makesureyoualsoneedtoreplacethestandoffs
whichcomefromthepackage.
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
00
00
00
00
00
00
000000
000000
000000
000000
000000
Standoff
(For RJ-45)
Standoff
(For Intel X520)

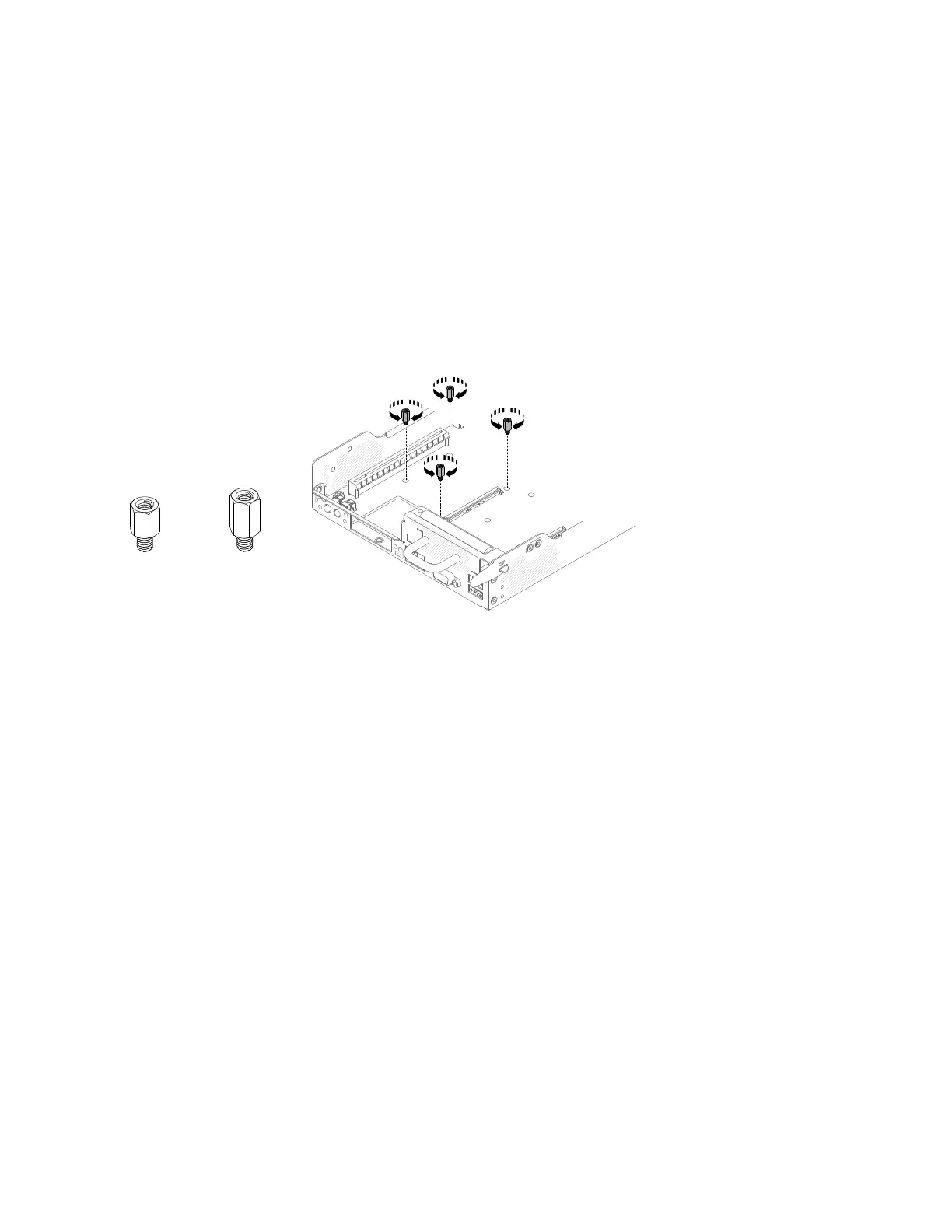

Figure54.ThestandoffsoftheLANMezzadapters
Readthesafetyinformationin“Safety”onpagevand“Installationguidelines”onpage75.
Ifyouarereplacingaservercomponentintheserver,youneedtoturnofftheserverandperipheraldevices
anddisconnectallexternalcables.
ToreplaceaLANMezzadapter,completethefollowingsteps.
Step1.Touchthestatic-protectivepackagethatcontainstheadaptertoanyunpaintedmetalsurfaceon
theserver;then,removetheadapterfromthepackage.
Step2.Installthe4standoffs.
Step3.InstalltheLANMezzadapter.
Step4.Tightenthe4screws.
