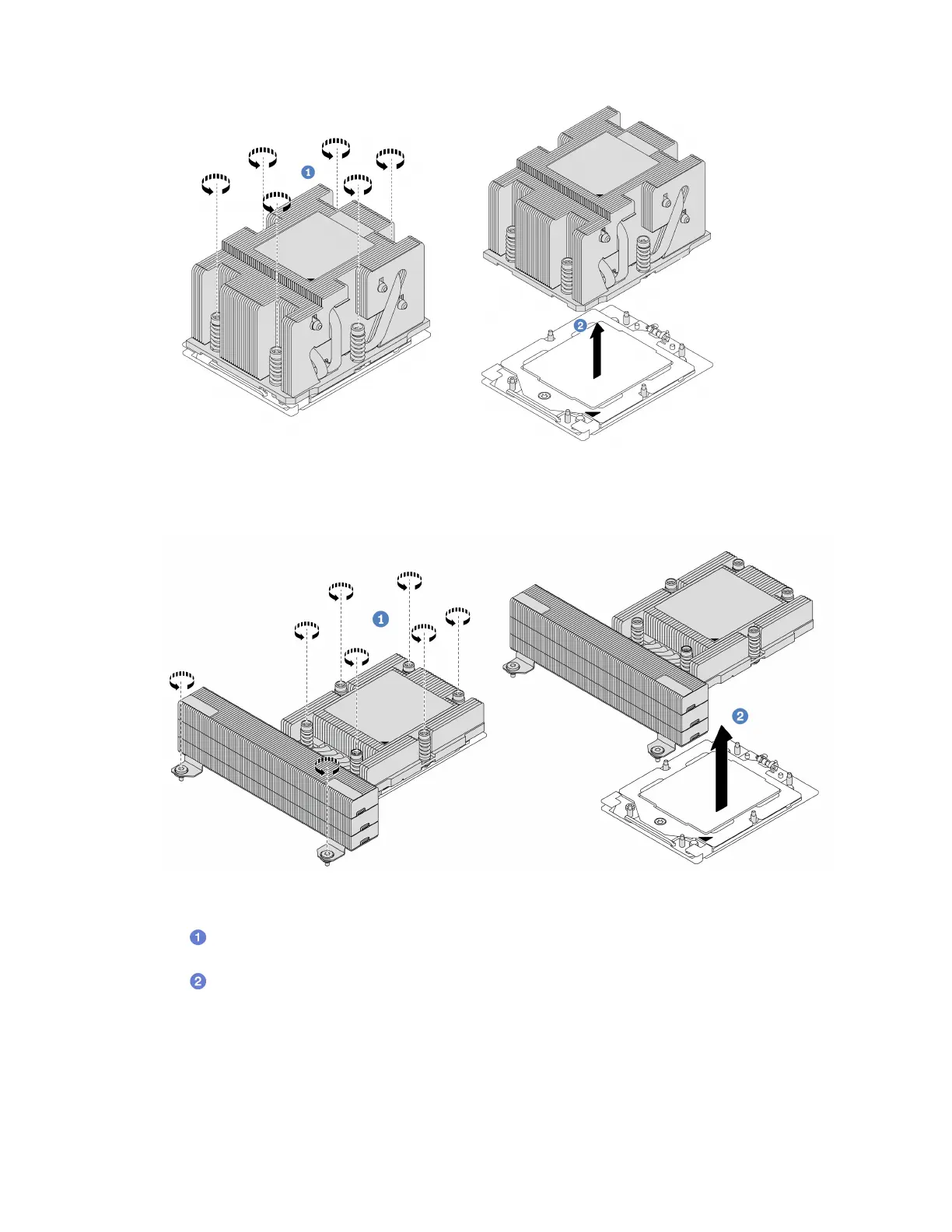

Figure 131. Removing a standard heat sink
Figure 132. Removing a performance heat sink
a. Fully loosen all the screws on the heat sink in the removal sequence shown on the heat-
sink label.
b.
Carefully lift the heat sink from the processor socket.
After you finish
• If you are replacing a heat sink, install a new heat sink. See
“Install a heat sink” on page 182.
• If you are replacing a processor, remove the processor. See
“Remove a processor” on page 179.
• If you are instructed to return the component or optional device, follow all packaging instructions, and use
any packaging materials for shipping that are supplied to you.
