Chapter 2. Server components
This section contains information about each of the components associated with the server.
Front view
The front view of the server varies by model. Depending on the model, your server might look slightly
different from the illustrations in this topic.
Refer to the following front views for different server models:
•
“Front view with eight 2.5-inch front drive bays (model 1)” on page 15
• “Front view with eight 2.5-inch front drive bays (model 2)” on page 16
• “Front view with sixteen 2.5-inch front drive bays (model 1)” on page 16
• “Front view with sixteen 2.5-inch front drive bays (model 2)” on page 17
• “Front view with sixteen 2.5-inch front drive bays (model 3)” on page 17
• “Front view with twenty-four 2.5-inch front drive bays” on page 18
• “Front view with 2.5-inch front drive bays (backplane-less)” on page 18
• “Front view with eight 3.5-inch front drive bays” on page 18
• “Front view with twelve 3.5-inch front drive bays” on page 19
• “Front view with 3.5-inch front drive bays (backplane-less)” on page 19

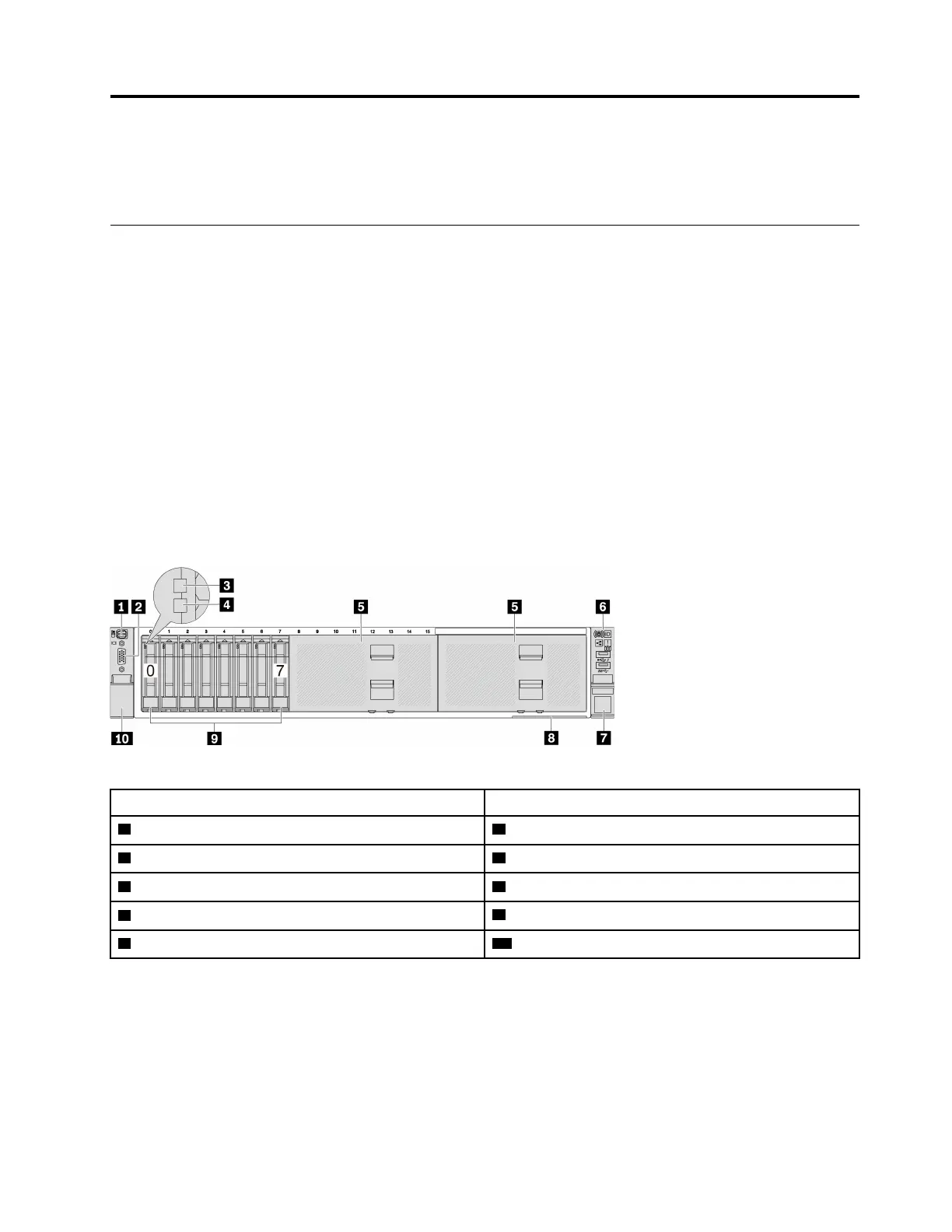

Front view with eight 2.5-inch front drive bays (model 1)
Table 2. Components on the front of the server
Callout Callout
1 “External diagnostics connector (optional)” on page 20 2 “VGA connector (optional)” on page 21
3 “Drive activity LED” on page 20 4 “Drive status LED” on page 20
5 “Drive bay fillers” on page 20
6 “Front I/O module (on rack latch)” on page 21
7 “Rack latch (right)” on page 21
8 “Pull-out information tab” on page 21
9 “Drive bays” on page 20
10 “Rack latch (left)” on page 21
© Copyright Lenovo 2022, 2023 15
