Table 11. Components on the front of server models (continued)
Callout Callout
5 “Pull-out information tab” on page 21 6 “Drive bay fillers” on page 20
7 “Rack latch (left)” on page 21
Front components overview
Drive bays
The drive bays on the front and rear of your server are designed for hot-swap drives. The number of the
installed drives in your server varies by model. When you install drives, follow the order of the drive bay
numbers.
Drive bay filler
The drive bay filler is used to cover a vacant drive bay. The EMI integrity and cooling of the server are
protected by having all drive bays occupied. The vacant drive bays must be occupied by drive bay fillers or
drive fillers.
Drive LEDs
Each hot-swap drive comes with an activity LED and status LED and the signals are controlled by the
backplanes. Different colors and speeds indicate different activities or status of the drive. The following
illustration shows the LEDs on a hard disk drive or solid-state drive.

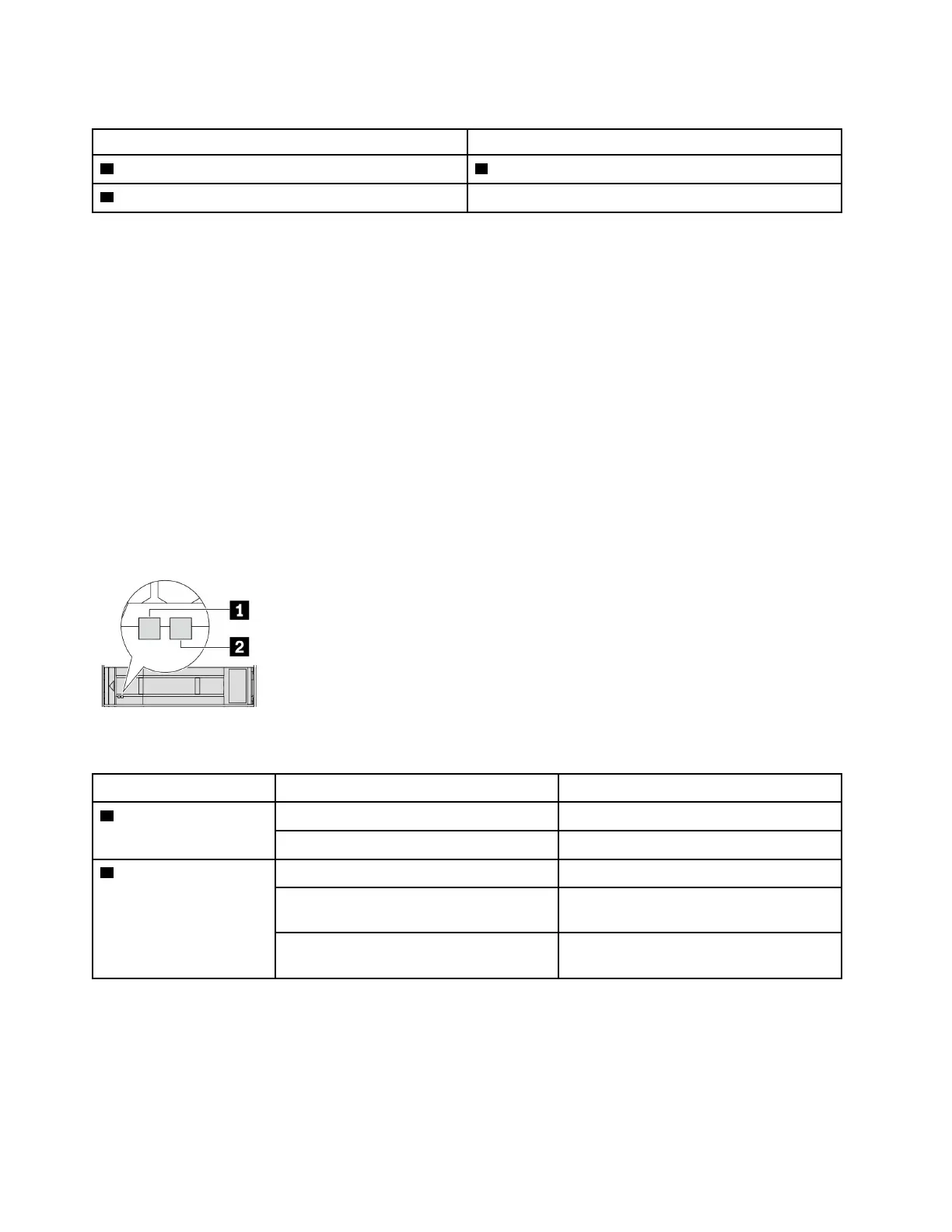

Figure 2. Drive LEDs
Drive LED Status Description
1 Drive activity LED (left) Solid green
The drive is powered but not active.
Blinking green The drive is active.
2 Drive status LED (right) Solid yellow
The drive has an error.
Blinking yellow (blinking slowly, about one
flash per second)
The drive is being rebuilt.
Blinking yellow (blinking rapidly, about four
flashes per second)
The drive is being identified.
External diagnostics connector
The connector is for connecting an external diagnostics handset. For more about its functions, see
“External
diagnostics handset” on page 484
.
20
ThinkSystem SR665 V3 User Guide
