Middle/Rear backplane cable routing

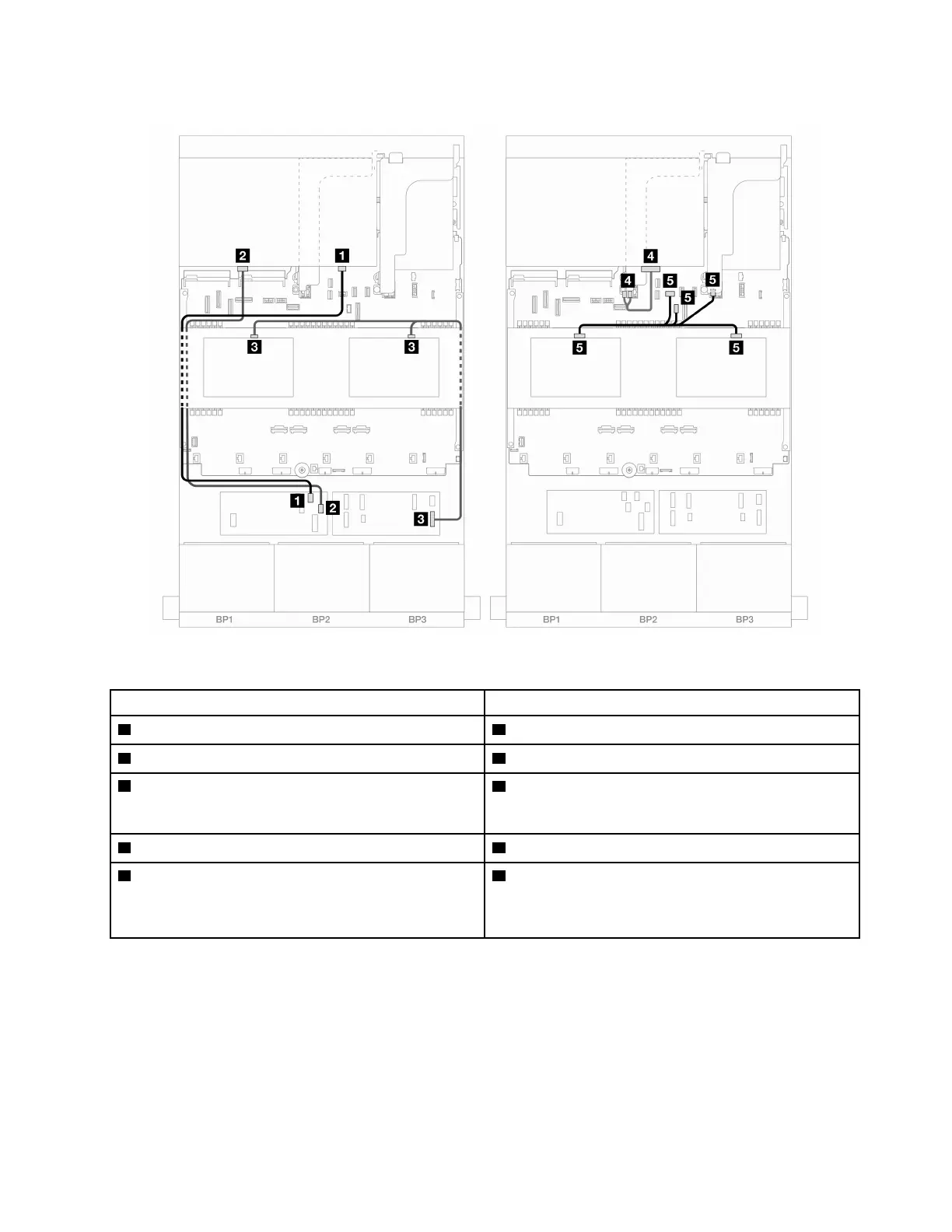

Figure 423. Middle/Rear backplane cable routing
From To
1  Backplane 4: SAS 0 1  CFF adapter: C2
2  Backplane 4: SAS 1 2  CFF adapter: C3
3
•  Backplane 5: SAS
•  Backplane 6: SAS
3  CFF expander: C3
4  Backplane 4: PWR 4  Riser 2: PWR1, PWR2
5
•  Backplane 5: PWR
•  Backplane 6: PWR
5
•  Onboard: rear backplane power
•  Onboard: rear backplane sideband
•  Riser 1: PWR
Three 8 x AnyBay backplanes
This section provides cable routing information for the server model with three 8 x 2.5-inch AnyBay front
backplanes.
To connect power cables for the front backplane(s), refer to
“Backplanes: server models with 2.5-inch front
drive bays” on page 312
.
