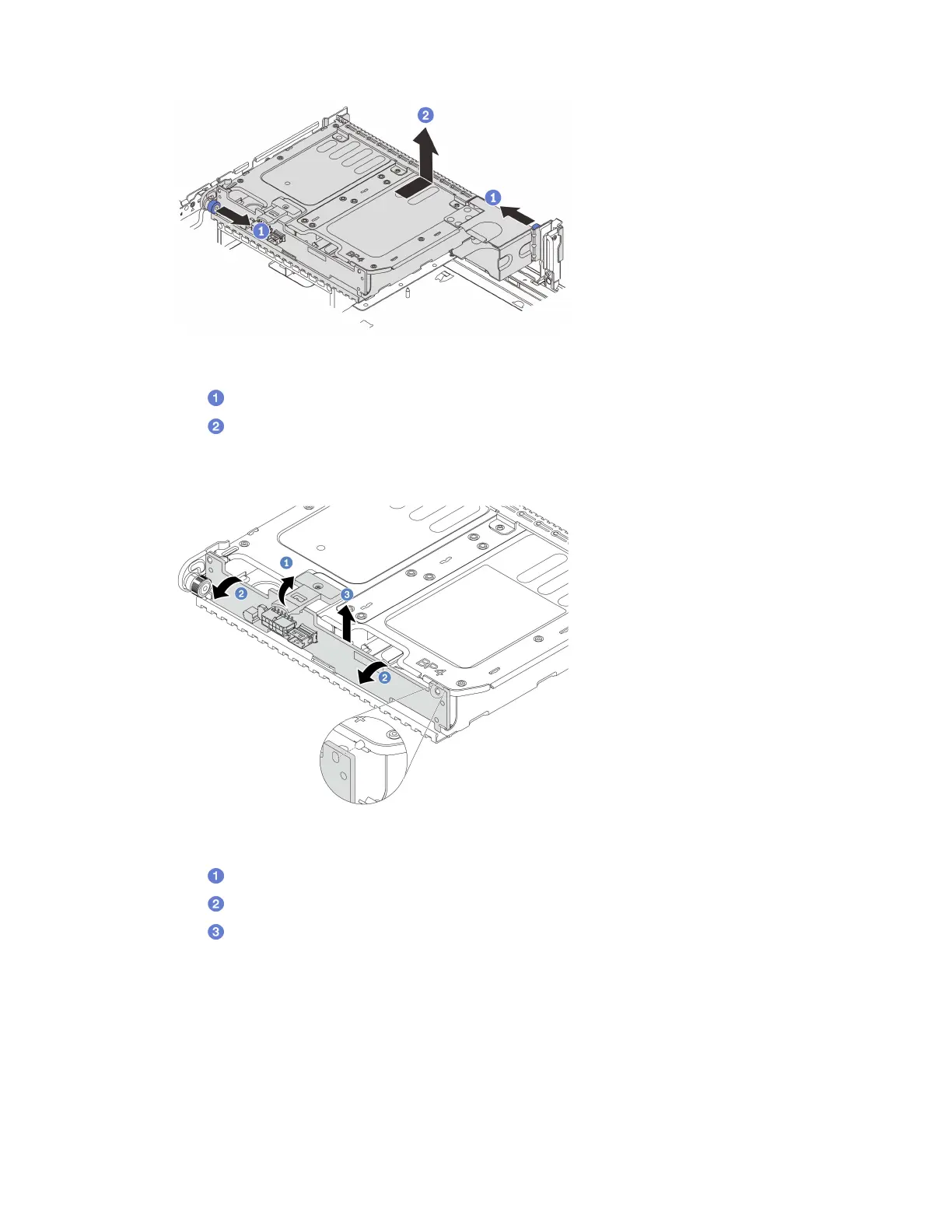

Figure 188. Removing the 2 x 3.5-inch rear drive cage
a. Twist and pull out the blue plungers.
b.
Slide the drive cage towards the rear of the chassis to release it, and lift the drive cage out
of the chassis.
Step 3. Remove the rear drive backplane.
Figure 189. Removing the 2 x 3.5-inch rear drive backplane
a. Open the release latch in the direction shown.
b.
Rotate the backplane from the top to disengage it from the pins on the drive cage.
c.
Carefully lift the backplane out of the drive cage.
After you finish
If you are instructed to return the component or optional device, follow all packaging instructions, and use
any packaging materials for shipping that are supplied to you.
Install the 2 x 3.5" drive backplane and drive cage
Follow instructions in this section to install the 3.5-inch 2-bay drive backplane and drive cage.
Chapter 5. Hardware replacement procedures 221
