Lenovo ThinkSystem SR665 V3 - Remove a Rear Riser Assembly

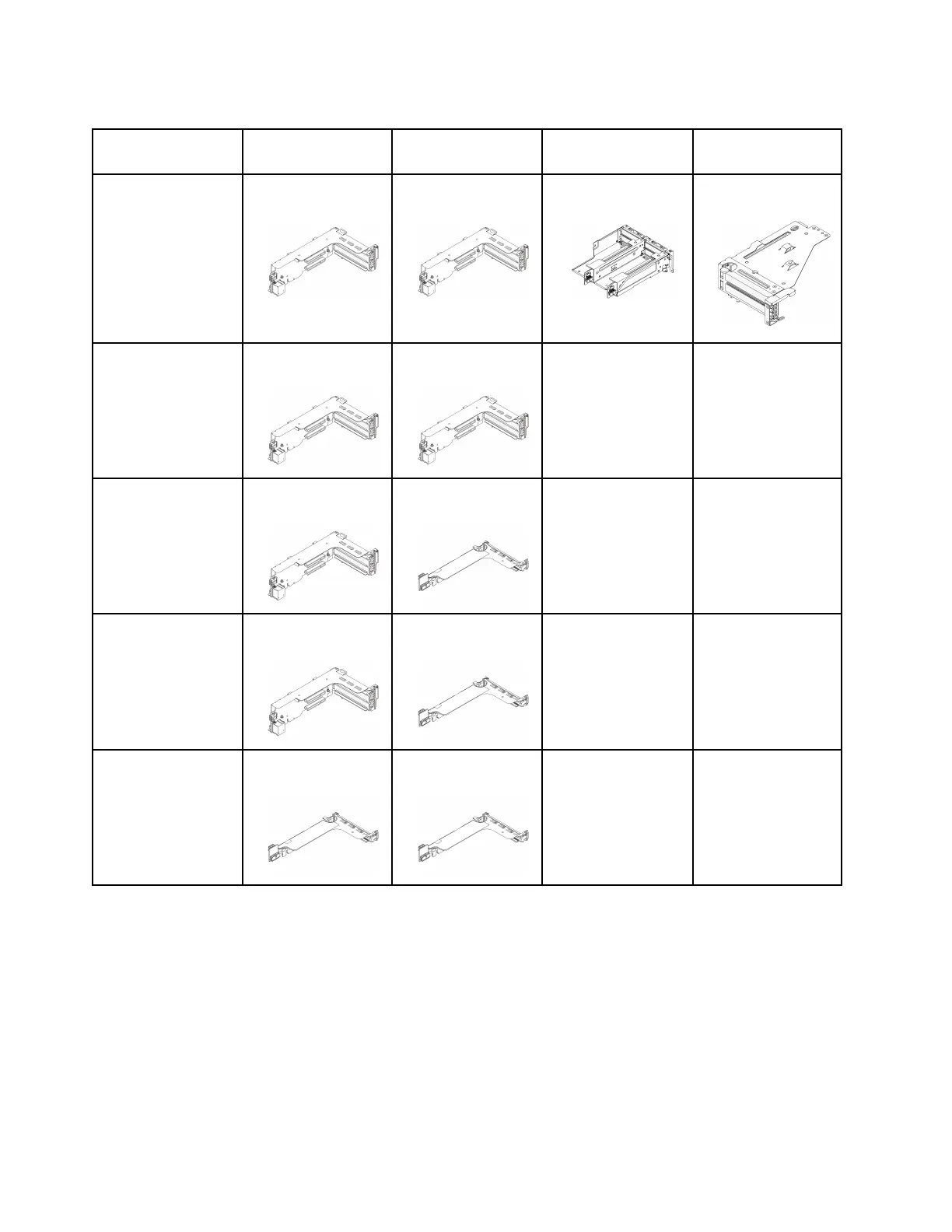

Table 26. Riser cages (continued)
Server
configuration
Riser 1 cage Riser 2 cage Riser 3 cage or 4LP
riser 3/4 cage
Riser 5 cage
Configuration with 12
PCIe slots
• 3-slot riser cage
• 3-slot riser cage
• 4LP riser 3/4 cage
LP: low profile
• Riser 5 cage
Configuration with a
4 x 2.5-inch rear
drive cage
• 3-slot riser cage
• 3-slot riser cage
N/A N/A
Configuration with an
8 x 2.5-inch rear
drive cage
• 3-slot riser cage
• 1-slot riser cage
N/A N/A
Configuration with a
2 x 3.5-inch rear
drive cage
• 3-slot riser cage
• 1-slot riser cage
N/A N/A
Configuration with a
4 x 3.5-inch rear
drive cage
• 1-slot riser cage
• 1-slot riser cage
N/A N/A
Remove a rear riser assembly
Follow instructions in this section to remove a rear riser assembly.
About this task
The server supports different types of riser cages (see
Table 26 “Riser cages” on page 231). This topic uses
the 3FH riser 1 cage and Gen 4 riser 3 cage as an example for illustration. The replacement procedure is the
same for other riser cages.
Attention:
232 ThinkSystem SR665 V3 User Guide
