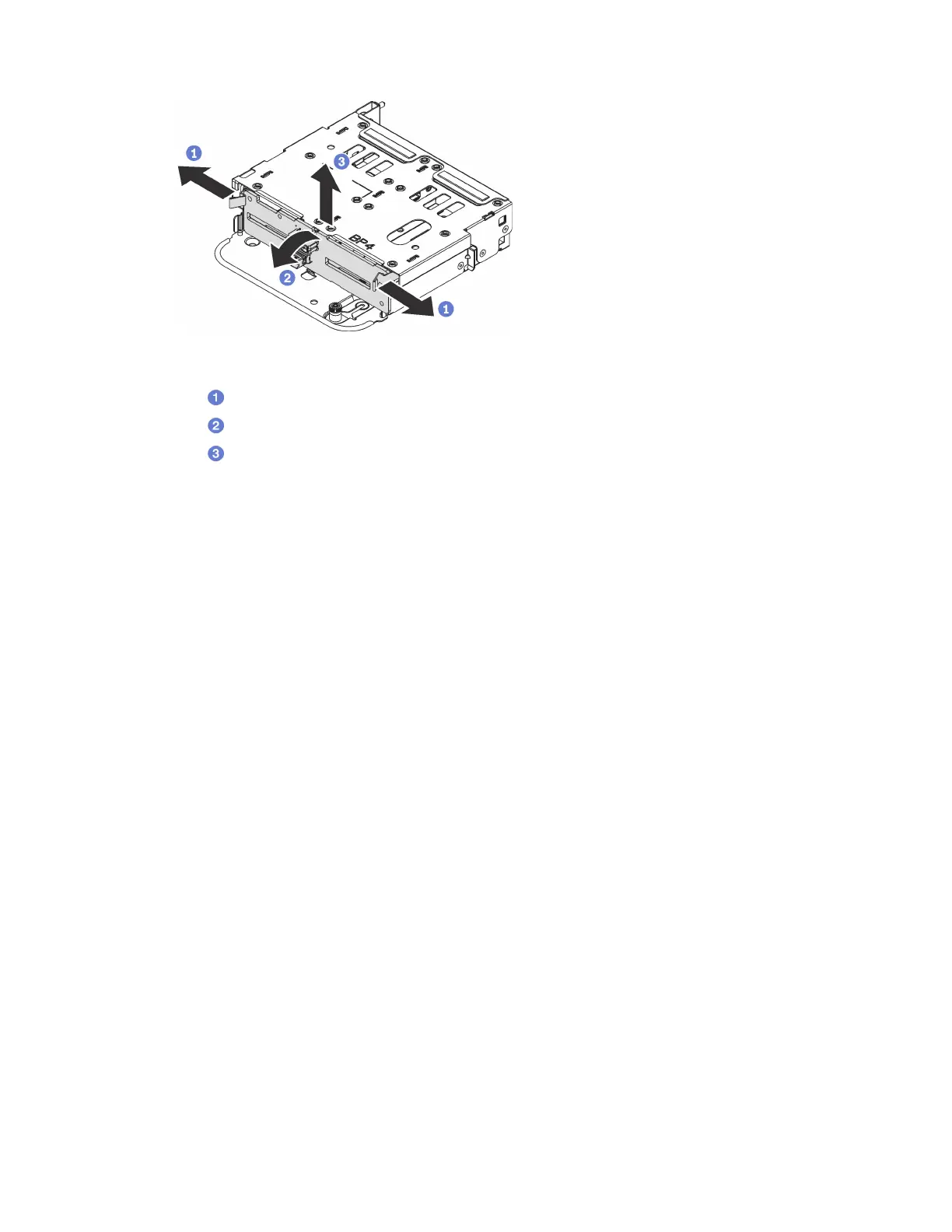

Figure 181. Removing the 4 x 2.5-inch rear drive backplane
a. Open the release latches in the direction shown.
b.
Rotate the backplane from the top to disengage it from the pins on the drive cage.
c.
Carefully lift the backplane out of the drive cage.
After you finish
If you are instructed to return the component or optional device, follow all packaging instructions, and use
any packaging materials for shipping that are supplied to you.
Install the 4 x 2.5" drive backplane and drive cage
Follow instructions in this section to install the rear 2.5-inch 4-bay drive backplane and drive cage.
About this task
Attention:
• Read
“Installation Guidelines” on page 47 and “Safety inspection checklist” on page 48 to ensure that you
work safely.
• Power off the server and peripheral devices and disconnect the power cords and all external cables. See
“Power off the server” on page 62.
• Prevent exposure to static electricity, which might lead to system halt and loss of data, by keeping static-
sensitive components in their static-protective packages until installation, and handling these devices with
an electrostatic-discharge wrist strap or other grounding system.
• The rear drive cage is supported on some server models with thermal requirements. See
“Thermal rules”
on page 59
to ensure that the server is under permitted ambient temperature and the correct heat sink
and system fans are used. If needed, replace your heat sink or system fan first.
– “Processor and heat sink replacement (trained technician only)” on page 175
– “System fan replacement” on page 264
Procedure
Step 1. Touch the static-protective package that contains the new part to any unpainted surface on the
outside of the server. Then, take the new part out of the package and place it on a static-protective
surface.
Step 2. Install the drive backplane into the rear drive cage.
Chapter 5. Hardware replacement procedures 215
