Note: Ensure that the OCP module is fully seated and the thumbscrew is securely tightened.
Otherwise, the OCP module will not get full connection and may not function.

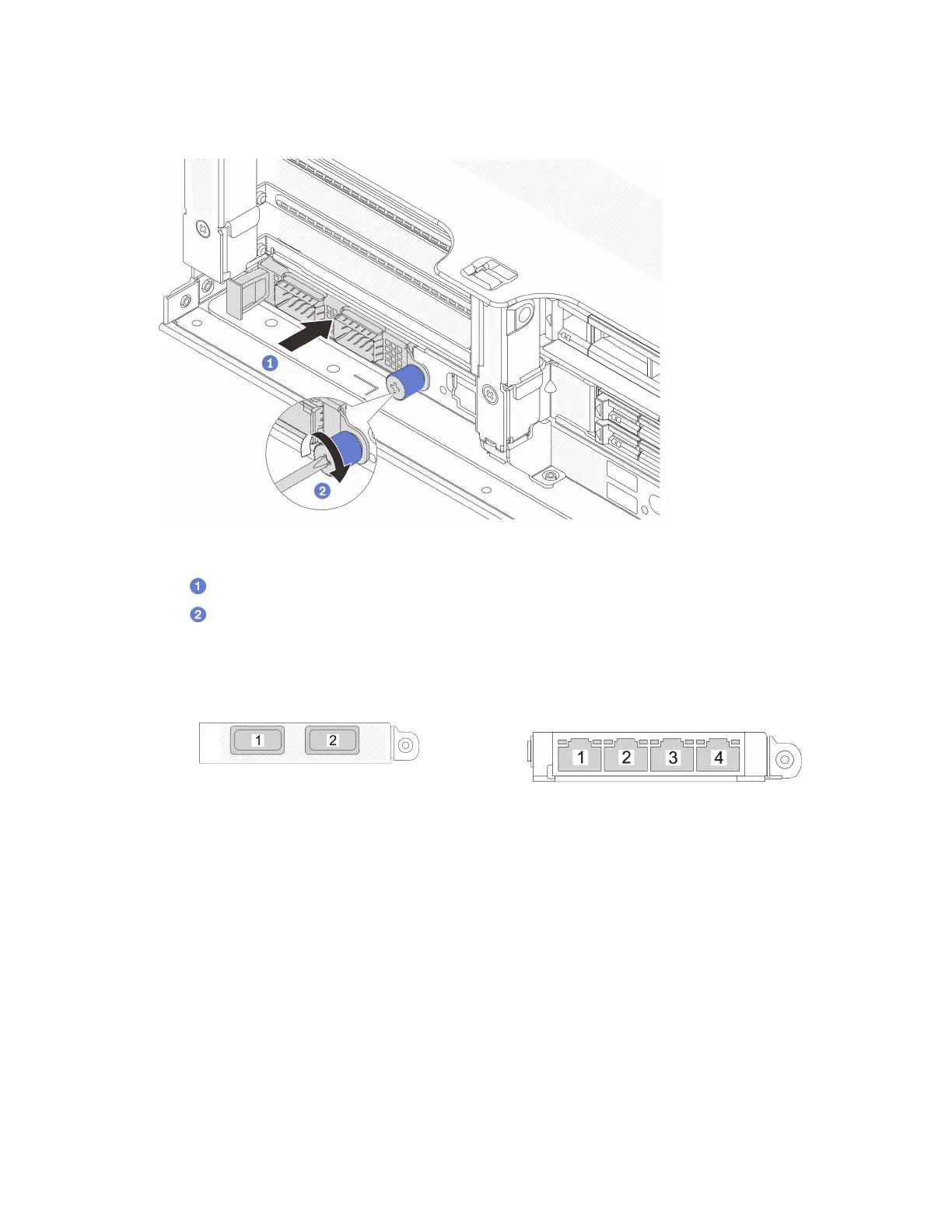

Figure 198. Installing the rear OCP module
a. Push the OCP module into the slot until it is fully seated.
b.
Tighten the thumbscrew to secure the OCP module. Use a screwdriver if needed.
Notes:
FFiigguurree 119999.. OOCCPP mmoodduullee ((ttwwoo ccoonnnneeccttoorrss))
FFiigguurree 220000.. OOCCPP mmoodduullee ((ffoouurr ccoonnnneeccttoorrss))
• The OCP module provides two or four extra Ethernet connectors for network connections.
• By default, one of the Ethernet connectors on the OCP module can also function as a
management connector using the shared management capacity.
After you finish
Complete the parts replacement. See
“Complete the parts replacement” on page 279.
Demo video
Watch the procedure on YouTube
230
ThinkSystem SR665 V3 User Guide
