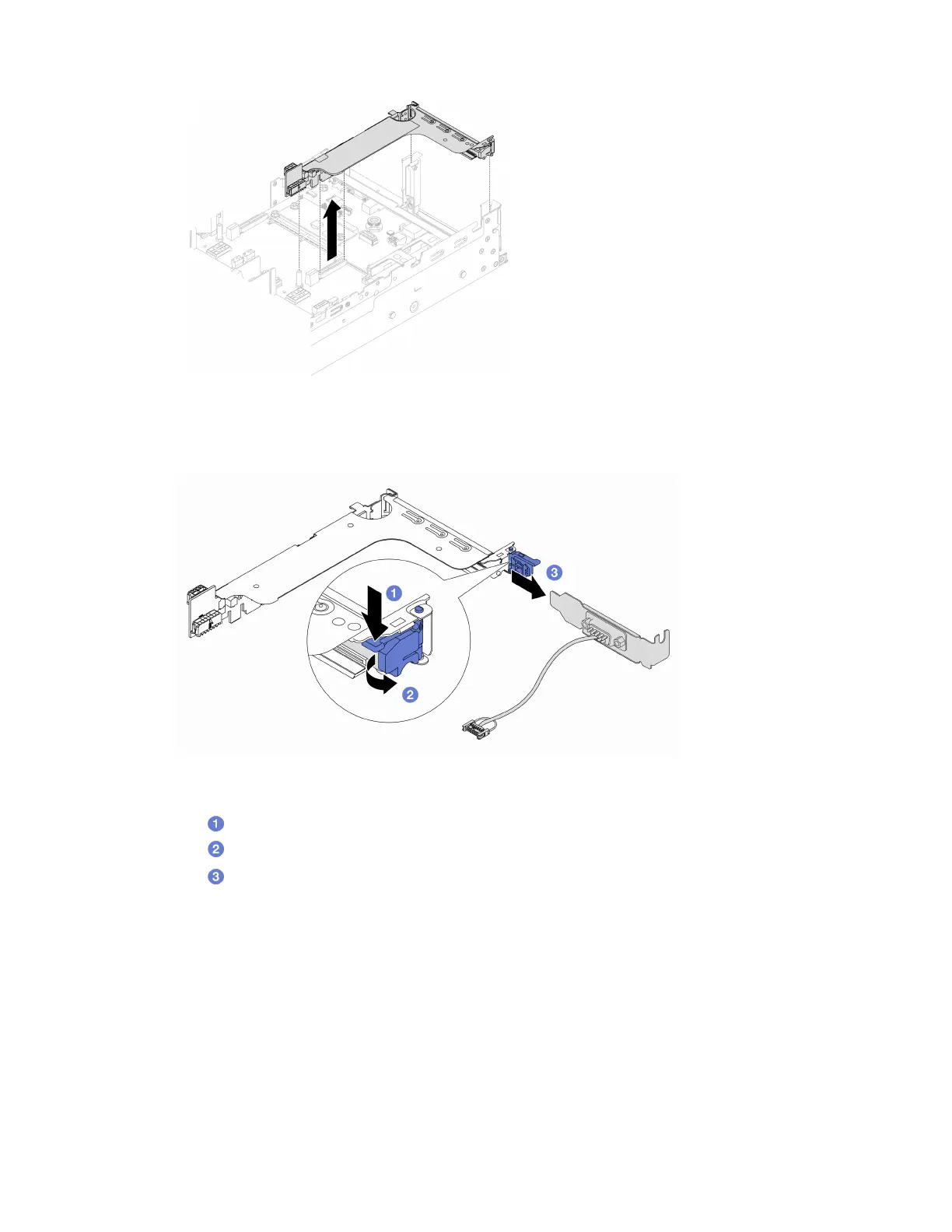

Figure 240. Removing the riser bracket
Step 5. Remove the serial port module out of the riser bracket.
Figure 241. Removing the serial port module
a.
Press down the bracket latch.
b.
Open the latch.
c.
Slide the serial port module out of the riser bracket.
Step 6. (Optional) If you need to replace the serial port bracket, use a 5 mm wrench to disassemble the
serial port cable from the bracket.
