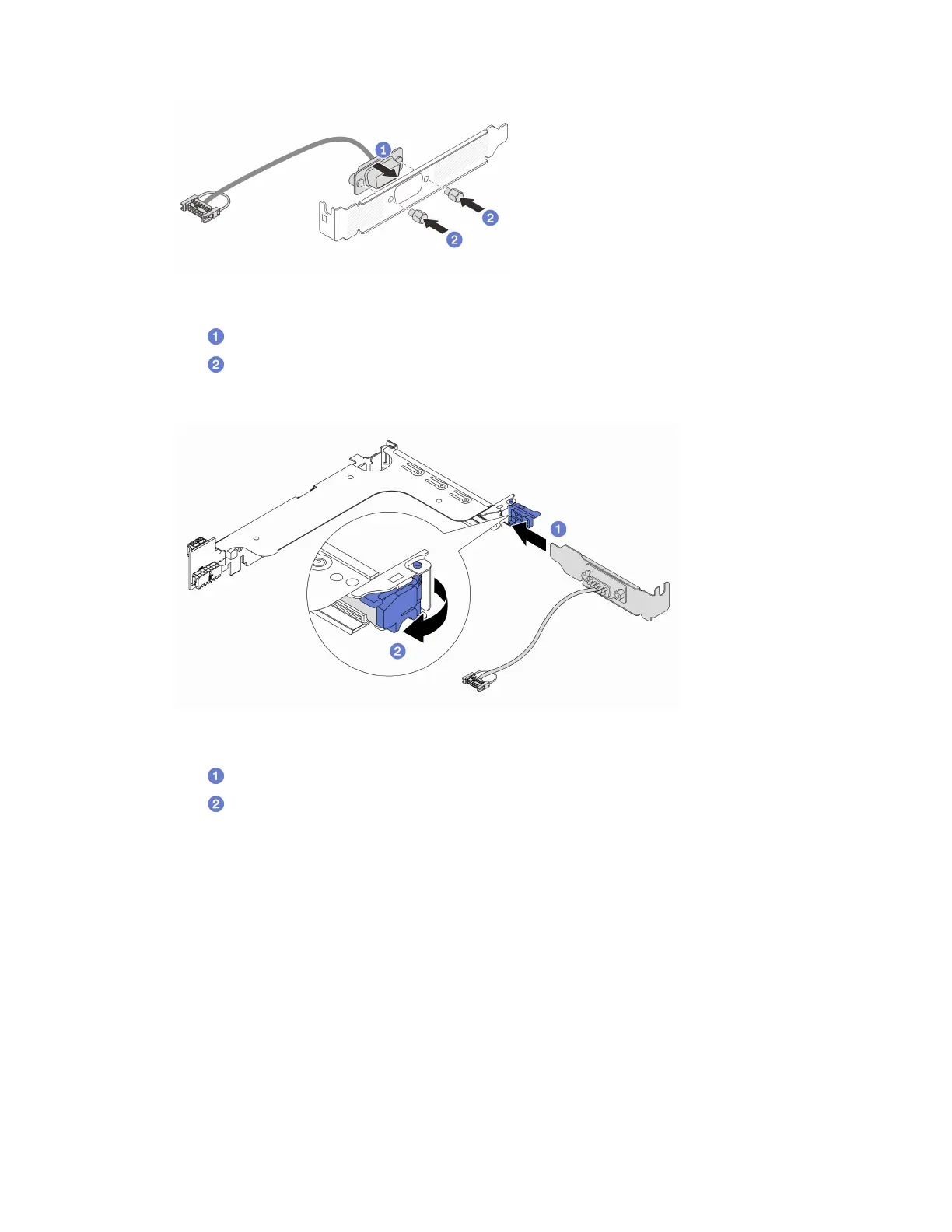

Figure 243. Assembling the serial port module
a.
Align the connector of the serial port cable with the holes in the bracket.
b.
Install the two screws to secure the cable connector into the bracket.
Step 3. Install the serial port module to the riser bracket.
Figure 244. Installing the serial port module
a.
Align the serial port module with the riser bracket and insert it into the riser bracket.
b.
Close the bracket latch to secure the serial port module.
Step 4. Install the riser assembly back to the server.
Chapter 5. Hardware replacement procedures 275
