Riser card 3 (x8/x8 Gen 5 PCIe) signal cable connection

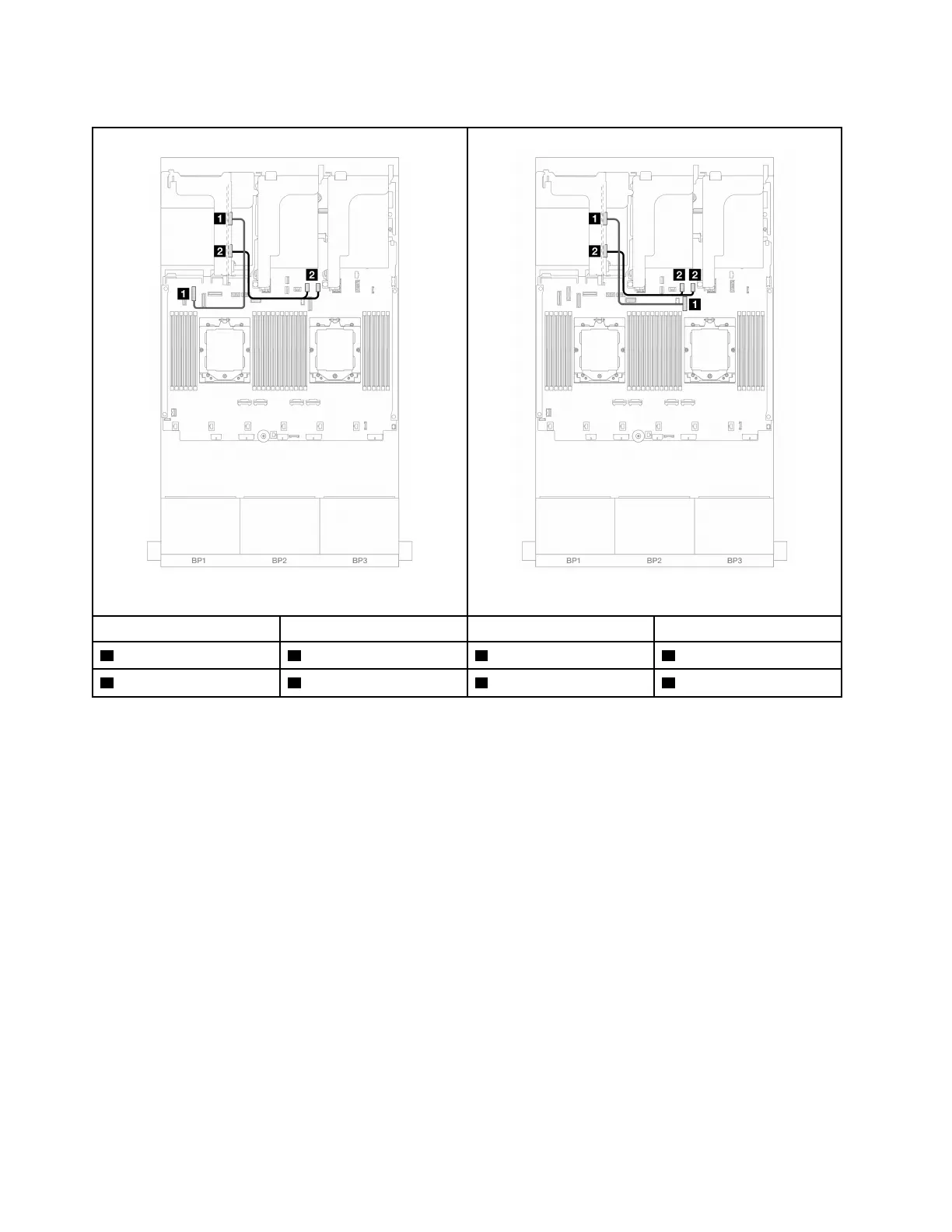

Figure 285. Cable routing when two processors installed Figure 286. Cable routing when one processor installed
From To From To
1 MCIO 1 on the riser card 1 Onboard: PCIe 6 1 MCIO 1 on the riser card 1 Onboard: PCIe 9
2 MCIO 3 on the riser card 2 Onboard: PCIe 10, 11 2 MCIO 3 on the riser card 2 Onboard: PCIe 10, 11
304 ThinkSystem SR665 V3 User Guide
