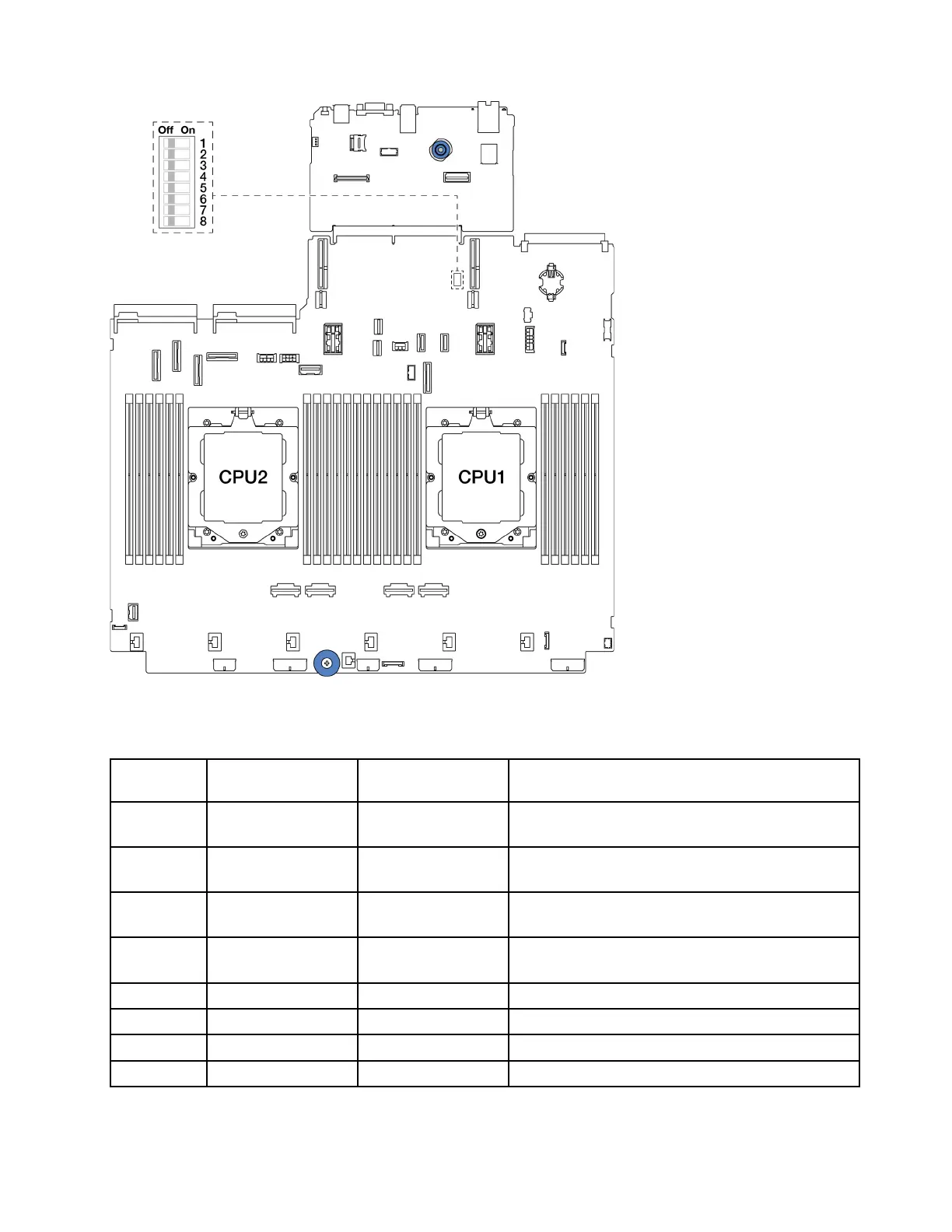

Figure 12. Switch block on the system board assembly
Table 21. Switch block on the system board assembly
Switch
number Switch name
Default position Description
SW5-1 Force BMC CPU
reset
Off Forces BMC and CPU into reset when changing it to
the ON position.
SW5-2 Clear CMOS Off Clears the real-time clock (RTC) registry when
changing it to the ON position.
SW5-3 Password override Off Overrides the power-on password when changing it
to the ON position.
SW5-4 FPGA reset Off Forces FPGA into reset when changing it to the ON
position.
SW5-5
Reserved
Off
Reserved
SW5-6 Reserved Off Reserved
SW5-7 Reserved Off Reserved
SW5-8 Reserved Off Reserved
Chapter 2. Server components 33
