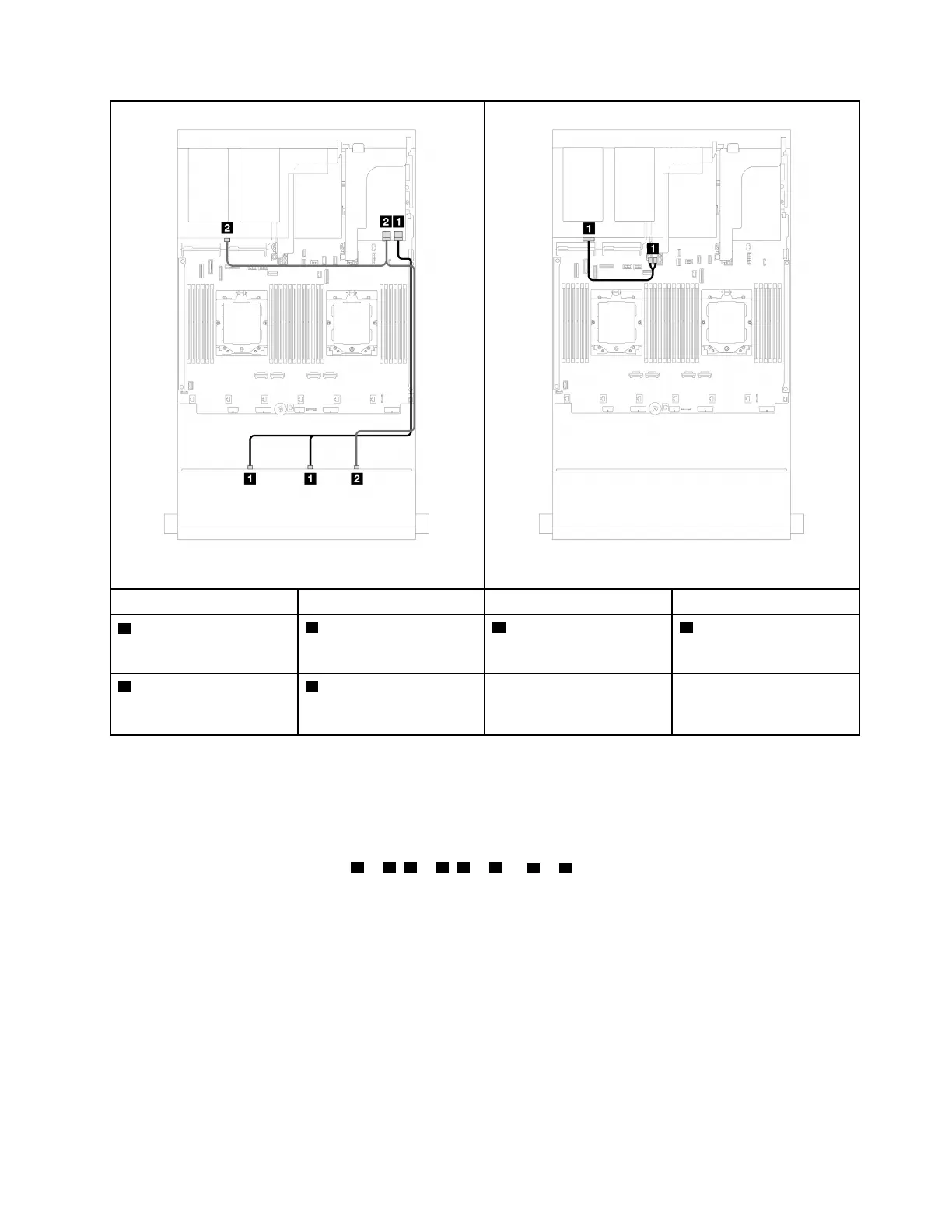

Figure 486. Front/Rear backplane signal cable routing Figure 487. Rear backplane power cable routing
From To From To
1 Backplane 1: SAS 0,
SAS 1
1 16i adapter
• Gen 4: C0
• Gen 3: C0C1
1 Backplane 4: PWR 1 Riser 2: PWR1, PWR2
2
• Backplane 1: SAS 2
• Backplane 4: SAS
2 16i adapter
• Gen 4: C1
• Gen 3: C2C3
12 x 3.5" SAS/SATA + 4 x 2.5" SAS/SATA
This topic provides cable routing information for the server model with one 12 x 3.5-inch SAS/SATA front
backplane and one 4 x 2.5-inch SAS/SATA rear backplane.
16i RAID/HBA adapter
Connections between connectors:
1 ↔ 1 , 2 ↔ 2 , 3 ↔ 3 , ... n ↔ n
Chapter 6
. Internal cable routing 445
