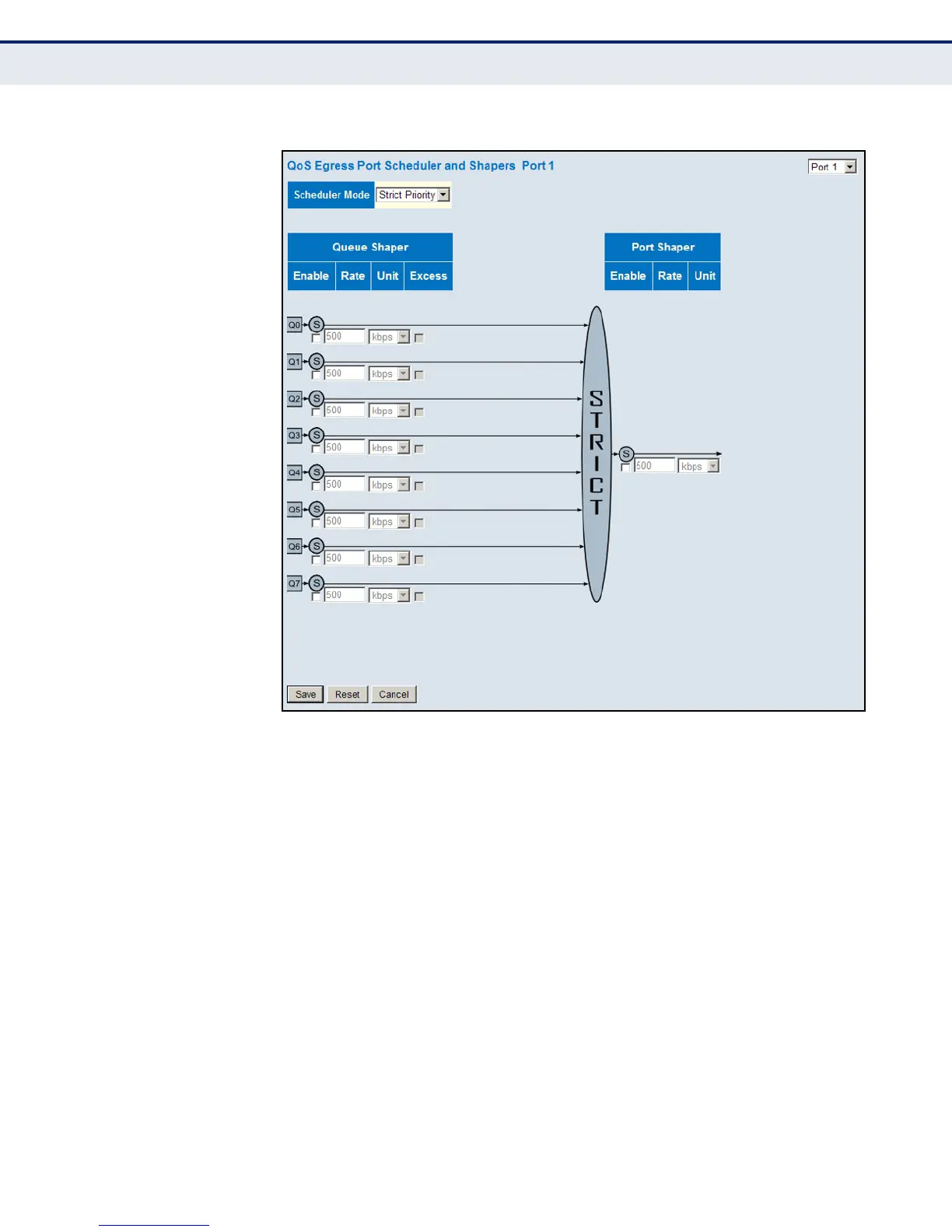

Figure 76: Configuring Egress Port Schedulers and Shapers
CONFIGURING EGRESS
PORT SHAPER
Use the QoS Egress Port Shapers page to show an overview of the QoS
Egress Port Shapers, including the rate for each queue and port. Click on
any of the entries in the Port field to configure egress queue mode, queue
shaper (rate and access to excess bandwidth), and port shaper
PATH
Advanced Configuration, QoS, Port Shaper
PARAMETERS
These parameters are displayed:
Displaying QoS Egress Port Schedulers
◆ Port – Port identifier.
◆ Shapers – Shows the queue shaper rate and port shaper rate.
