C
HAPTER
4
| Configuring the Switch
Configuring Remote Port Mirroring
– 205 –
■
Tx only - Frames transmitted from this port are mirrored to the
destination port.
◆ Destination - Traffic from all configured source ports is mirrored to
this port. (Default: Disabled)
WEB INTERFACE
To configure local port mirroring:
1. Click Basic/Advanced Configuration, Mirroring & RSPAN.
2. Set the Mode to Enabled, and the Type to Mirror.
3. Set the type of traffic to mirror on the Source ports to be monitored.
4. Select to the Destination port to which all mirrored traffic will be sent.
5. Click Save.

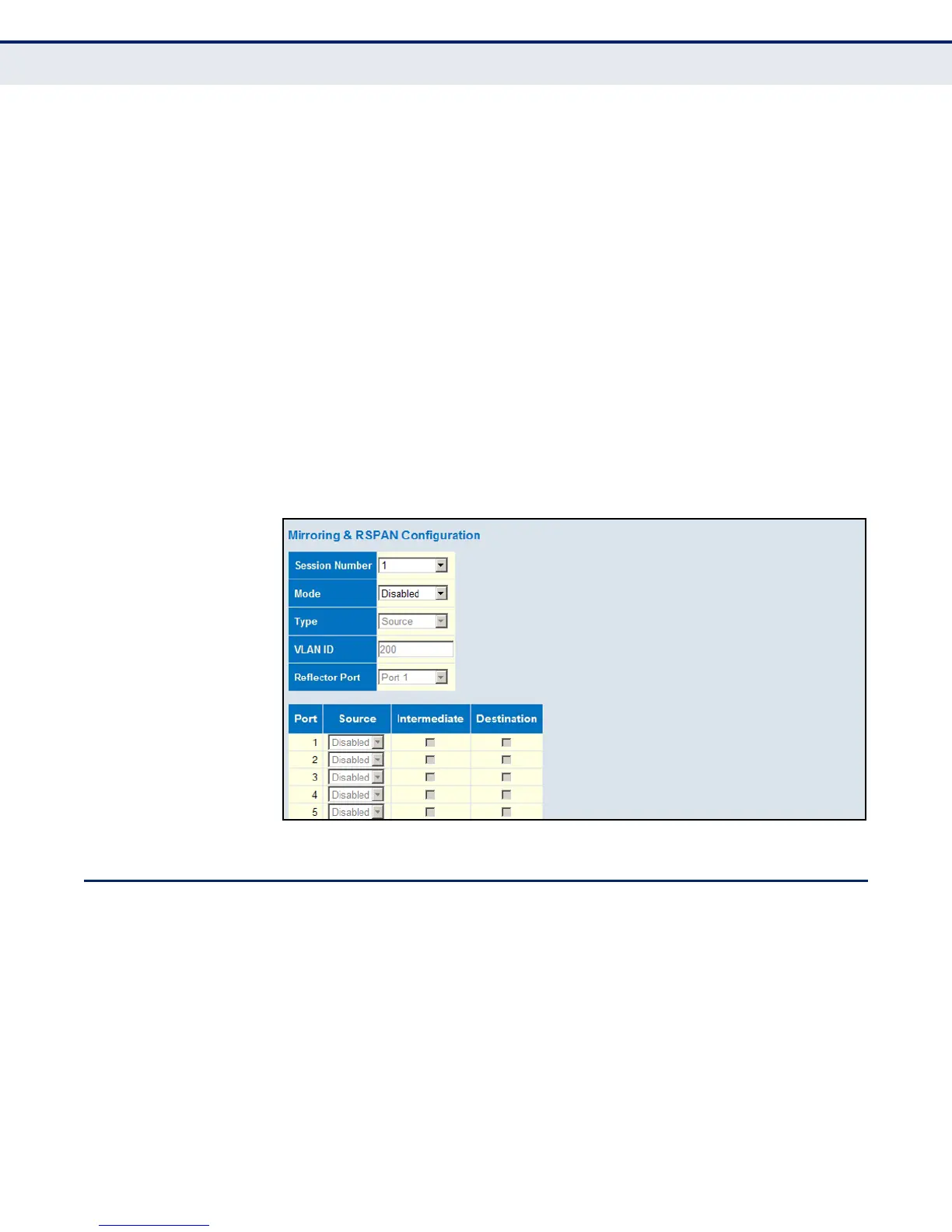

Figure 89: Mirror Configuration
CONFIGURING REMOTE PORT MIRRORING
Use the Mirroring & RSPAN Configuration page to mirror traffic from remote
switches for analysis at a destination port on the local switch. This feature,
also called Remote Switched Port Analyzer (RSPAN), carries traffic
generated on the specified source ports over a user-specified VLAN
dedicated to that RSPAN session in all participating switches. Monitored
traffic from one or more sources is copied onto the RSPAN VLAN through
IEEE 802.1Q trunk or hybrid ports that carry it to any RSPAN destination
port monitoring the RSPAN VLAN as shown in the figure below.
