C HAPTER 5 | Monitoring the Switch
Showing MLD Snooping Information
– 263 –
WEB INTERFACE
To display MLD snooping status information, click Monitor, MLD Snooping,
Status.

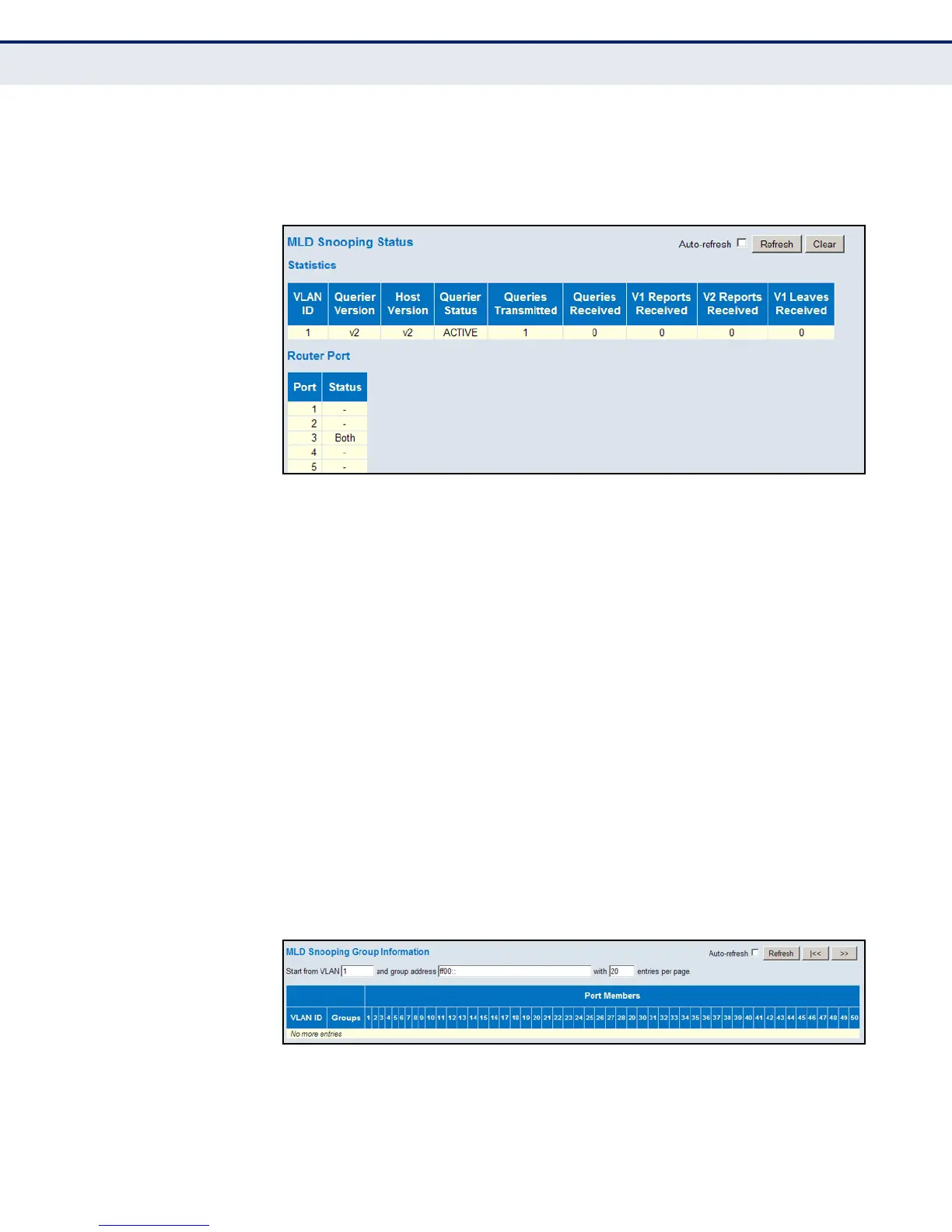

Figure 134: MLD Snooping Status
SHOWING MLD
SNOOPING GROUP
INFORMATION
Use the MLD Snooping Group Information page to display the port
members of each service group.
PATH
Monitor, IPMC, MLD Snooping, Group Information
PARAMETERS
These parameters are displayed:
◆ VLAN ID – VLAN Identifier.
◆ Groups – The IP address for a specific multicast service.
◆ Port Members – The ports assigned to the listed VLAN which
propagate a specific multicast service.
WEB INTERFACE
To display the port members of each service group, click Monitor, MLD
Snooping, Group Information.
Figure 135: MLD Snooping Group Information
