C
HAPTER
4
| Configuring the Switch
Configuring Remote Port Mirroring
– 208 –
◆ Intermediate – Uplink ports to intermediate switches.
MAC Table learning must be disabled on intermediate ports.
◆ Destination Port – Specifies the destination port to monitor the traffic
mirrored from source ports. A destination port can be configured on
more than one switch for the same session. Also note that a destination
port can still send and receive switched traffic, and participate in any
Layer 2 protocols to which it has been assigned.
WEB INTERFACE
To configure remote port mirroring for an RSPAN source switch:
1. Click Basic/Advanced Configuration, Mirroring & RSPAN.
2. Set the Mode to Enabled, and the Type to Source.
3. Set the Remote VLAN ID, the Reflector port connecting to the RSPAN
VLAN, the type of traffic to mirror from the Source ports, and the
intermediate ports through which all mirrored traffic will be forwarded
to other switches.
4. Click Save.

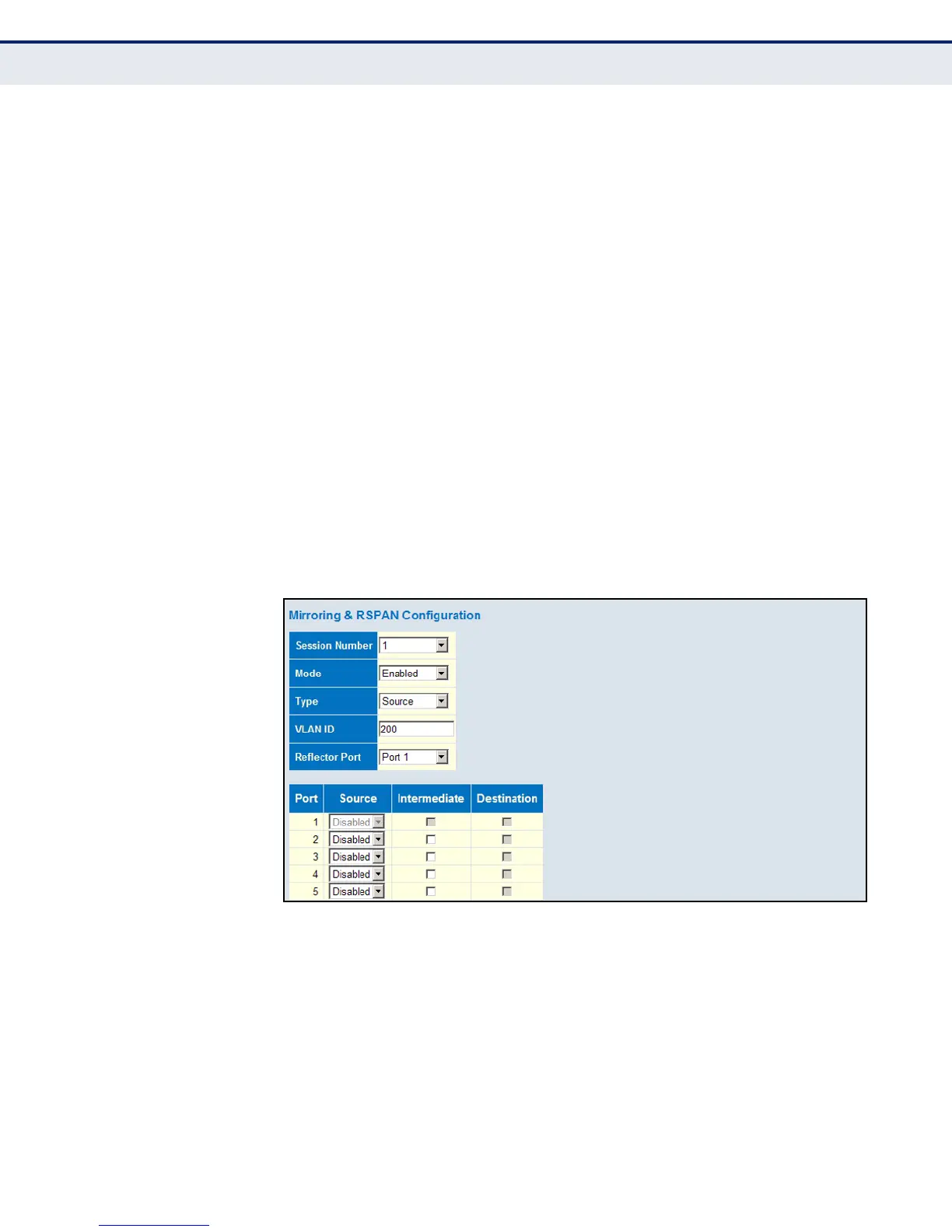

Figure 91: Mirror Configuration (Source)
To configure remote port mirroring for an RSPAN intermediate switch:
1. Click Basic/Advanced Configuration, Mirroring & RSPAN.
2. Set the Mode to Enabled, and the Type to Intermediate.
3. Select the intermediate ports through which all mirrored traffic will be
forwarded to other switches.
4. Click Save.
