C
HAPTER
4
| Configuring the Switch
Configuring Security
– 83 –
◆ Falling Threshold – If the current value is less than the falling
threshold, and the last sample value was greater than this threshold,
then an alarm will be generated. After a falling event has been
generated, another such event will not be generated until the sampled
value has risen above the falling threshold, reaches the rising
threshold, and again moves back down to the failing threshold.
(Range: -2147483647 to 2147483647)
◆ Falling Index – The index of the event to use if an alarm is triggered
by monitored variables crossing below the falling threshold. If there is
no corresponding entry in the event control table, then no event will be
generated. (Range: 1-65535)
WEB INTERFACE
To configure an RMON alarm:
1. Click Advanced Configuration, Security, Switch, RMON, Alarm.
2. Click Add New Entry.
3. Enter an index number, the polling interval, the MIB object to be polled
(etherStatsEntry.n.n), the sample type, the alarm startup type, the
thresholds, and the event to trigger.
4. Click Save.

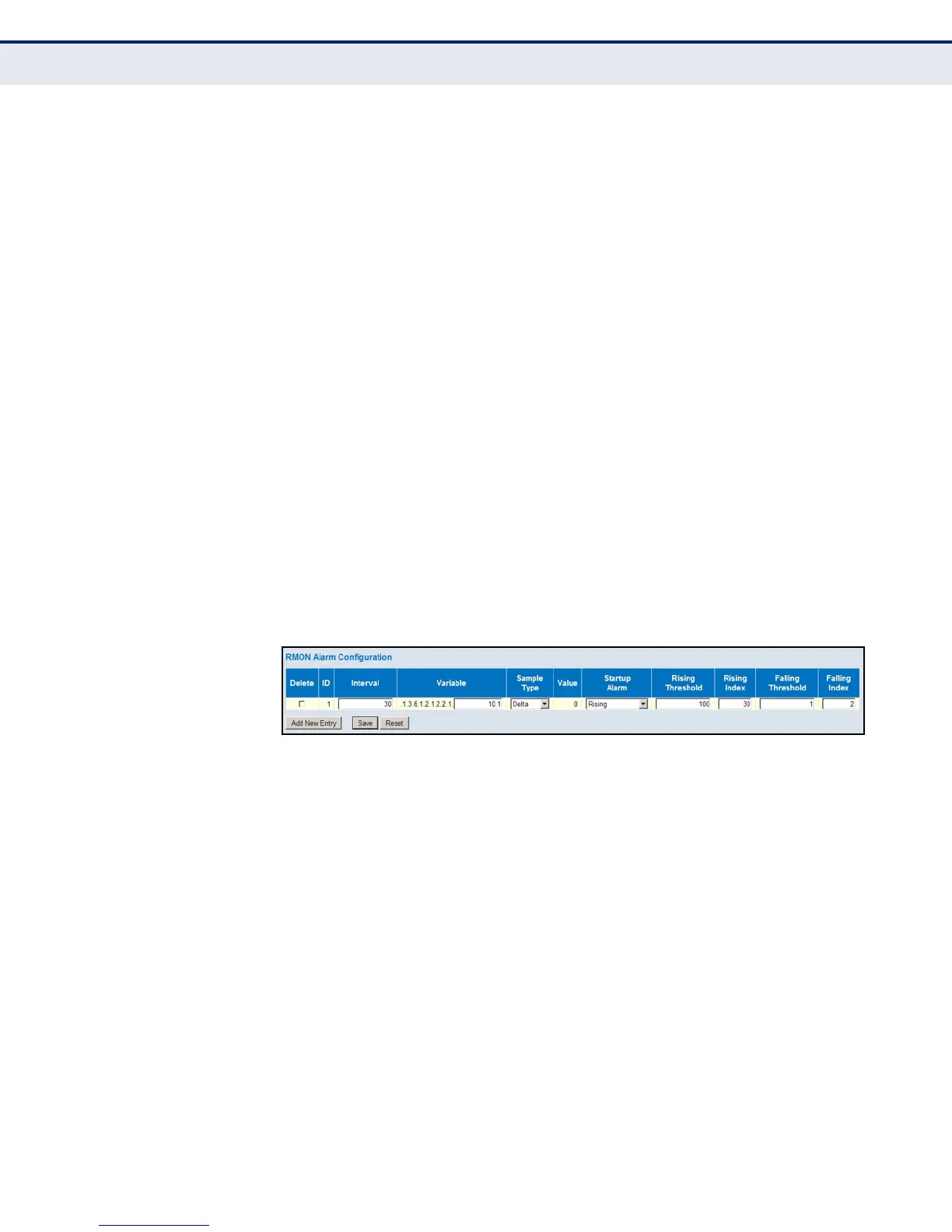

Figure 27: RMON Alarm Configuration
CONFIGURING RMON EVENTS
Use the RMON Event Configuration page to set the action to take when an
alarm is triggered. The response can include logging the alarm or sending a
message to a trap manager. Alarms and corresponding events provide a
way of immediately responding to critical network problems.
PATH
Advanced Configuration, Security, RMON, Event
PARAMETERS
The following parameters are displayed:
◆ ID – Index to this entry. (Range: 1-65535)
◆ Desc – A comment that describes this event. (Range: 0-127
characters)
