Configuring Port Remarking Mode
◆ Tag Remarking Mode – Configures the tag remarking mode used by
this port:
■
Classified – Uses classified PCP/DEI values.
■
Default – Uses default PCP/DEI values.
(Range: PCP – 0-7, Default: 0; DEI – 0-1, Default: 0)
■
Mapped – Controls the mapping of the classified QoS class values
and DP levels (drop precedence) to (PCP/DEI) values.
■
QoS class/DP level – Shows the mapping options for QoS class
values and DP levels (drop precedence).
■
PCP – Remarks matching egress frames with the specified
Priority Code Point (or User Priority) value. (Range: 0-7;
Default: 0)
■
DEI – Remarks matching egress frames with the specified Drop
Eligible Indicator. (Range: 0-1; Default: 0)
WEB INTERFACE
To show the QoS Egress Port Tag Remarking mode used for each port:
1. Click Advanced Configuration, QoS, Port Tag Remarking.
2. Click on any enter under the Port field to configure the Port Tag
Remarking mode.

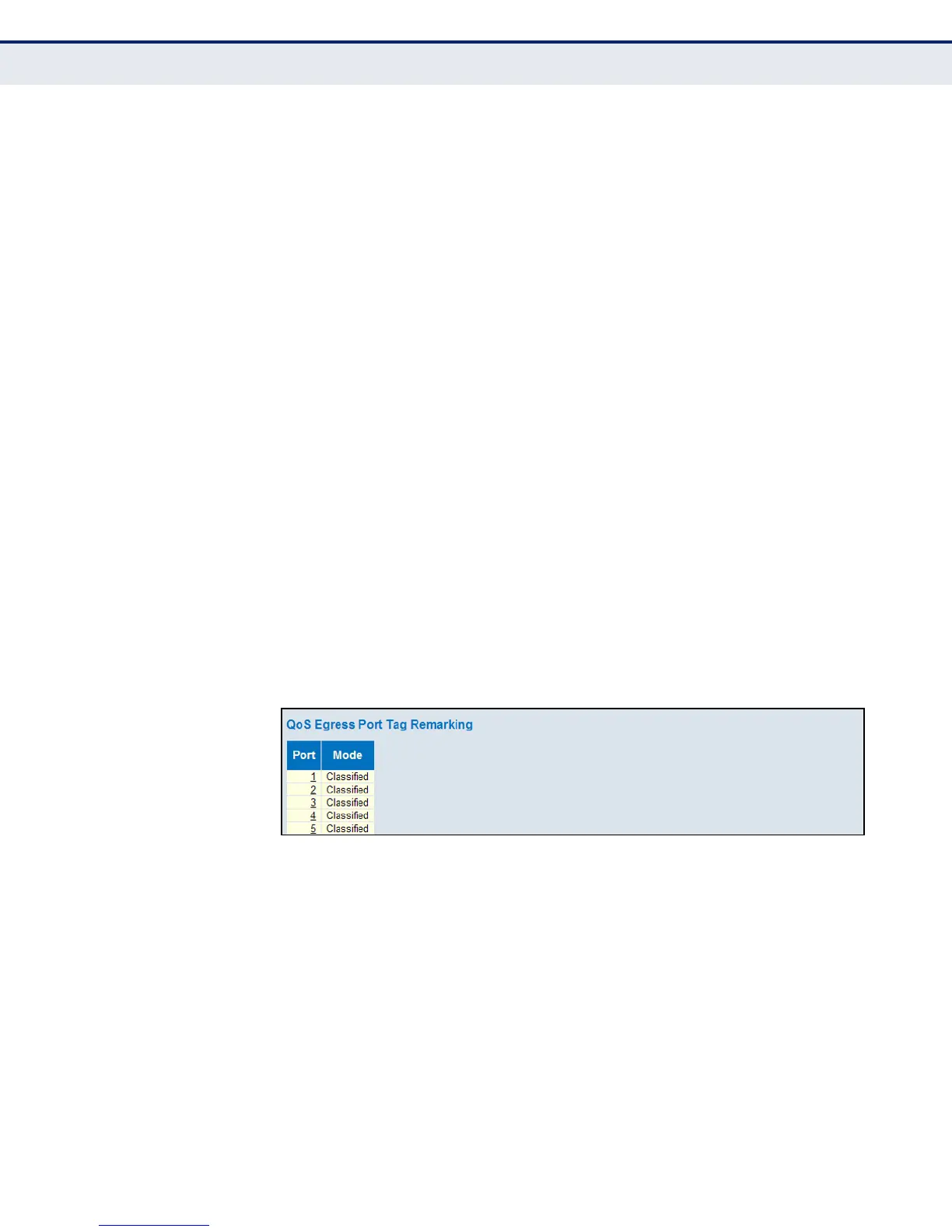

Figure 78: Displaying Port Tag Remarking Mode
To configure the tag remarking mode:
1. Click Configuration, QoS, Port Tag Remarking.
2. Click on any of the entries in the Port field.
3. Set the tag remarking mode and any parameters associated with the
selected mode.
4. Click Save.
