10.6.8 Multistate Maps
Multistate data points have a descriptive set of state texts for their state IDs. To manage
those state IDs and state texts among many multistate data points, they refer to multistate
maps. Some technologies have a fixed set of such multistate maps others have freely
configurable multistate maps (e.g, user registers). Editing a multistate map affects all
multistate data points which are using that particular map. It is not necessary to edit each
data point individually.
To Edit a Multistate Map
1. Click on the Configure button in the Current State Map property of a multistate
data point. This opens the multistate map manager as shown in Figure 12.

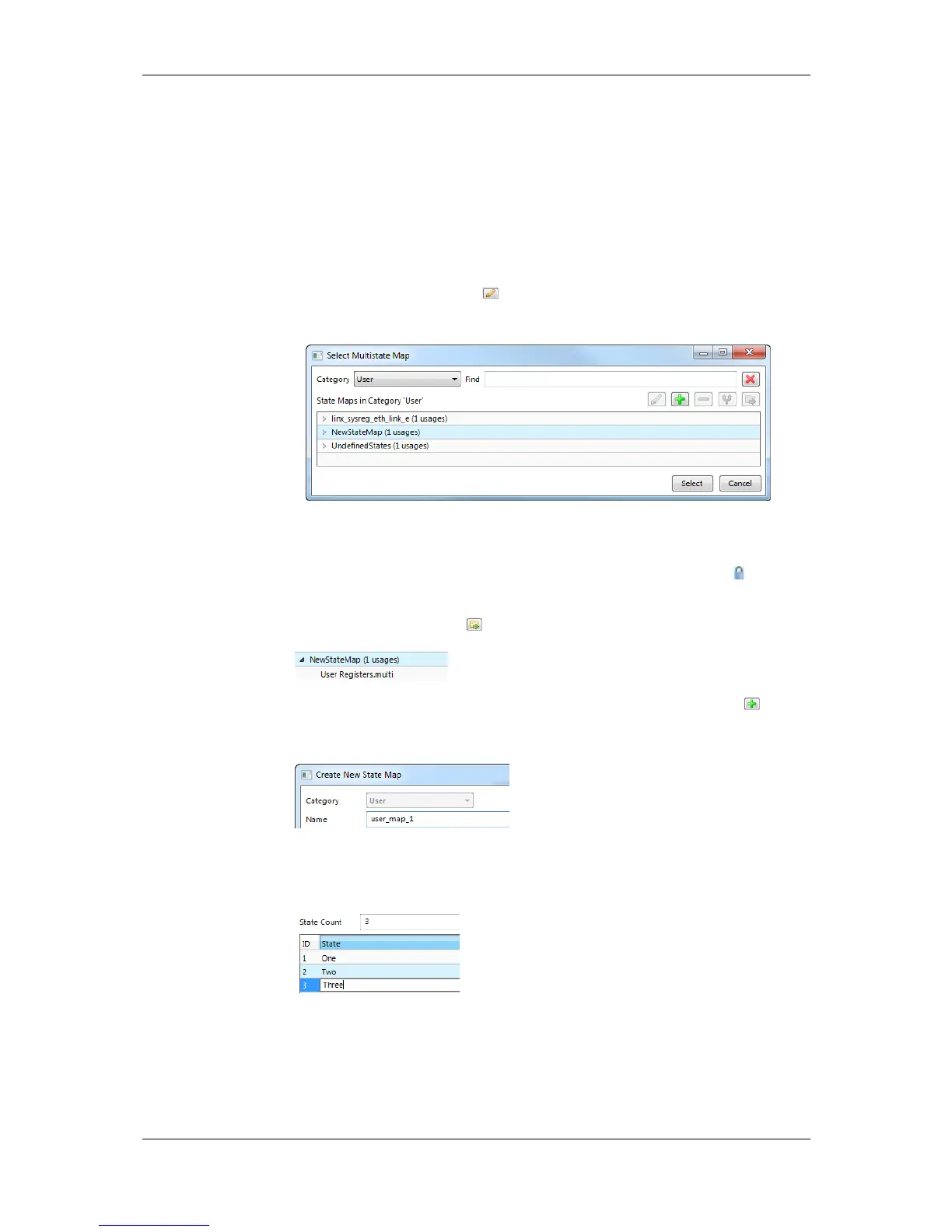

Figure 12: Select multistate maps in the multistate map manager.
2. Select a Category and an existing state map in the State Maps list and click on Select.
Maps that are fixed and cannot be changed are marked with a lock symbol .
3. Expand a state map line to see where this state map is used. Select the usage and click
the Go to Data Point button . This navigates to the data point.
4. If a new multistate map shall be created, click the Create State Map button .
5. In the Create New State Map dialog enter a state map Name.
6. Then enter the desired number of states and edit the state texts as needed and click into
the list of states. Edit state IDs and texts to your needs. Pressing Enter goes to the next
line. Finally click the Save button.
7. Select the newly created multistate map and click the Select button. The selected map
is now assigned to the data point.
