L-VIS User Manual 284 LOYTEC
Version 6.2 LOYTEC electronics GmbH

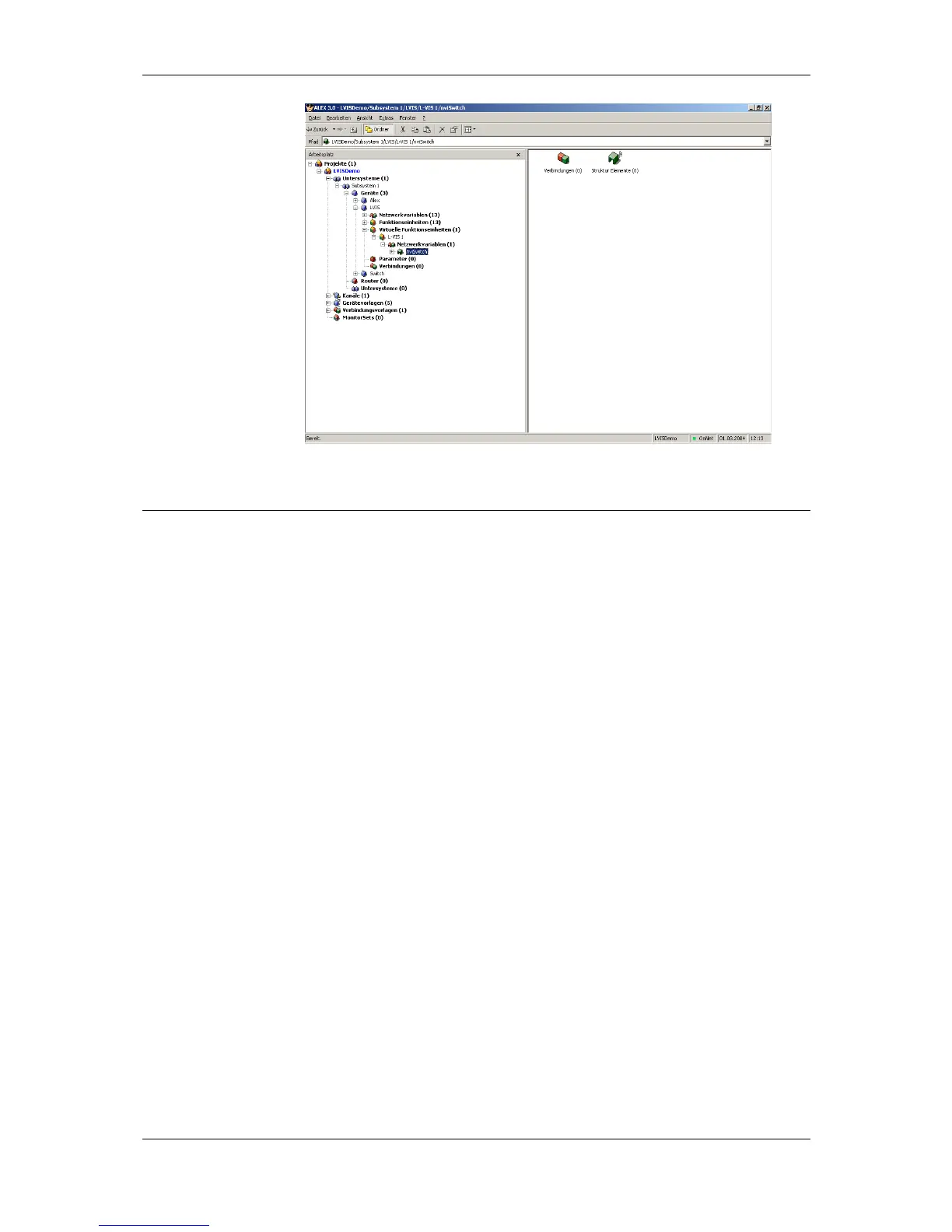

Figure 50: Finished creation of new network variable
13.9 Built-in LONMARK
®
Objects
The CEA-709 models of L-VIS provide a number of static function blocks which are
available for use, even when no project is loaded. These blocks are described in the
following sections.
13.9.1 Timer Object
The timer object implements a LONMARK
®
Real Time Keeper object according to the
LONMARK
®
Functional Profile #3300. It sends out the current time in the nvoDateTime
network variable of type SNVT_time_stamp. The object is configured using the standard
configuration properties:
 SCPTmanualAllowed
 SCPTmasterSlave
 SCPTobjMajVer
 SCPTobjMinVer
 SCPTsummerTime
 SCPTupdateRate
 SCPTwinterTime.
The configuration properties are defined in the LONMARK
®
functional Profile #3300
document.
13.9.2 Switch Object
The switch object implements a LONMARK
®
Switch object according to the LONMARK
®
Function Profile #3200. It sends out an nvoSwitch network variable of type SNVT_switch
