L-VIS User Manual 219 LOYTEC
Version 6.2 LOYTEC electronics GmbH
2. Right-click in the data point list view and select New local Calendar ….

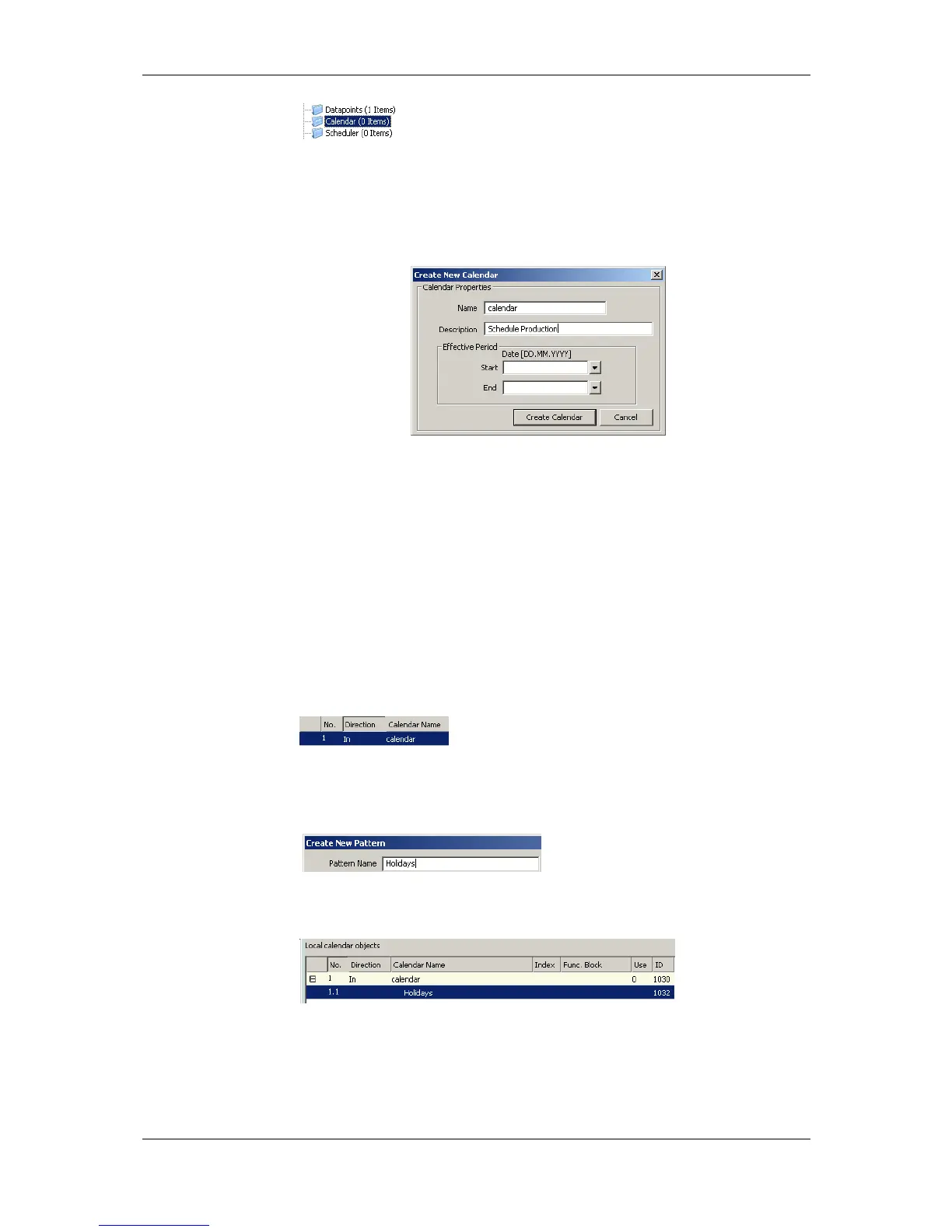

3. In the Create New Calendar dialog box (as shown in Figure 25) enter Name and
Description of the calendar. Note, that a BACnet calendar does not have the Effective
Period settings.
Figure 25: Create New Calendar dialog box.
4. Click Create Calendar. The calendar appears now in the data point list view.
10.10.2 Create Calendar Pattern
When a local calendar is used, it needs to be configured with calendar patterns. A calendar
pattern represents a class of days such as ‘Holidays’. The calendar patterns can then be used
in a schedule to define daily schedules for exception days. The available calendar patterns
should be created when the system configuration is engineered. The actual dates in the
calendar pattern can be modified later at run-time.
To Create a Calendar Pattern
1. Select an existing calendar data point.
2. Right-click and select Create Calendar Pattern…
3. Enter a Pattern Name in the Create Calendar Pattern dialog
4. Click Create Pattern. The dialog closes and the calendar pattern appears beneath the
calendar data point.
10.10.3 Create a Local Scheduler
For scheduling data points, a scheduler object must be created. Under each port folder,
multiple local scheduler objects can be created. These local schedulers can then be
configured to schedule data points.
