44), enter a name for the new dynamic network variable and set the direction and the poll
attribute as required. When done, click on OK.
NOTE: Make sure to set the poll attribute of the NV to ‘Set’ if you are creating an input NV, in
order to allow the device to support the receive timeout and poll on system start features.

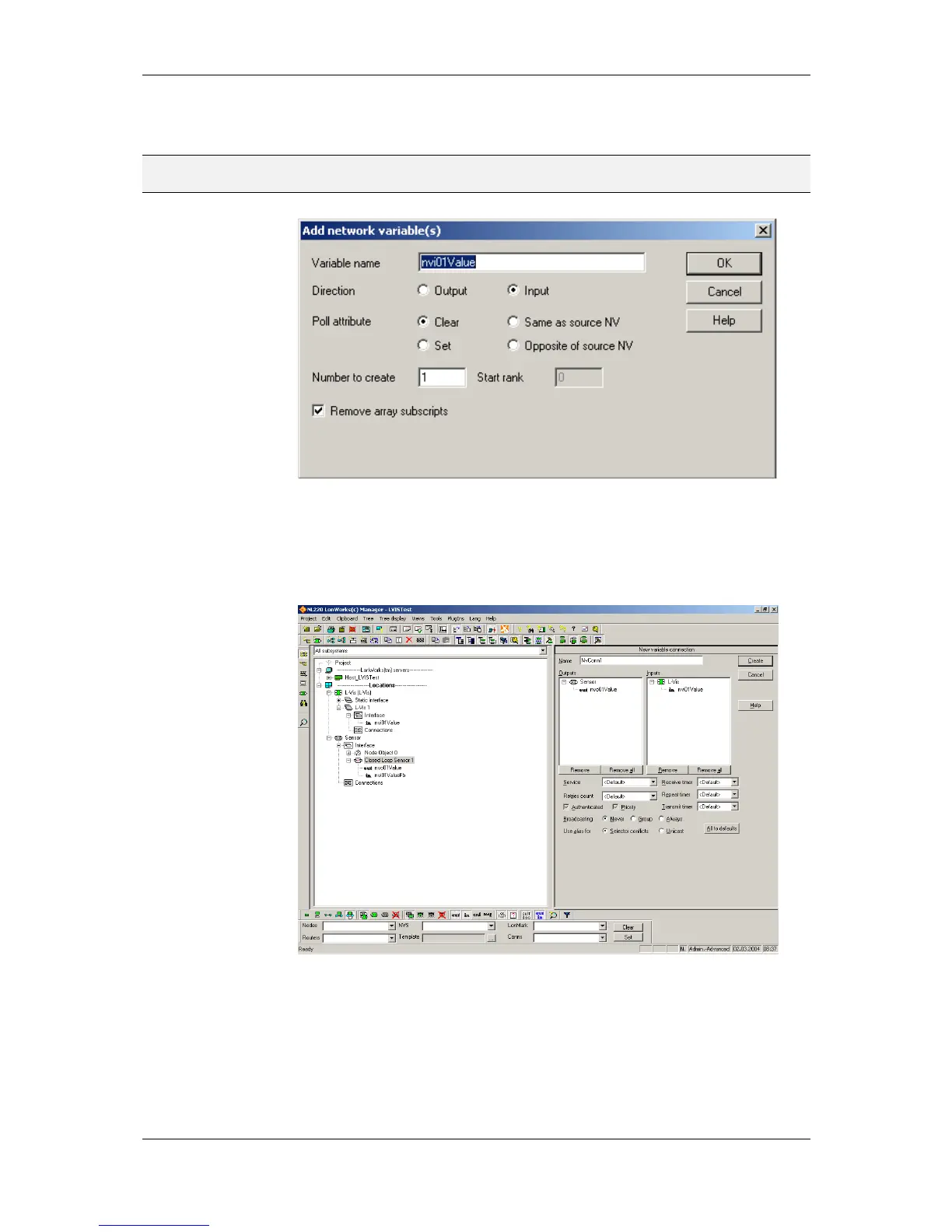

Figure 44: Add network variable dialog
This finished the creation of the dynamic network variable and shows the window which
allows to bind the dynamic network variable to the complementary network variable
(Figure 45).
Figure 45: Network variable connection window
13.8.3 Alex
To create dynamic network variables in Alex, add the L-VIS device to your project. Select
Virtuelle Funktionseinheiten and click on Neue Virtuelle Funktionseinheit (Figure 46).
