management tool. It is recommended to synchronize the CPs from the device into the LNS
database before editing and writing them back.
To Synchronize CPs in NL220
1. Double-click on the device object in the device tree
2. Press the Upload button on the Configuration tab of the device properties (see Figure
36).

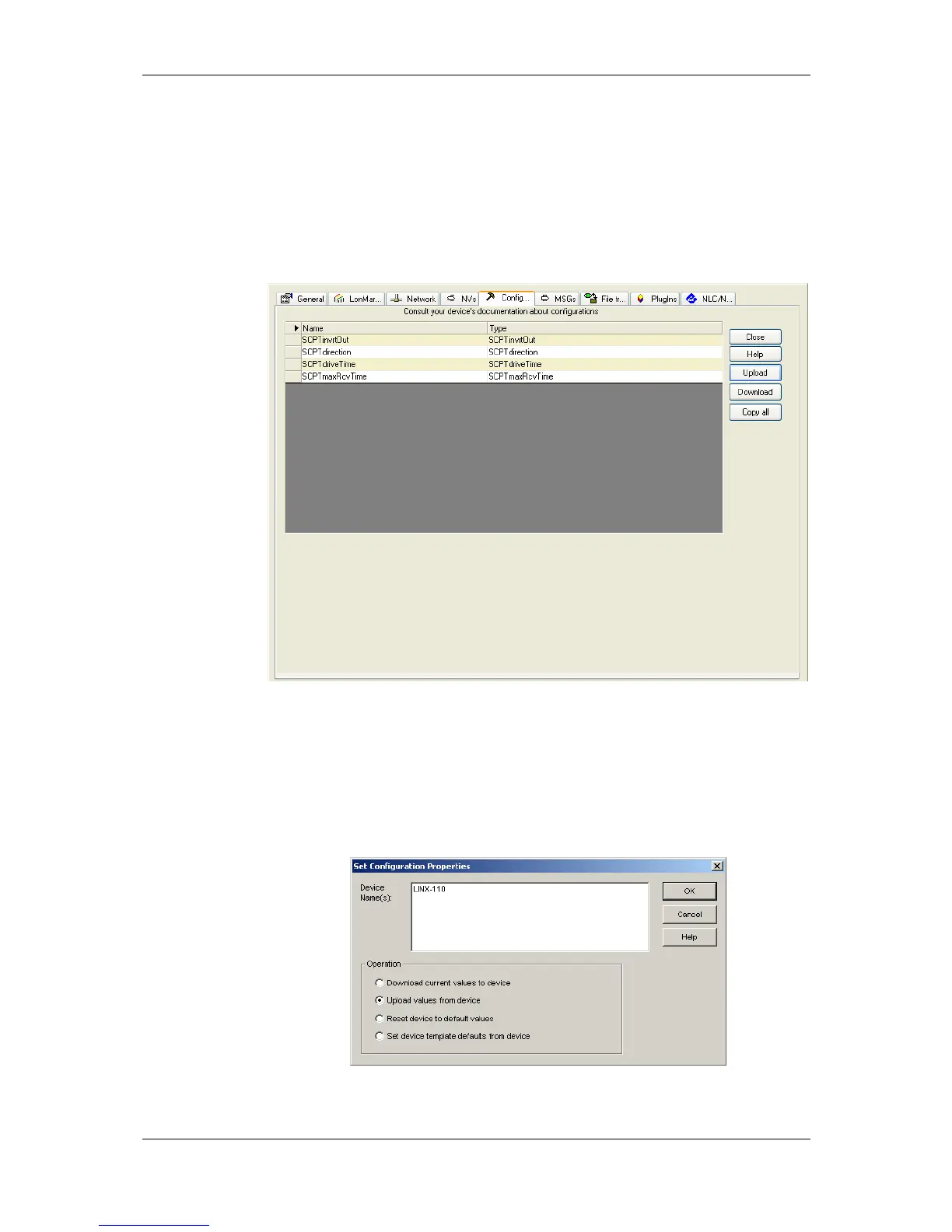

Figure 36: Configuration Tab for Configuration Properties in NL220.
To Synchronize CPs in LonMaker TE
1. Right-click on a device object and select Commissioning  Resync CPs… from the
context menu.
2. This opens the dialog shown in Figure 37.
Figure 37: Set Configuration Properties in LonMaker TE.
