ProtoMat S
Functional description
© 2011 LPKF AG HB V2.0/Dez-11 33
3
3.2.3 Mill/drill head
3.2.3.1 Mill/drill head PotoMat S43

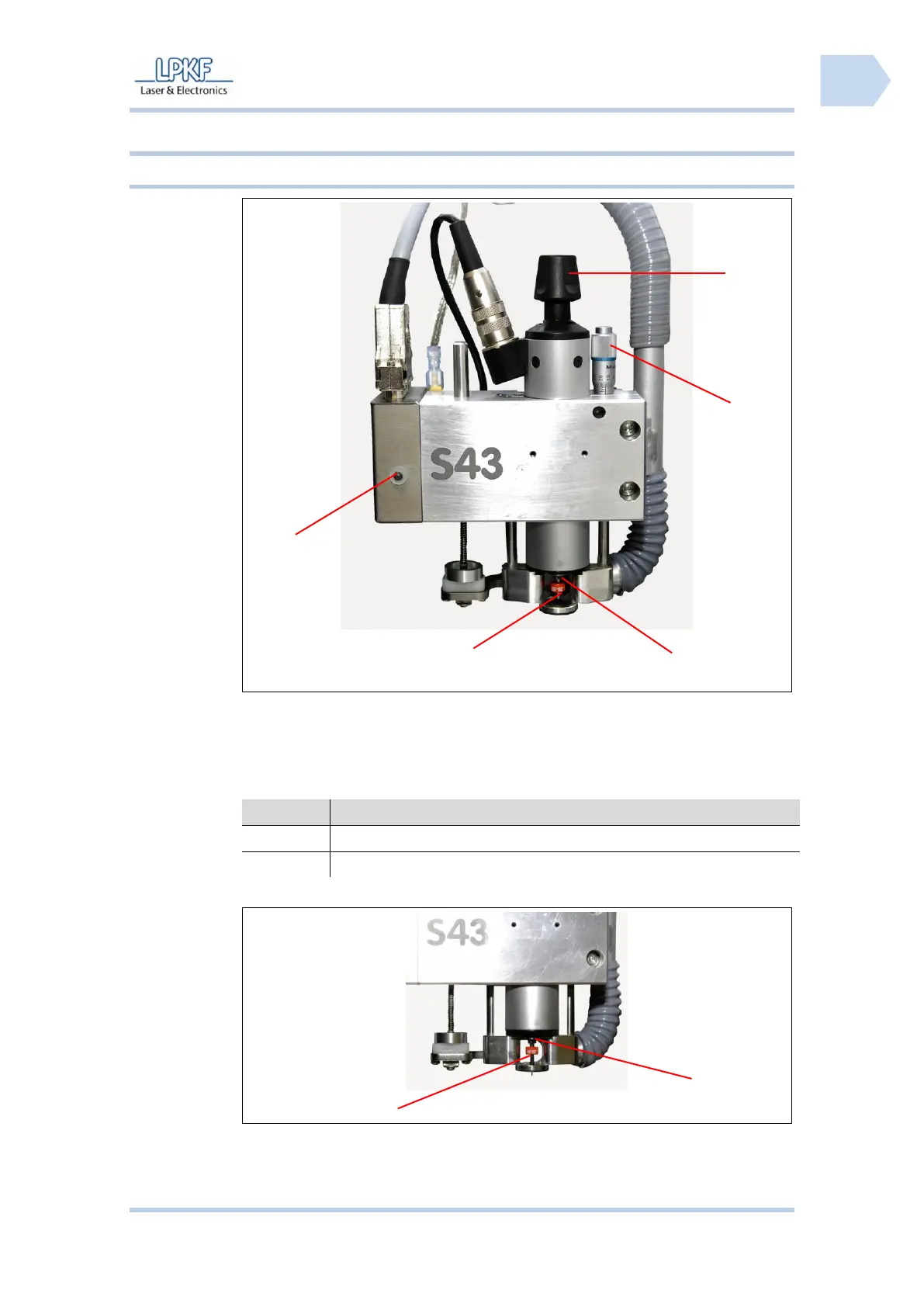

Fig. 13: Mill/drill
head
PotoMat S43
/1/ Status LED
/2/ Tool
/3/ Tool holder
/4/ Milling depth adjustment (manually)
/5/ Open/close cullet chuck (manual)
Tab. 5: LED
signalling
ProtoMat S43
LED
Signal
ON
The circuit board plotter is ready for operation.
Flashing
The flashing LED indicates a machine failure.
Fig. 14: Tool
holder ProtoMat
S43
/1/ Tool
/2/ Tool holder
1
2
3
4
5
1
2
