6.8.2 Loading the CBF file
A CBF file contains all data required for the production of printed circuit boards.
You can either open an existing CBF file to rework it or create a new file.
Note
CircuitPro processes always one CBF file. Whenever you
open a additional file, all data is overwritten.
■ Open a CBF file
1. Click File>Open.
➨ The window “Open” is shown:

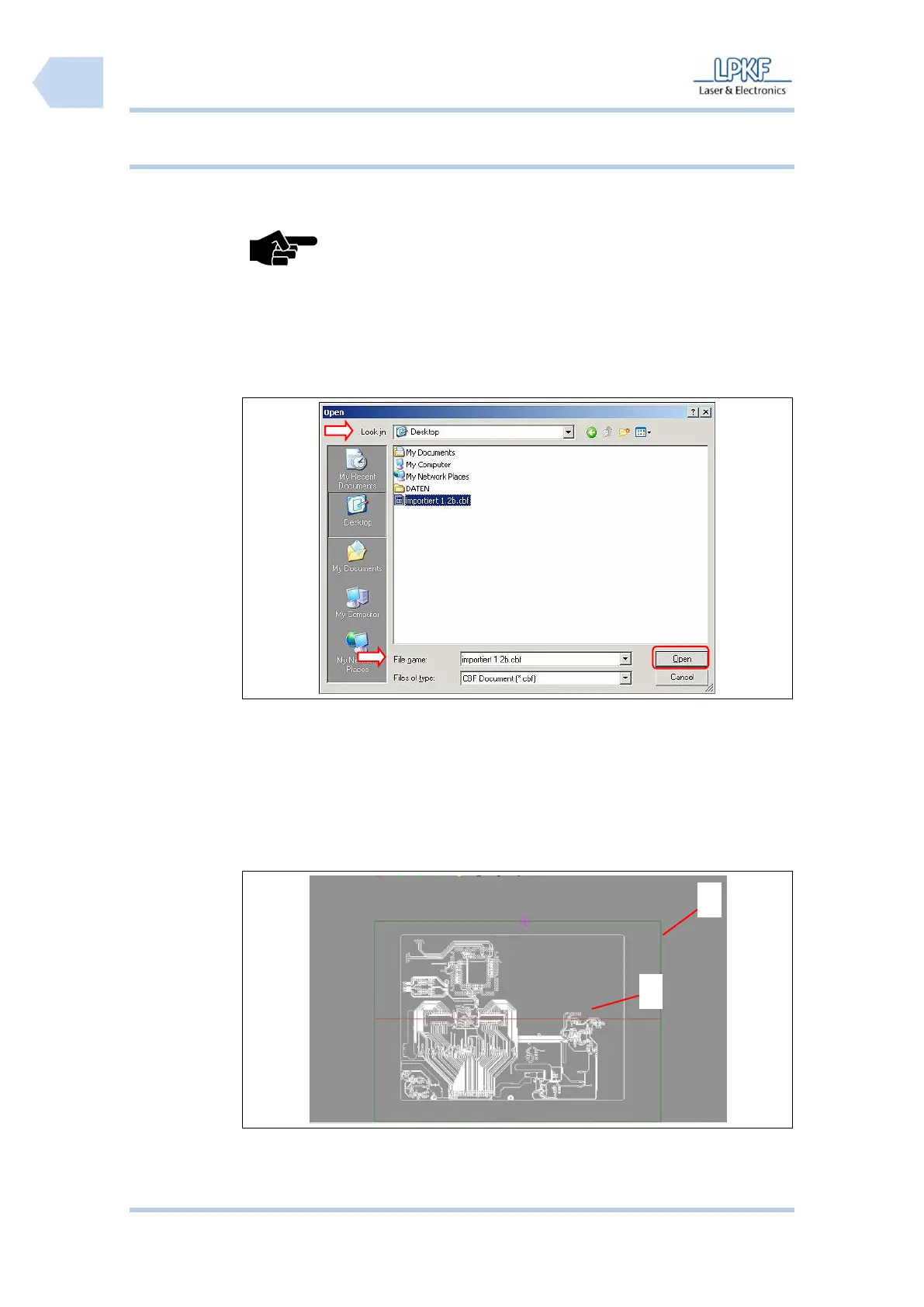

Fig. 58: Window
Open
2. Click the selection field \Search in:\ and select a destination folder.
3. Click on the CBF file.
➨ The file name appears in the selection field \File name\.
4. Click [Open].
➨ The CBF file is loaded and the projects contained are placed on the working
area.
Fig. 59: Working
area
/1/ Working area
/2/ Printed circuit board
♦ Now the CBF file is loaded.
