6.4 Place material
Before any machining process starts the material has to be placed and fixed on
the work or vacuum table.
6.4.1 Worktable
■ Fix the production material

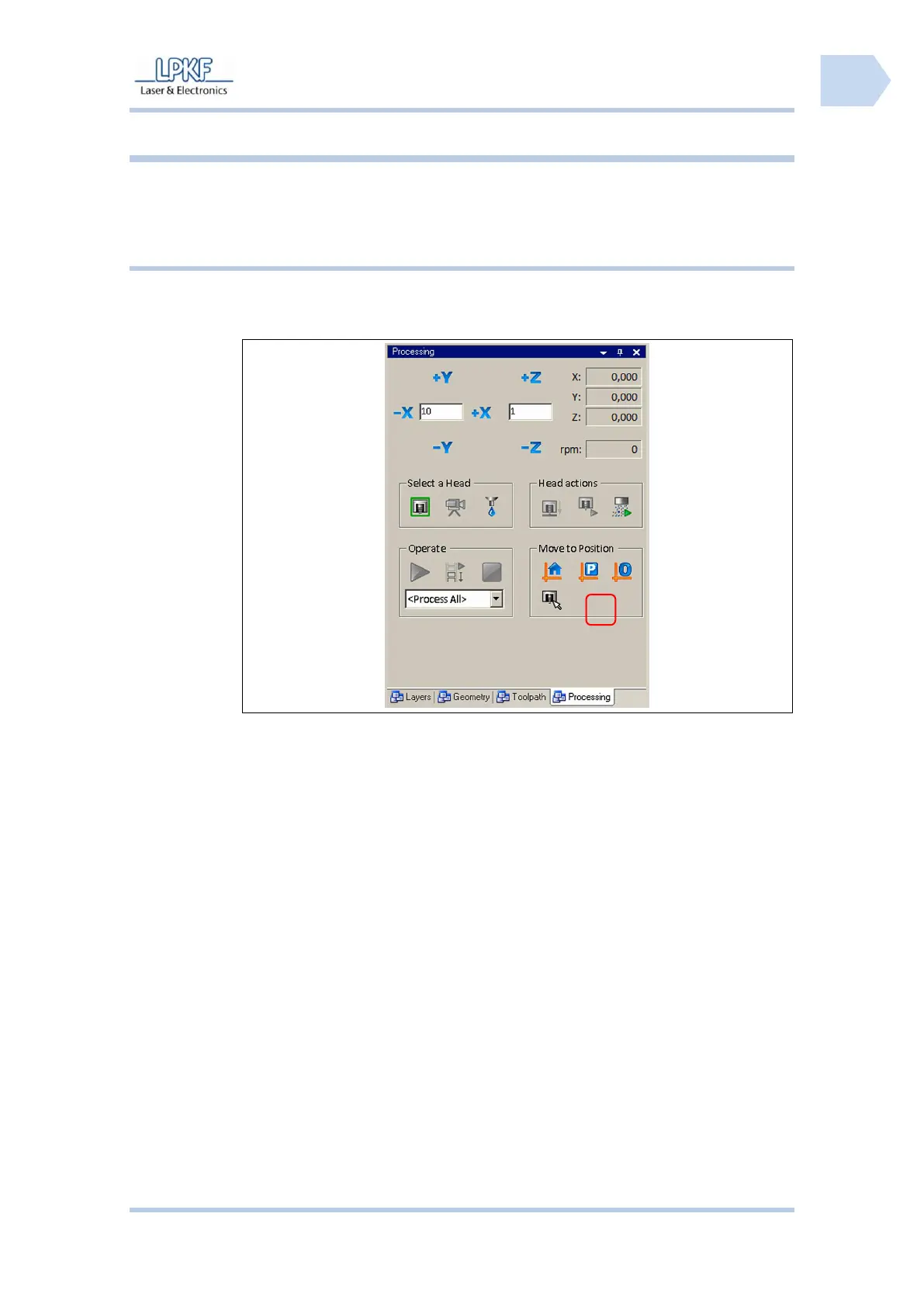

1. Click on [Pause position].
➨ The mill/drill head moves to pause position.
2. Open the soundproof hood.
3. Clean the working table and remove material rests with a smooth paint
brush or a slightly damp cloth.
4. Place the underlay on the work table. The pivots must be fit into the
reference holes of the underlay.
5. Place the production material on the underlay in a way that the pivots fit
into the reference holes.
6. Check the production material. The head of the reference hole pivots
must be lower than the production material surface.
For machines without vacuum table:
7. Fix the production material with a tape on the underlay. The tape has to
be removable without remains. The tape must be guided alongside the
edges of the production material.
♦ The production material is fixed.
