LPKF ProtoMat S - Tool Status Monitoring

ProtoMat S
Operation
© 2011 LPKF AG HB V2.0/Dez-11 55
6
6.2.1 Tool status monitoring
Note
Only printed board plotter with automatically tool exchange
support this function.
It is possible that the mill/drill head is equipped with a tool, used by a production
process in the past. This tool can be ejected or must be placed into the tool
magazine.
CircuitPro is checking the tool status:
●
Tool status is known
The tool will be placed into the
corresponding position of the tool
magazine.
●
Tool status is unknown
The tool will be ejected.
■ Eject tool
Note
Only when switching on the first time and after the system
installation.

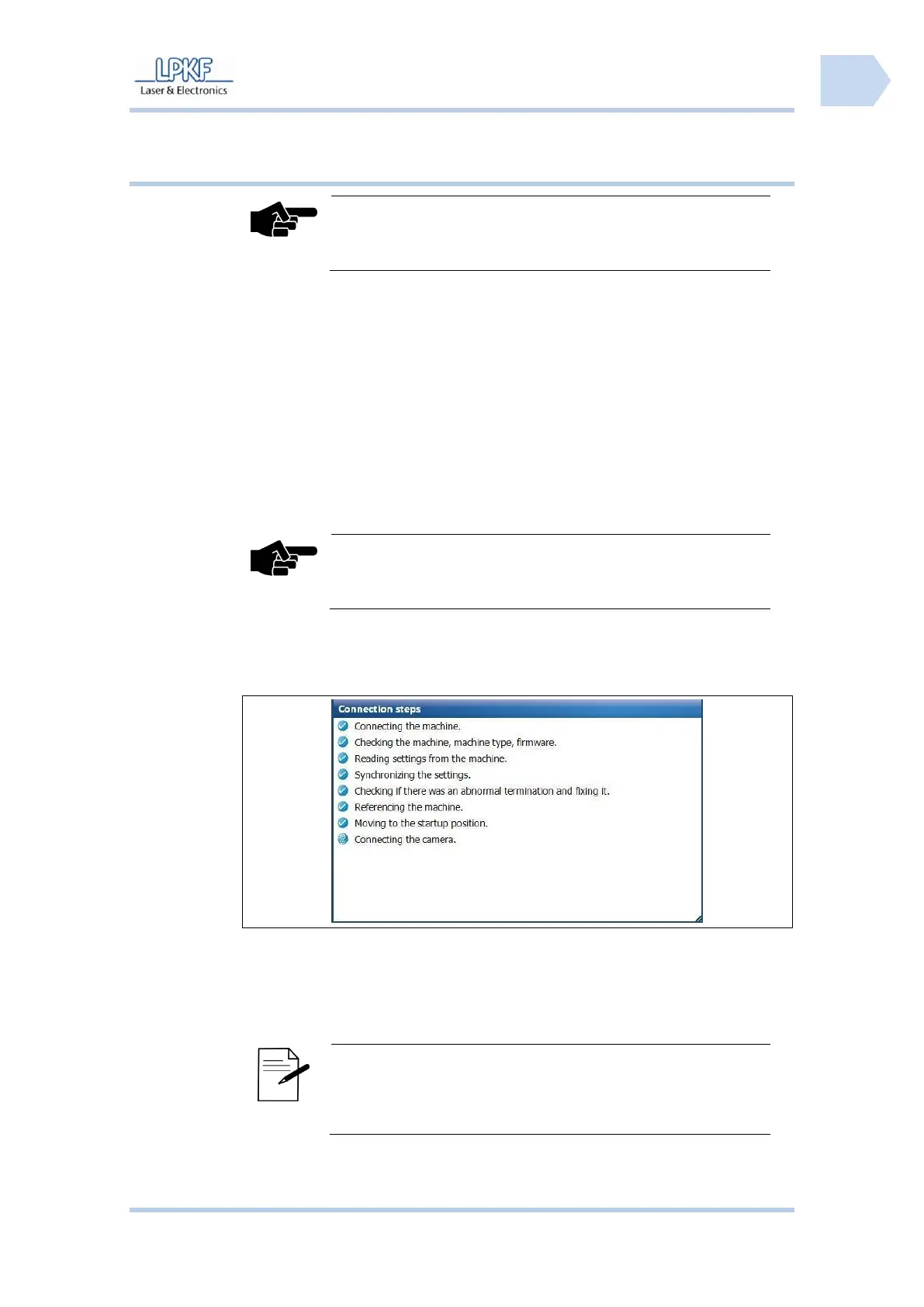

➨ When the connected circuit board plotter is detected by CircuitPro the
following message is shown:
Fig. 24: Check
active tool
1. Click \1 … 15\ or \None\ if no tool is clamped into the collet chuck.
2. Click on [Ok].
➨ The tool is placed corresponding tool magazine position.
Note
The drill/mill head moves to the zero position, if the value “0“
is entered in the input field \Tool holder ID\. The message
“Open collet chuck“ is shown. Click [OK] to eject the tool.
♦ The tool is placed in the tool holder.
