1 Product description
This chapter provides information about the mill/drill plotter system ProtoMat S.
The ProtoMat S system is deliverable in three different machine versions.
1.1 Product characteristics
Using a moving speed of 150 mm/s and a motor speed of 40,000 to 100,000
min
-1
the ProtoMat S produces high-end and complex printed circuit board very
fast and professionally. With a resolution of 0.25 µm this machine provides
highest precision.
The extensive equipment and the high grade of automation as e.g. automatical
exchange of tools, head illumination and a camera for detection of fiducials
make the ProtoMat S extremely comfortable in its operation. The modern and
ergonomically shaped soundproof housing facilitates easy handling. The safe
and comfortable employment of the circuit board plotter is thus possible in any
working environment without any additional effort.
As an optional accessory you can easily install a camera, a vacuum table and a
status light. Optional the ProtoMat S43 system can be equipped with a camera
system.
The ProtoMat S is controlled using the easy to operate software CircuitPro.
Moreover the software is able to import several CAD formats and to generate
production data from these files.
First of all insert the “Start-Up“ CD into the CD drive of your PC
and start the utility movie for the delivered ProtoMat S system.
Follow the instructions to become familiar with the machine and
produce your first printed circuit board.
Pos: 2 /ED_Tec hnische_Doku mentation/2_ Bedienungsa nleitung/Maschi ne/RP_Fräsbohr plotter/ProtoMat _S_Serie/ProtoMa t_S_Serie_II G/Kapitel_1 _Produktbeschr eibung/1_2_Typ enschild @ 1 \mod_1318343 875482_2058. docx @ 37577 @ 2 @ 1

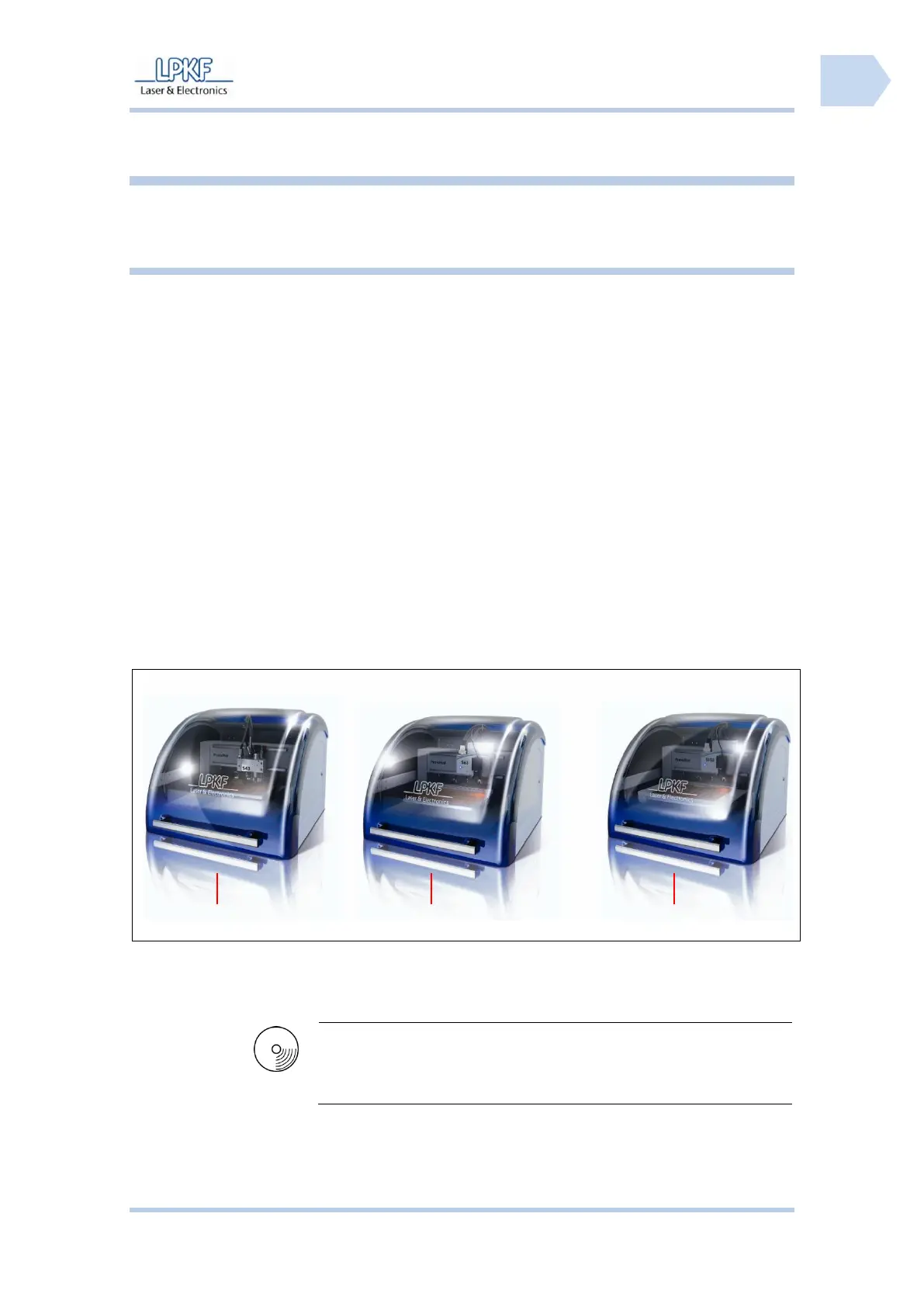

Fig. 1: ProtoMat S
Series
