6.2.2.1 Menu bar
The CircuitPro program functions can be accessed via the menu bar.

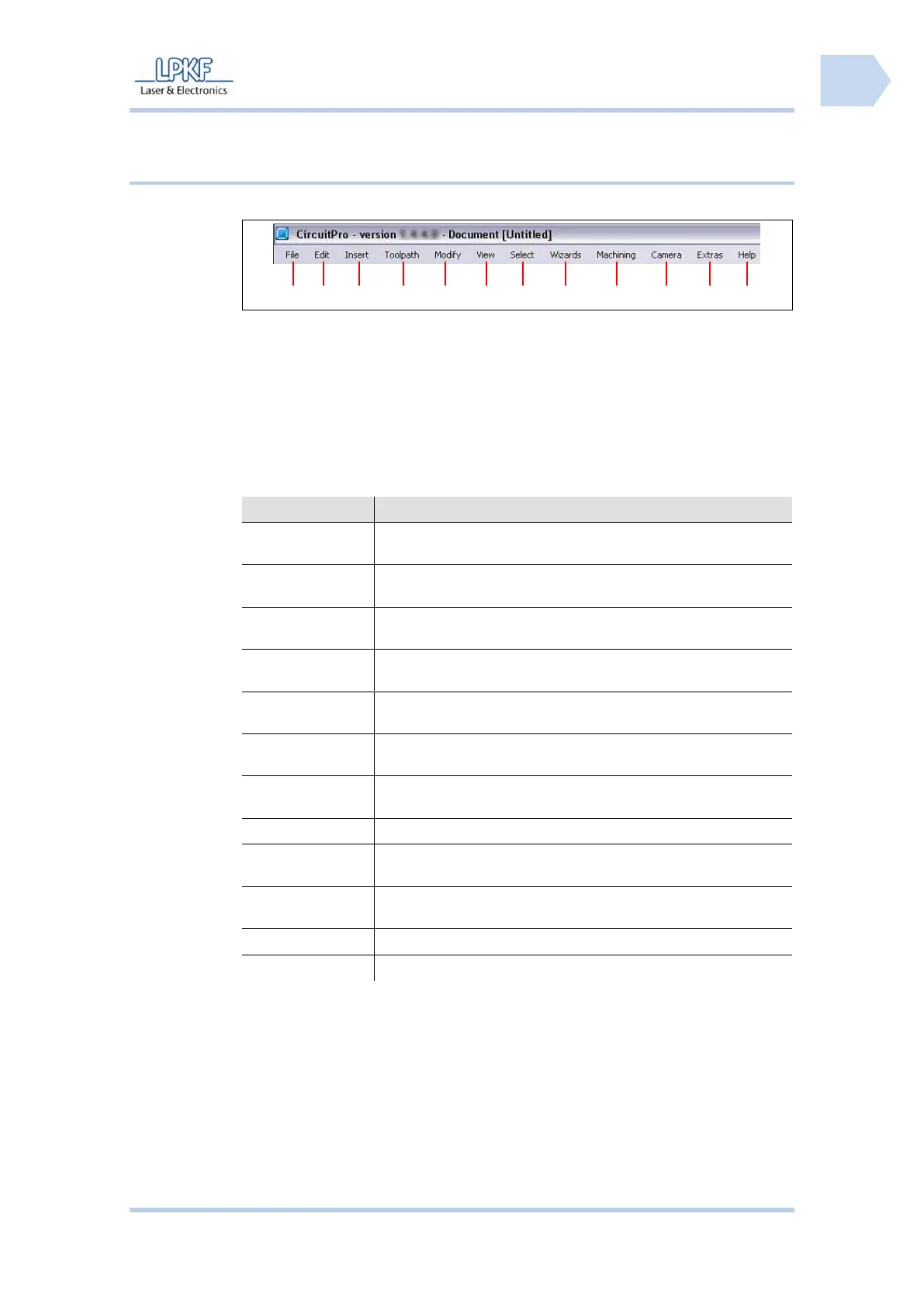

Fig. 26: Menu bar
/1/ Menu File
/7/ Menu Select
/2/ Menu Edit
/8/ Menu Wizards
/3/ Menu Insert
/9/ Menu Machining
/4/ Menu Toolpath
/10/ Menu Camera
/5/ Menu Modify
/11/ Menu Extras
/6/ Menu View
/12/ Menu Help
Tab. 10: Menus
Menu
Short description
File
The menu “File“ provides program functions to open, store,
import and export work files.
Edit
The menu “Edit“ provides program functions to create work data
as well as files, e.g. placing of new objects on the base material.
Insert
The menu “Insert“ provides program functions to insert tool
paths or work areas.
Toolpath
The menu “Toolpath“ includes the functions isolate tool path and
process contours.
Modify
The menu “Modify“ offers program functions to process tool
paths.
View
The menu “View“ allows the operator to activate/deactivate the
possible program windows.
Select
Use the functions of the menu “Select“ to select certain zones of
the working area.
Wizards
The menu “Wizards” is using to open several wizards.
Machining
Use the functions of the menu “Operate“ to control the
machining process.
Camera
The menu “Camera” offers program functions to set the installed
camera.
Extras
The menu “Extras” offers functions to customize CircuitPro.
Help
The menu “Help“ gives information about this program.
