5 Installation
This chapter describes the installation and start up procedure of the circuit
board plotter in detail.
5.1 Assembling conditions
ATTENTION
Risk of injury caused by instable underground!
An instable underground that crashes may harm operators due
to vibrations and machine powers that may occur during
processing of a work piece.
The machine must be placed on a solid surface.
The circuit board plotter has to be placed on a solid work desk with a minimum
load capacity of 60 kg. The work area size should not be smaller than 800 x 900
mm.

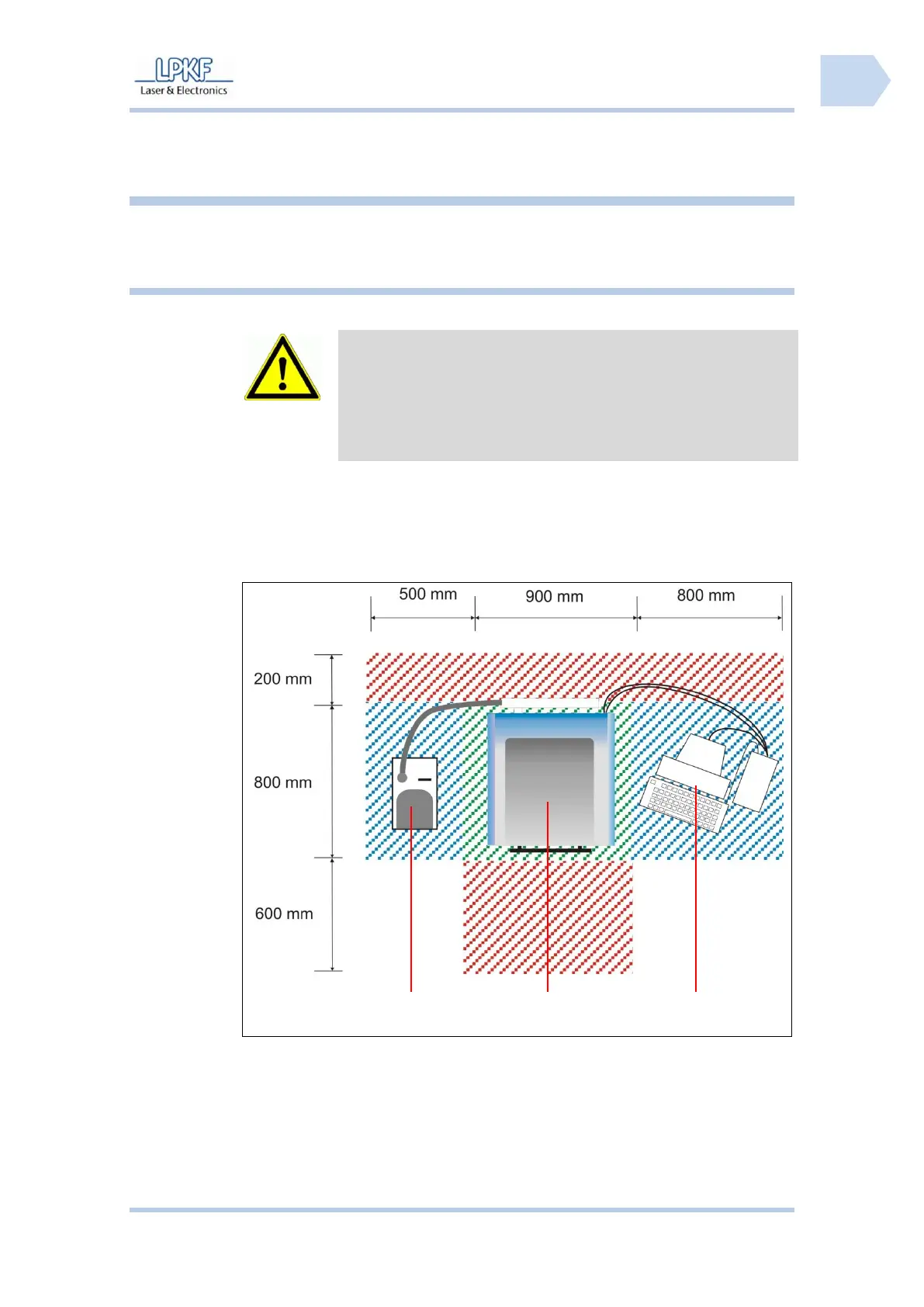

Fig. 18: Required
space
/1/ Dust extraction
/3/ PC
/2/ Circuit board plotter
The areas marked in red are safety zones that must not be blocked with any
objects.
