© 2011 LPKF AG HB V2.0/Dez-11 89

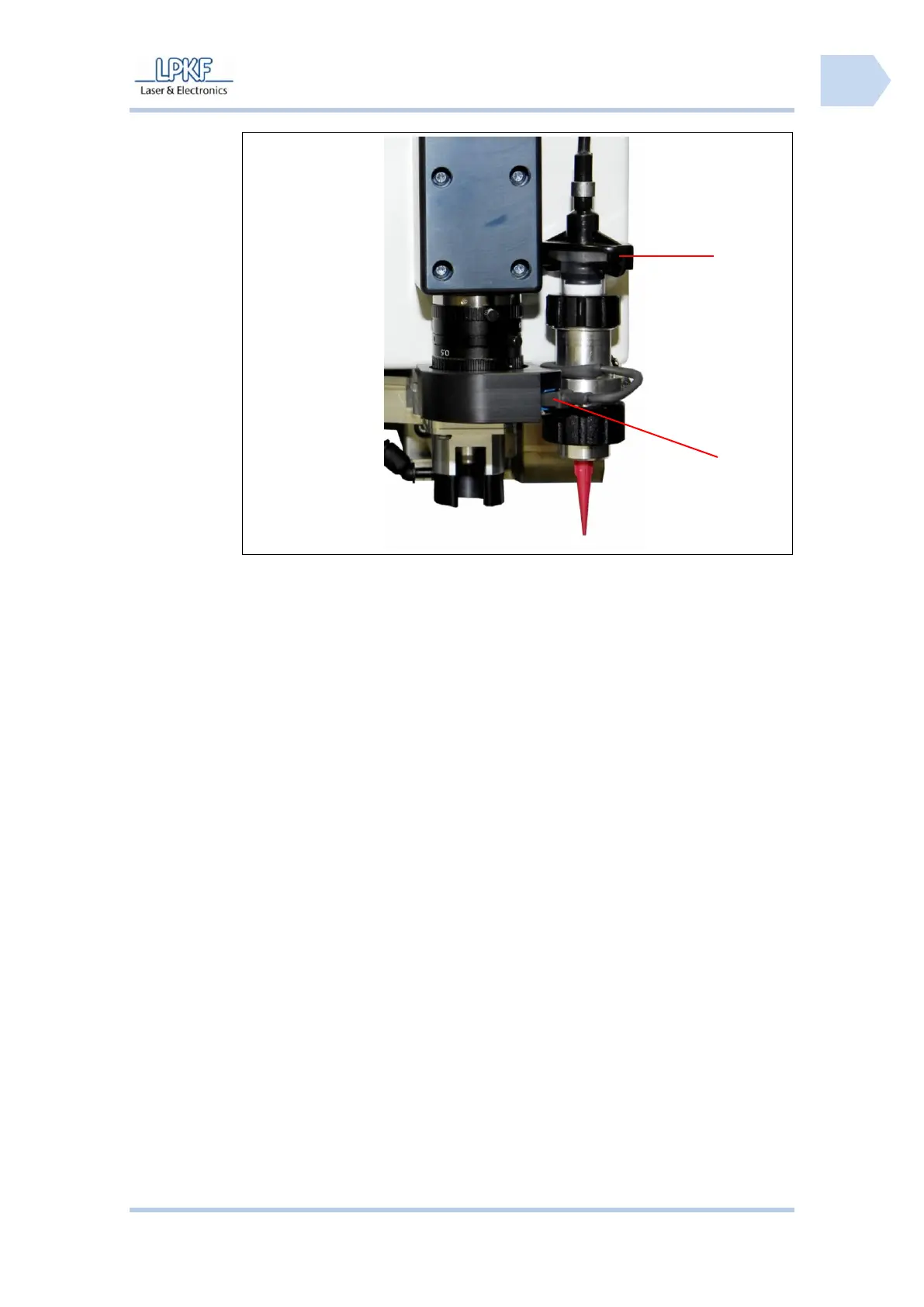

Fig. 65: Installed
dispense set
5. Remove the upper closure cap of the solder paste cartridge and plug in
the coupling of the plastic hose /2/. Turn the coupling to fix it on the
solder paste cartridge.
6. Loosen the lower fastening nut and plug the dispense adapter into the
fixing device on the right side of the mill/drill head.
7. Plug the dispense adapter connection cable into the jack on the camera
lighting system /1/.
♦ The dispense device is ready to operate.
