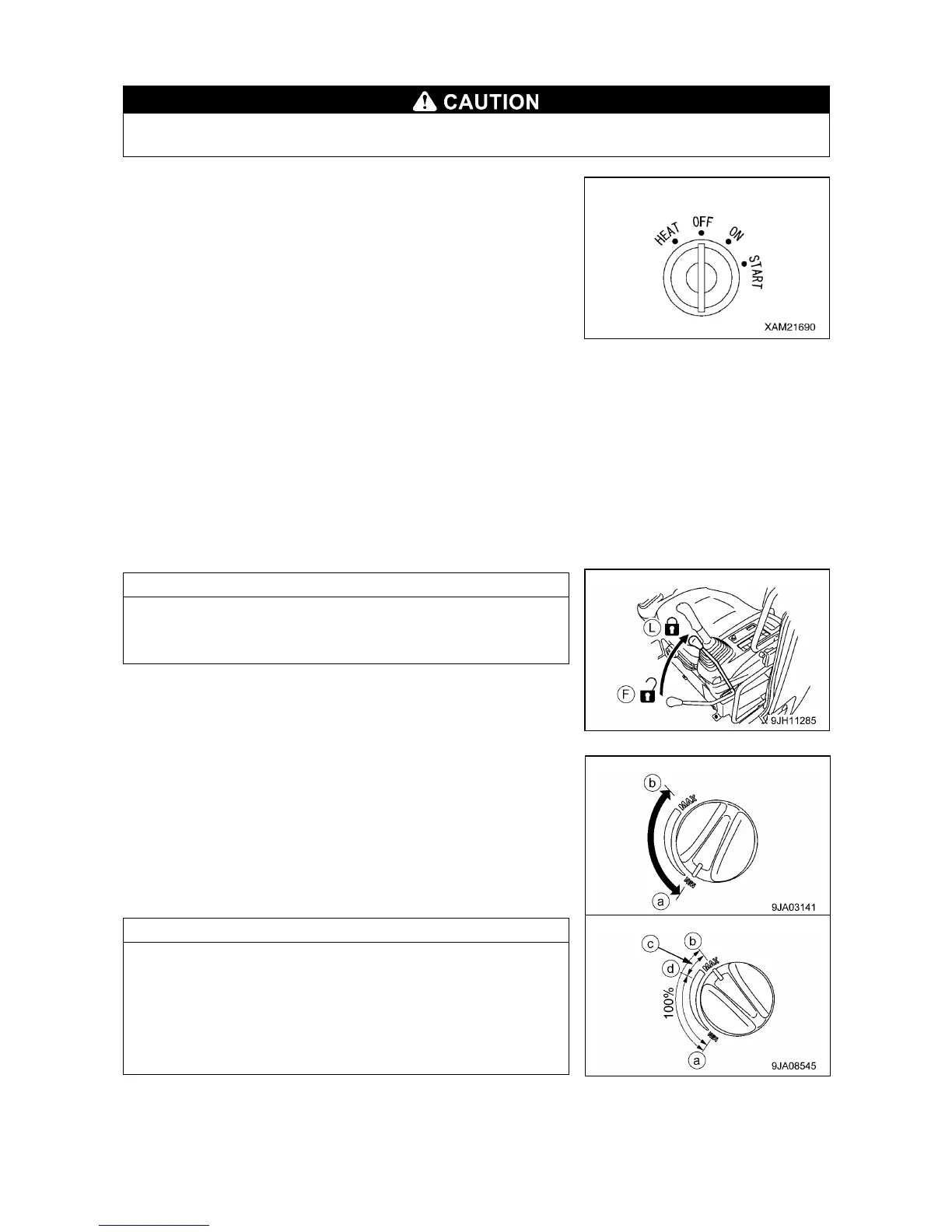

Starting switch (1) is used to start or stop the engine.
• OFF position:
The starter key can be inserted or withdrawn. Switches for the
electrical system (except room lamp), are all turned off and the
engine is stopped.
• ON position:
Electrical current flows through the charging and lamp circuit.
Keep starter key in the ON position while the engine is running.
• START position:
This is the engine-start position. Keep the key at this position during cranking. Immediately after starting
the engine, release the key. It will automatically return to the ON position.
• HEAT position:
Set to this position when starting engine in cold weather.
When the starter key is returned to HEAT position, the preheating monitor lights up. Keep the key in this
position until the preheating monitor flashes. When the preheating monitor flashes, release the key
immediately. When the key is released, it will return automatically to OFF position so turn it immediately
to START position and start the engine.
The engine does not start, if the lock lever is not in the LOCK
position (L). Make sure first that the lock lever is in the LOCK
position (L), and then turn the engine starter switch.
[2] FUEL CONTROL DIAL
Use this dial (2) to control the engine rotating speed and output.
• (a) Low idling (MIN): Turn dial fully to left
• (b) Full speed (MAX): Turn dial fully to right
On this machine, the engine is electronically controlled to give
the optimum matching with the main pump. There is an area
without any feeling on the dial, but this is not an abnormality.
Range (c): No feeling (engine speed constant)
P mode: 22%
E mode: 30%
Position (d): High idling
