3-80
2.7 RADIO

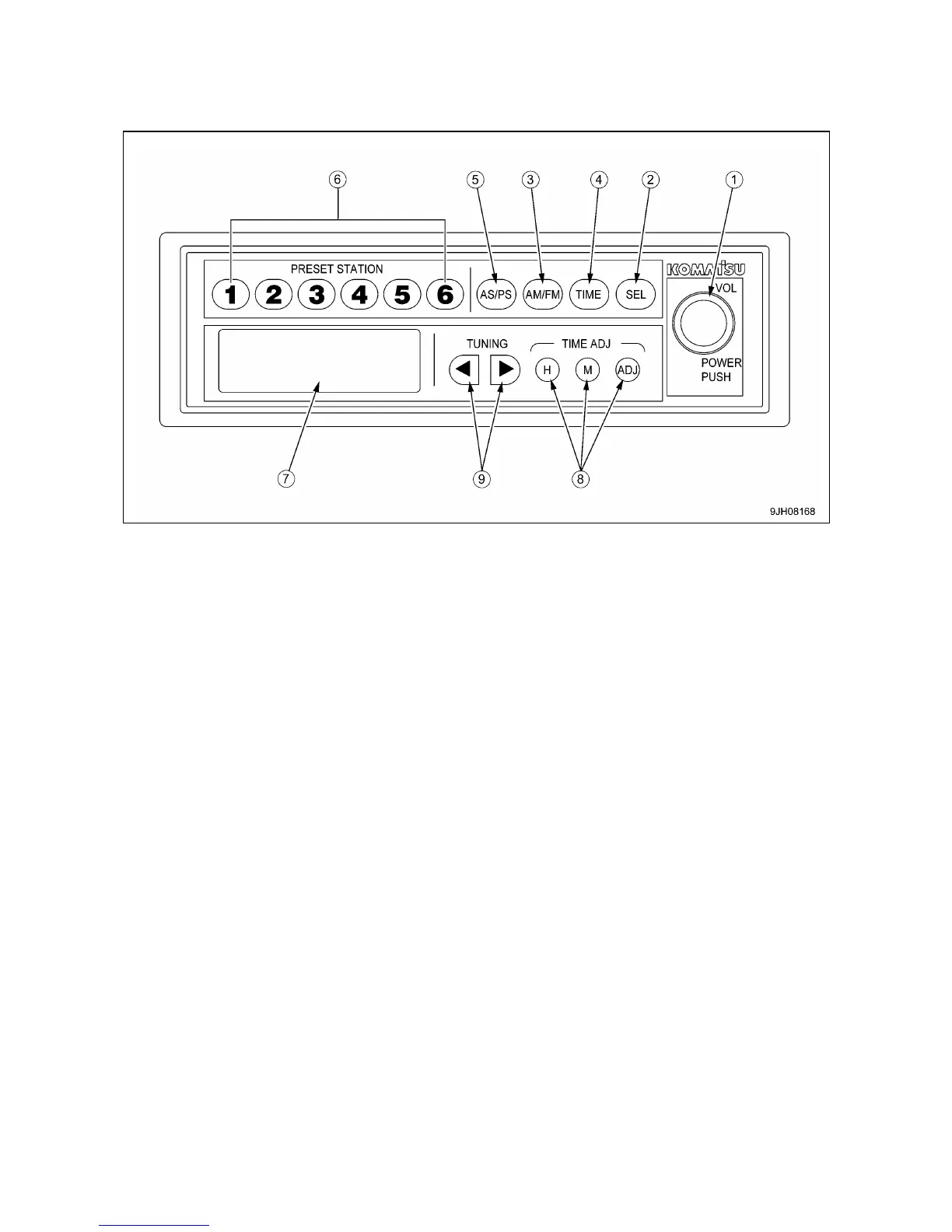

2.7.1 CONTROL PANEL
(1) Power switch, Volume control knob, balance
control knob
(2) SEL button
(3) FM/AM selection button
(4) Display selection button
(5) AS/PS button
(6) Preset station buttons (1.2.3.4.5.6)
(7) Display
(8) Time reset button
(9) Tuning button
[1] POWER SWITCH, VOLUME CONTROL KNOB, BALANCE CONTROL KNOB
Press the knob (1) to turn the power for the radio ON. The frequency is displayed on display (7). Press
again to turn the power OFF.
Turn the knob (1) clockwise to increase the volume; press counterclockwise to reduce the volume.
The range for the volume is VOL 0 to VOL 40.
[2] SEL BUTTON
Each time this button (2) is pressed, the mode changes as follows: VOL (volume) → BAS (bass) → TRE
(treble) → BAL (balance). The mode is display (7).
For details of each mode, see “2.7.2 Method of Operating Mode”.
[3] FM/AM SELECTION BUTTON (AM/FM)
Press this button (3) to select the desired band.
Each time the button (3) is pressed, the band changes FM → AM → FM…
