Maeda LC1385M-8BF - Fuse

3-85
2.8 FUSE
Be sure to turn the starter switch to the OFF position when checking or replacing a fuse.
CAUTION
Fuses protect electrical components and wires from being burnt out.
• Fuses are blade fuses. If a fuse was corroded and shows white powder, be sure to change the
fuse.
• If a fuse has melt down, always check the cause in the circuit and repair the problem before
changing the fuse.
• Always use a fuse of the same capacity when replacing one.

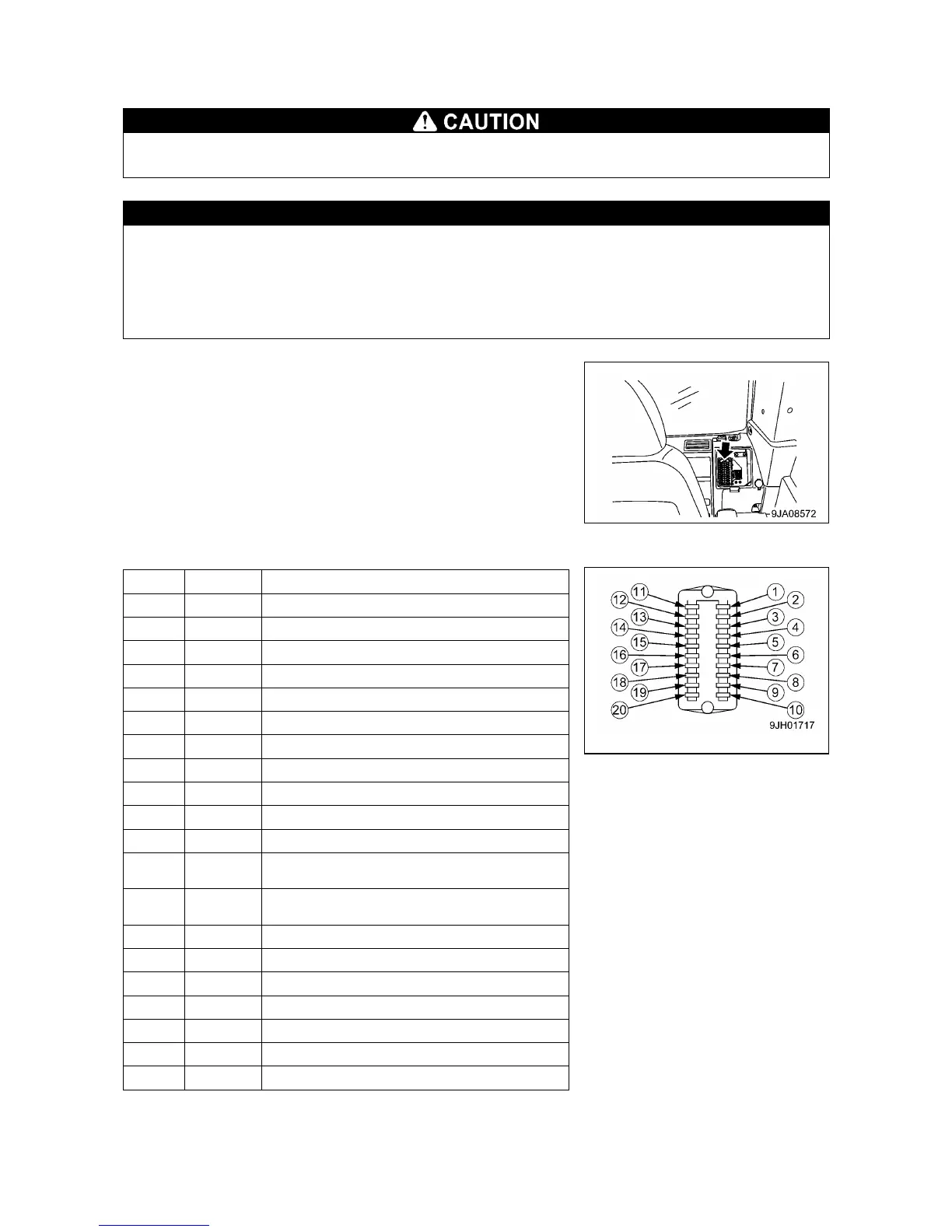

The fuse holder is inside the cover at the left rear of the cab.
[FUSE CAPACITY AND CIRCUIT NAMES]
The table below shows the fuse system and it‟s capacity.
No.
Capacity
Circuit name
(1)
10A
Emergency actuation circuit
(2)
30A
Solenoid valve
(3)
15A
Cigarette lighter
(4)
10A
Window washer
(5)
10A
Horn
(6)
5A
Working lamp relay, horn relay
(7)
10A
Work status lamp
(8)
20A
Working lamp
(9)
10A
Radio, speaker
(10)
5A
Air conditioner
(11)
20A
Air conditioner unit
(12)
10A
Moment limiter, crane solenoid, sun roof
wiper
(13)
10A
Optional equipment power supply (2), 12V
power supply
(14)
10A
Spare
(15)
5A
Air conditioner
(16)
10A
Radio back-up, room lamp
(17)
20A
Monitor, controller, starter switch
(18)
30A
Engine controller
(19)
5A
Engine controller
(20)
5A
PPC oil pressure lock solenoid
