3. MACHINE OVERVIEW
3.1 SPECIFIED OPERATIONS
This machine is to be used for operation listed below.
• Crane operation
• Pick & Carry operation
This machine is a mobile crane which consists of a crawler type carrier and an upper structure of a boom
equipped crane.
This self-propelled crane is capable of moving (traveling) in the worksite and lifting an object weighing
within the rated total load.

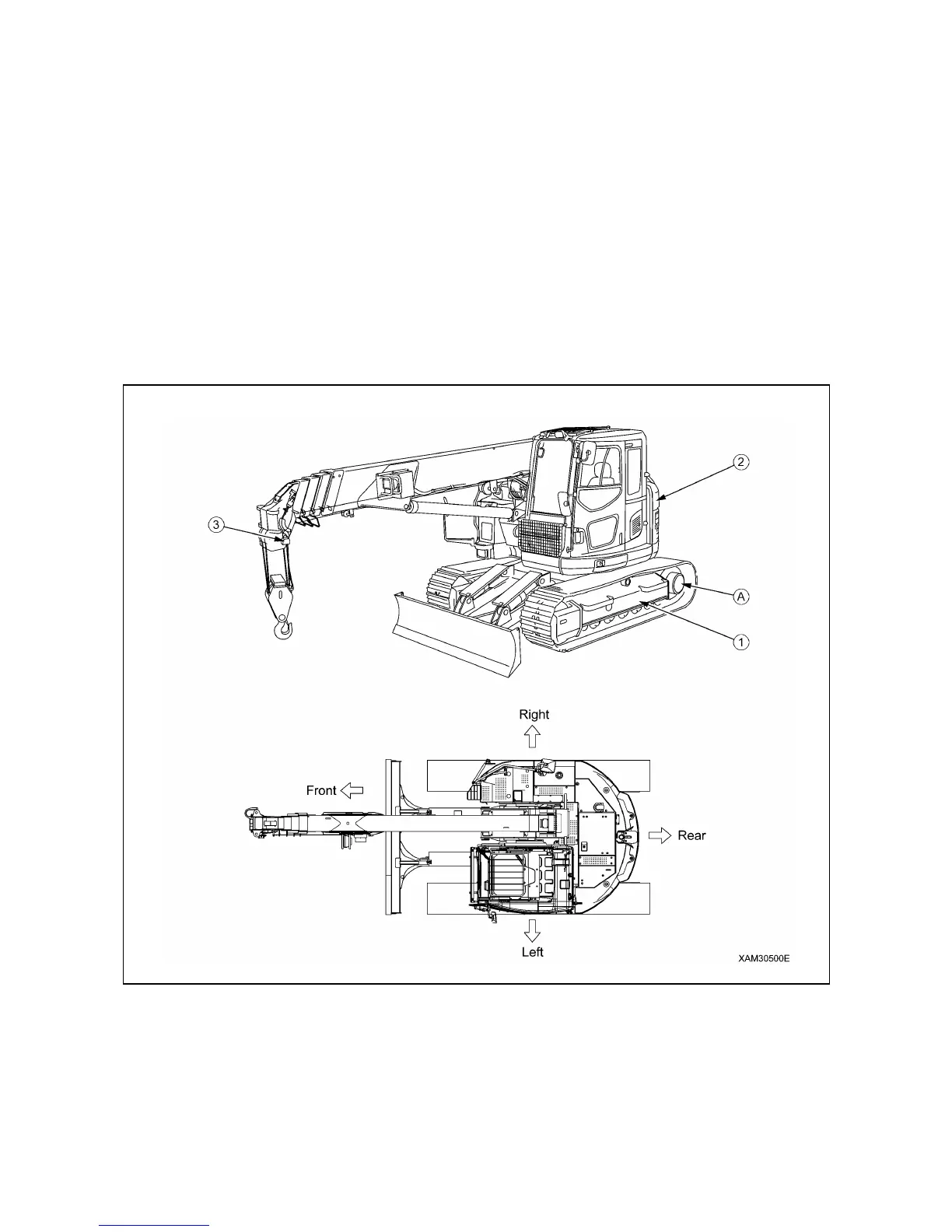

3.2 MACHINE CONFIGURATION
(1) Undercarriage
(2) Upper structure
(3) Safety device
In this manual, the terms front, rear, left and right refer to the travel
direction as viewed from the operator’s seat when the operator’s seat
is facing the front and the sprocket (a) is at the rear of the machine.
Boom slewing motion is determined with the machine viewed from
immediately above; slew clockwise denotes right-handed motion and
slew counterclockwise denotes left-handed motion.
