6.1 INSTALLATION OF FLY-JIB

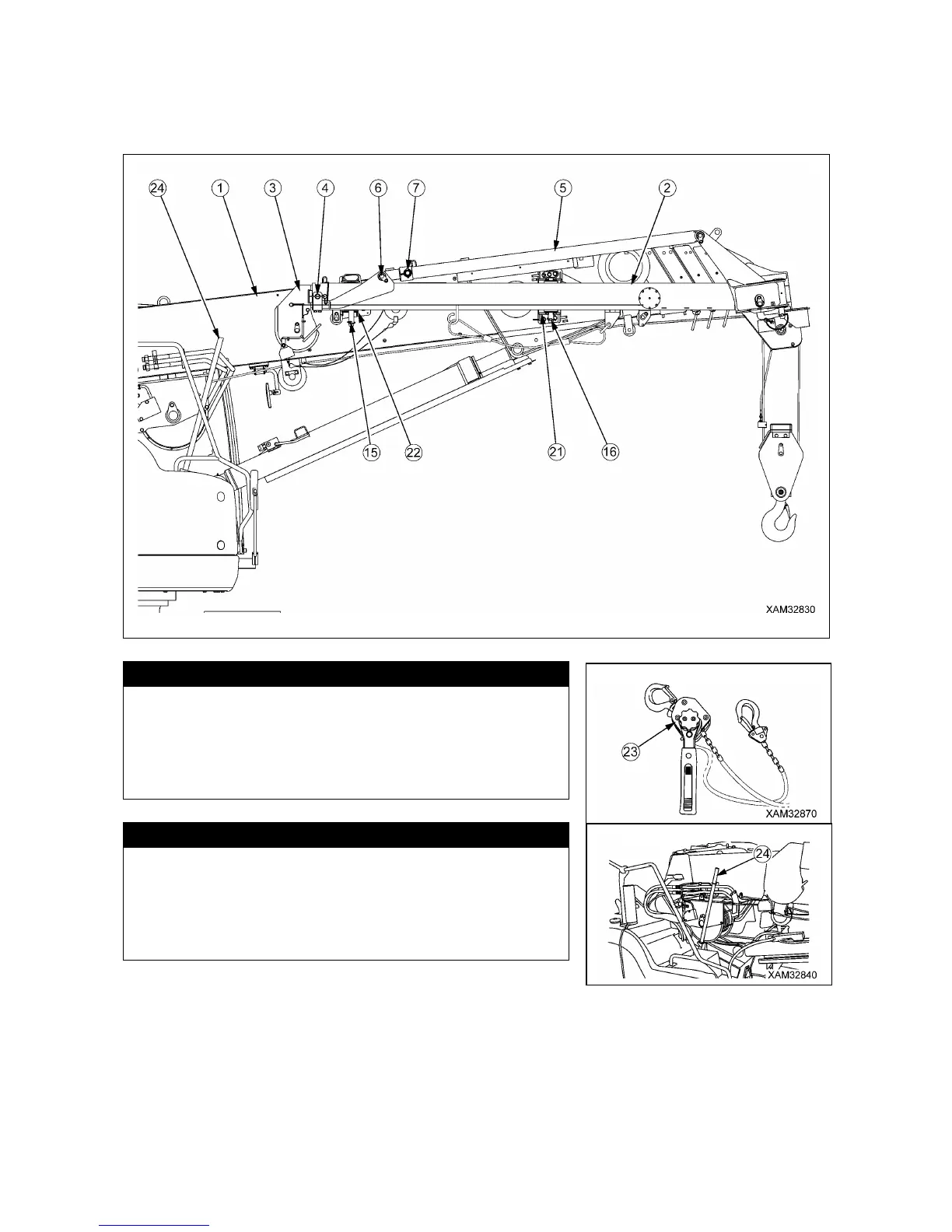

Practice installing the Fly-jib to the Main boom from the stowed position from the right side as shown
below:
The lever block (23) included in the accessories shall be set
to the bracket between the tilt angle adjuster outer rod and
inner rod, for the purpose to match the holes in the Main
boom and No.1 Fly-jib or changing the Fly-jib tilt angle. For
the use of the lever block, refer to the attached manual.
The adjuster bar (24) stowed in the right of the winch drum
in the upper structure shall be used for the purpose to
match the holes in the Main boom and No.1 Fly-jib.
The bar shall be inserted in the position pin hole of the
Fly-jib foot to move it to left and right, or to front and back.
