Maeda LC1385M-8BF - Machine Monitor

3-4

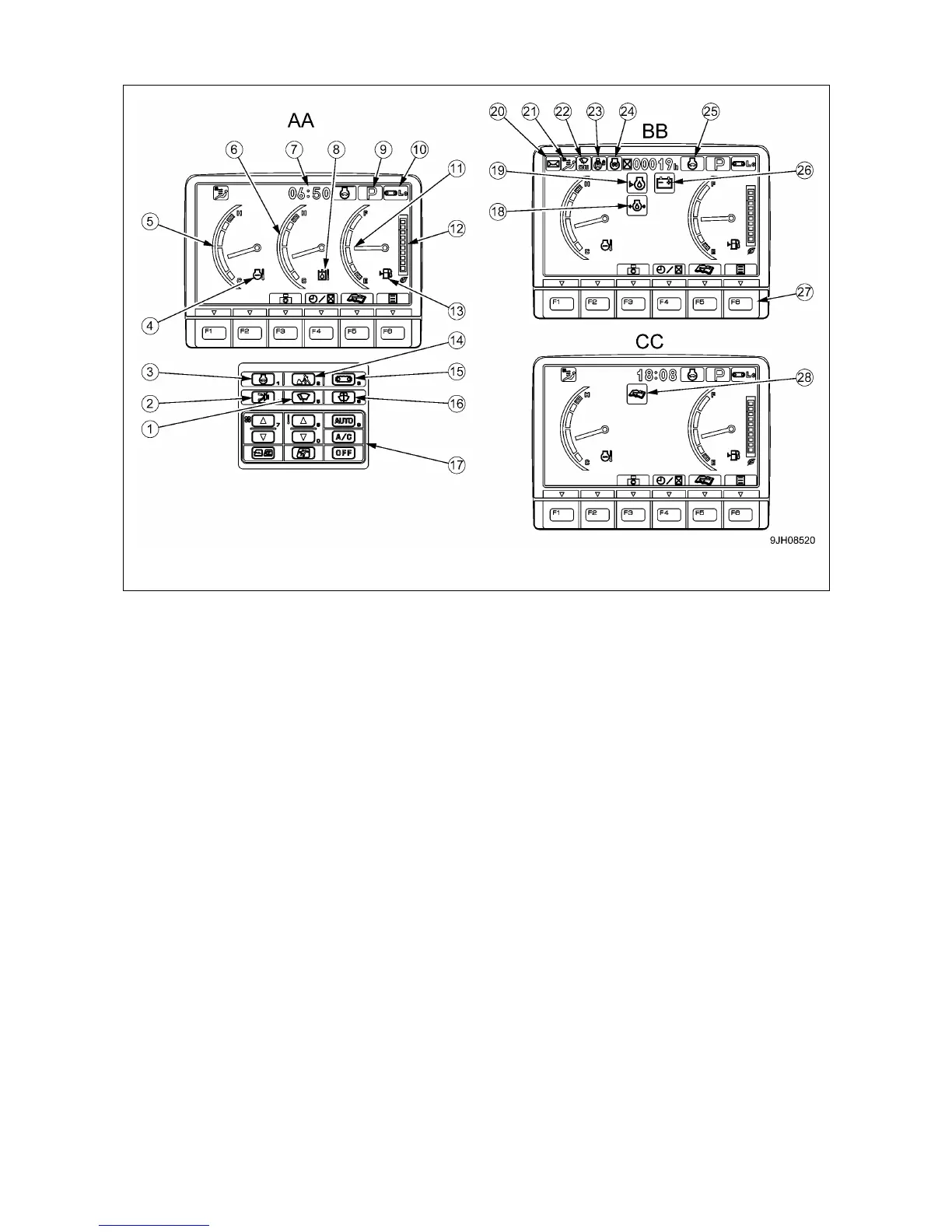

1.2.1 MACHINE MONITOR
(1) Wiper switch
(2) Buzzer cancel switch
(3) Auto-deceleration switch
(4) Engine coolant temperature monitor
(5) Engine coolant temperature gauge
(6) Hydraulic oil temperature gauge
(7) Service meter/Clock
(8) Hydraulic oil temperature monitor
(9) Working mode monitor
(10) Travel speed monitor
(11) Fuel gauge
(12) ECO gauge
(13)Fuel level monitor
(14) Working mode selector switch
(15) Travel speed selector switch
(16) Window washer switch
(17) Air conditioner control switches
(18) Engine oil pressure monitor
(19) Engine oil level monitor
(20) Message monitor
(21) Air conditioner monitor
(22) Wiper monitor
(23) Swing lock monitor
(24) Engine pre-heating monitor
(25) Auto-decelerator monitor
(26) Charge level monitor
(27) Function switch (F1 to F6)
(28) Maintenance interval monitor
AA: Standard screen BB: All lamps lit up screen CC: Maintenance interval warning screen
