Maeda LC1385M-8BF - Pick & Carry;Staitionary Mode Select

3-67
2.4.8 PICK & CARRY/STAITIONARY MODE SELECT
Pick and carry operation is a very dangerous practice and prohibited, in genreal.
Where such an operation is unavoidable, refer to "Operation 3.25 Pick & Carry Operation" and
strictly observe rated total laod for pick and carry operation, correct practices and traveling
posture.
Such safety precaution for pick and carry must be strictly adhered, otherwise an accident with
serious injury may result.

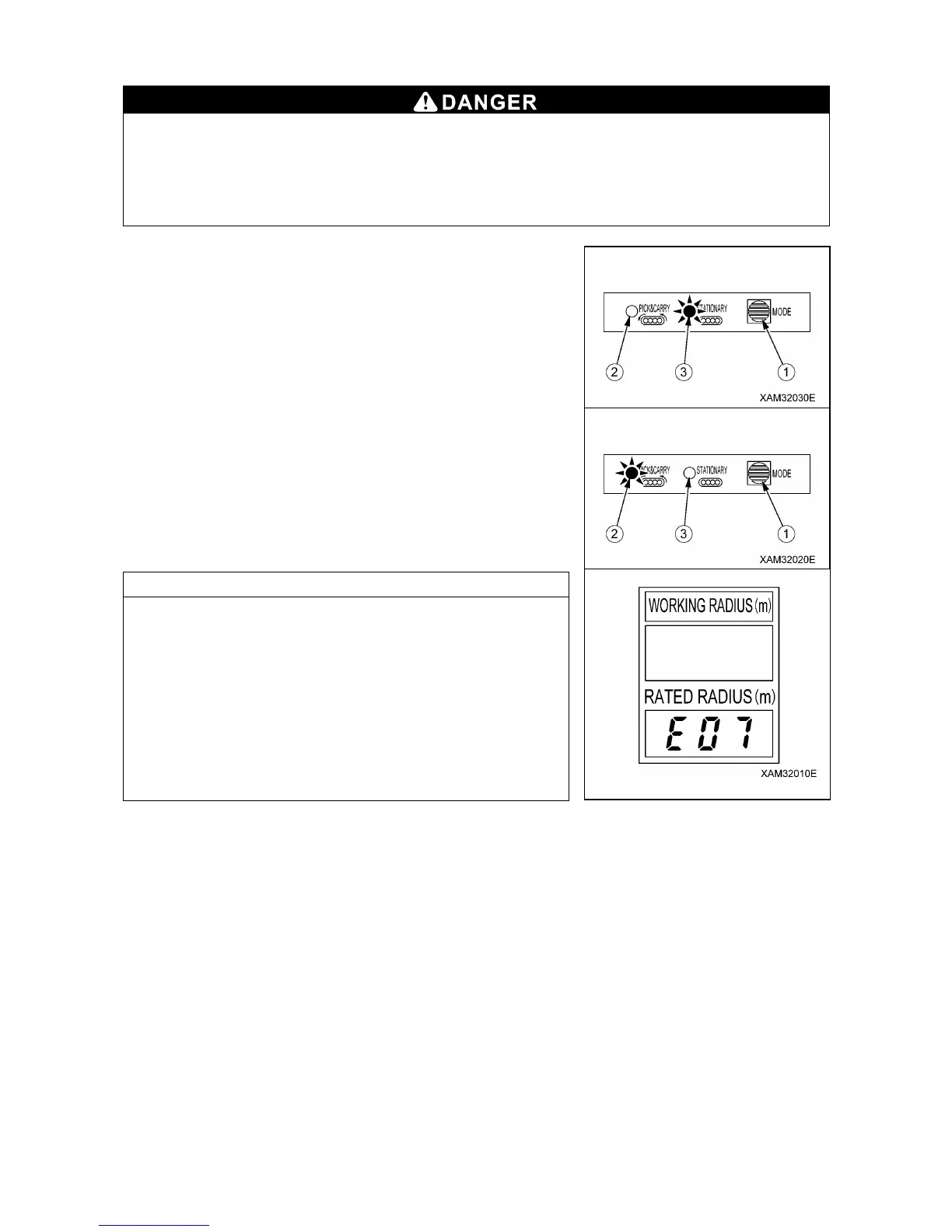

Use this Pick and Carry/Stationary Mode Select Switch for the
condition of operations.
1. When a pick and carry operation is not required, press this mode
switch (1) and keep pressing for 3 seconds or more.
The operation mode is set to "Stationary Mode" and
"STATIONARY" LED (3) lights.
2. When a pick and carry operation is required, press this mode
switch (1) and keep pressing for 3 seconds or more.
The operation mode is set to "Pick and Carry Mode" and
"PICK&CARRY" LED (2) lights.
NOTES
• Whilst the boom length is "10.6 meters" or longer and where
Pick & Carry/ Stationary mode select switch is set to Pick &
Carry mode or the travel levers are actuated, the buzzer
sounds and the rated radius display is turned to an error code
"E07".
To select Pick & Carry mode, the boom length must be "10.5
meters" (i.e. 3 sections of the boom) or less.
• When the travel levers are actuated to right or left, Pick & Carry
mode is automatically activated, over which, however, the Pick
& Carry/ Stationary mode select switch setting takes
precedence.
