Maeda LC1385M-8BF - Fly-Jib each Section

6-9

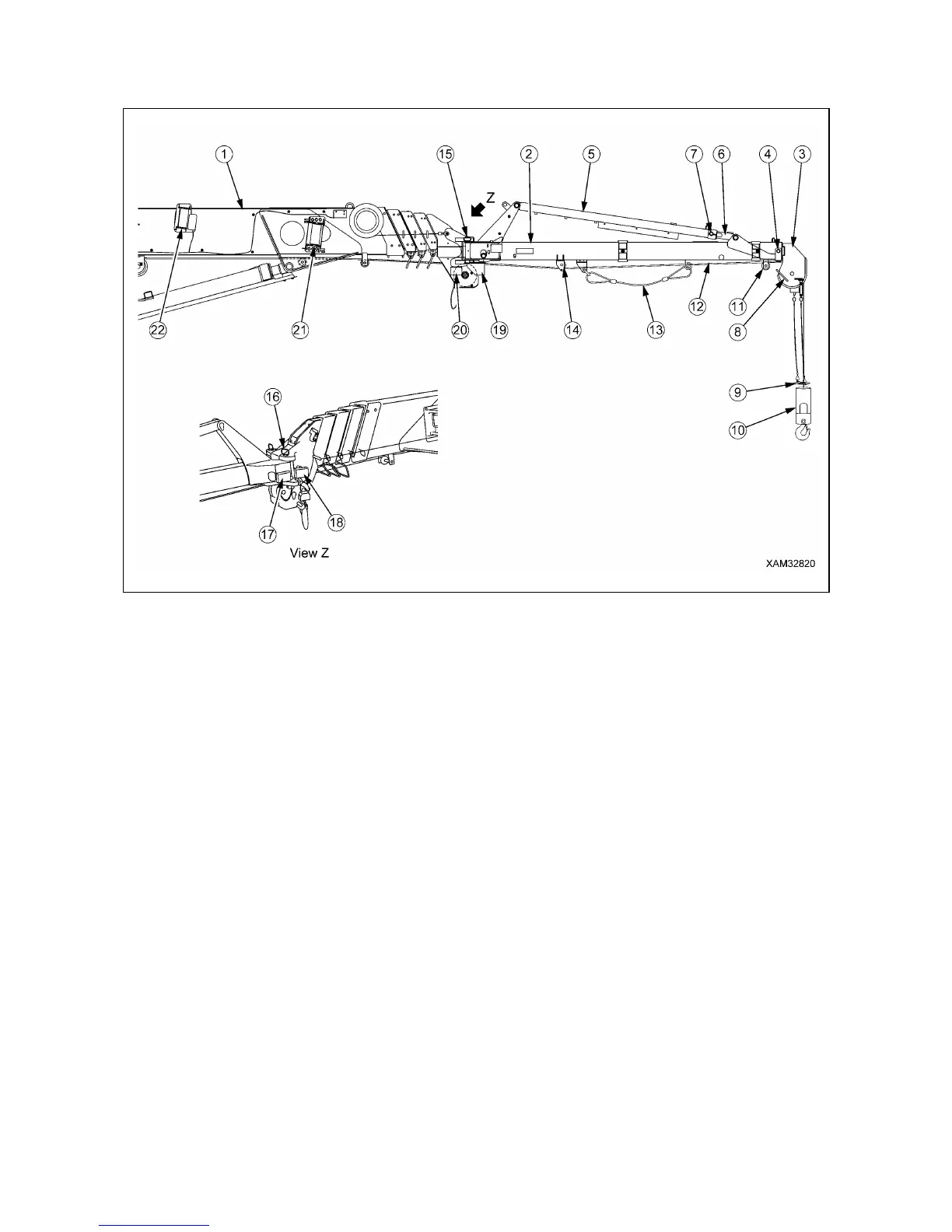

5. FLY-JIB EACH SECTION
(1) Main boom
(2) No.1 Fly-jib
(3) No.2 Fly-jib
(4) Position pin
(5) Outer rod (For fly-jib angle adjusting)
(6) Inner rod (For fly-jib angle adjusting)
(7) Position pin
(8) Sheave
(9) Weight
(10) Hook
(11) Sheave
(12) Wire rope
(13) Hook stowing wire
(14) Sheave
(15) Position pin A
(16) Position pin B
(17) Harness connection part
(For over hoist detection) (Fly-jib side)
(18) Harness connection part
(For over hoist detection) (Main boom side)
(19) Harness connection part
(For o fly-jib detection) (Fly-jib side)
(20) Harness connection part
(For fly-jib detection) (Main boom side)
(21) Fly-jib bracket A
(22) Fly-jib bracket B
