2.4 MOMENT LIMITER (OVERLOAD DETECTOR)

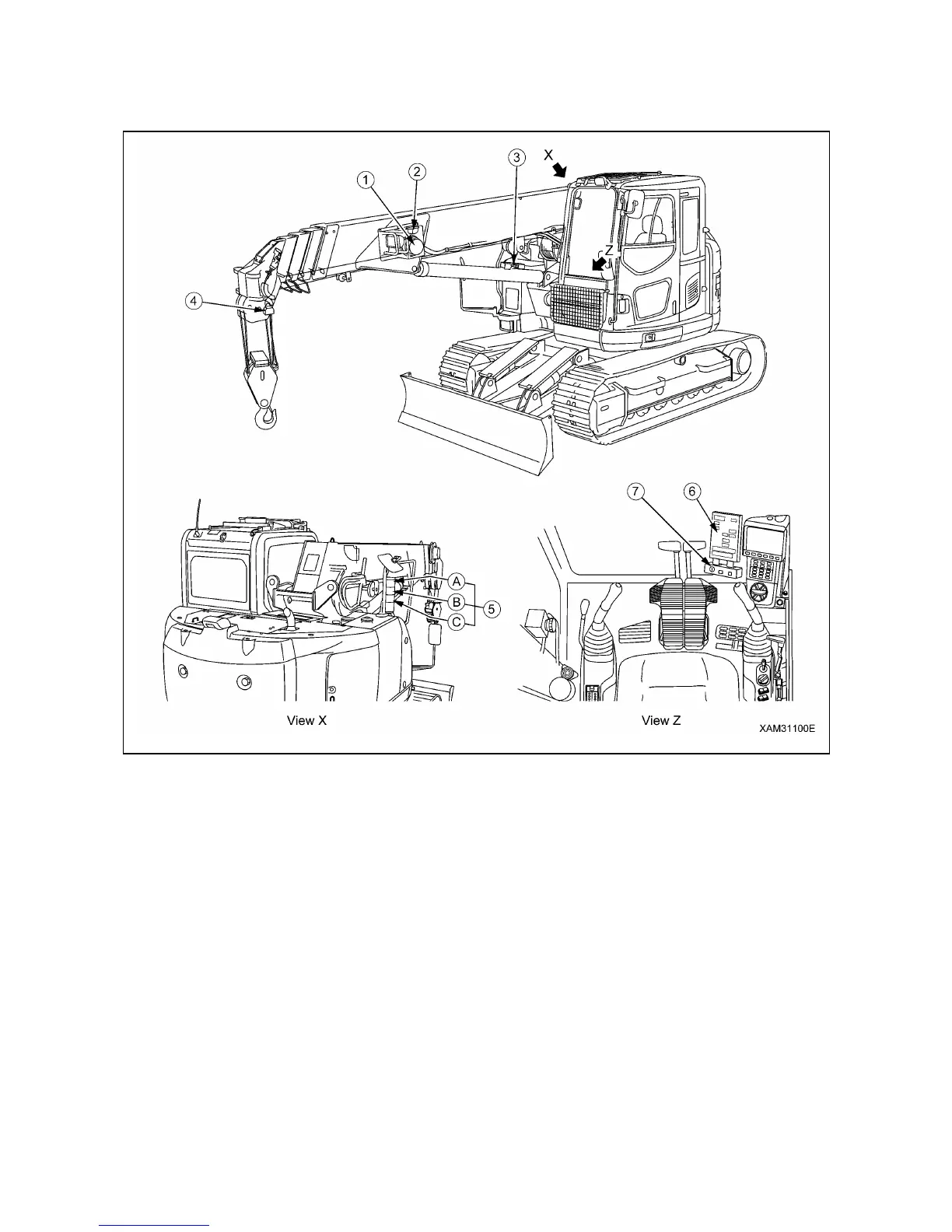

2.4.1 MOMENT LIMITER CONFIGURATION
(1) Boom length gauge (Boom left side)
(2) Boom angle gauge (Boom left side)
(3) Pressure sensor (Derrick cylinder) (2 places)
(4) Over hoist detector (Boon tip side)
(5) Working status lamp
(A) Red lamp (Warning lamp for load factor of 100% or more)
(B) Yellow lamp (Pre-warning lamp for load factor of 90 to 100%)
(C) Green lamp (Working lamp for load factor of less than 90%)
(6) Moment limiter display unit (inside cab)
(7) Moment limiter emergency stop cancel switch (Inside cab)
