Maeda LC1385M-8BF - Winch Wire Rope Fall Mode and Rated Total Load

3-170
4.2 WINCH WIRE ROPE FALL MODE AND RATED TOTAL LOAD
Number of wire rope falls of the hook block shall be determined based on the load to be hoisted, boom
length and winching speed.
The load to one wire rope fall must be within "1500 kg" .

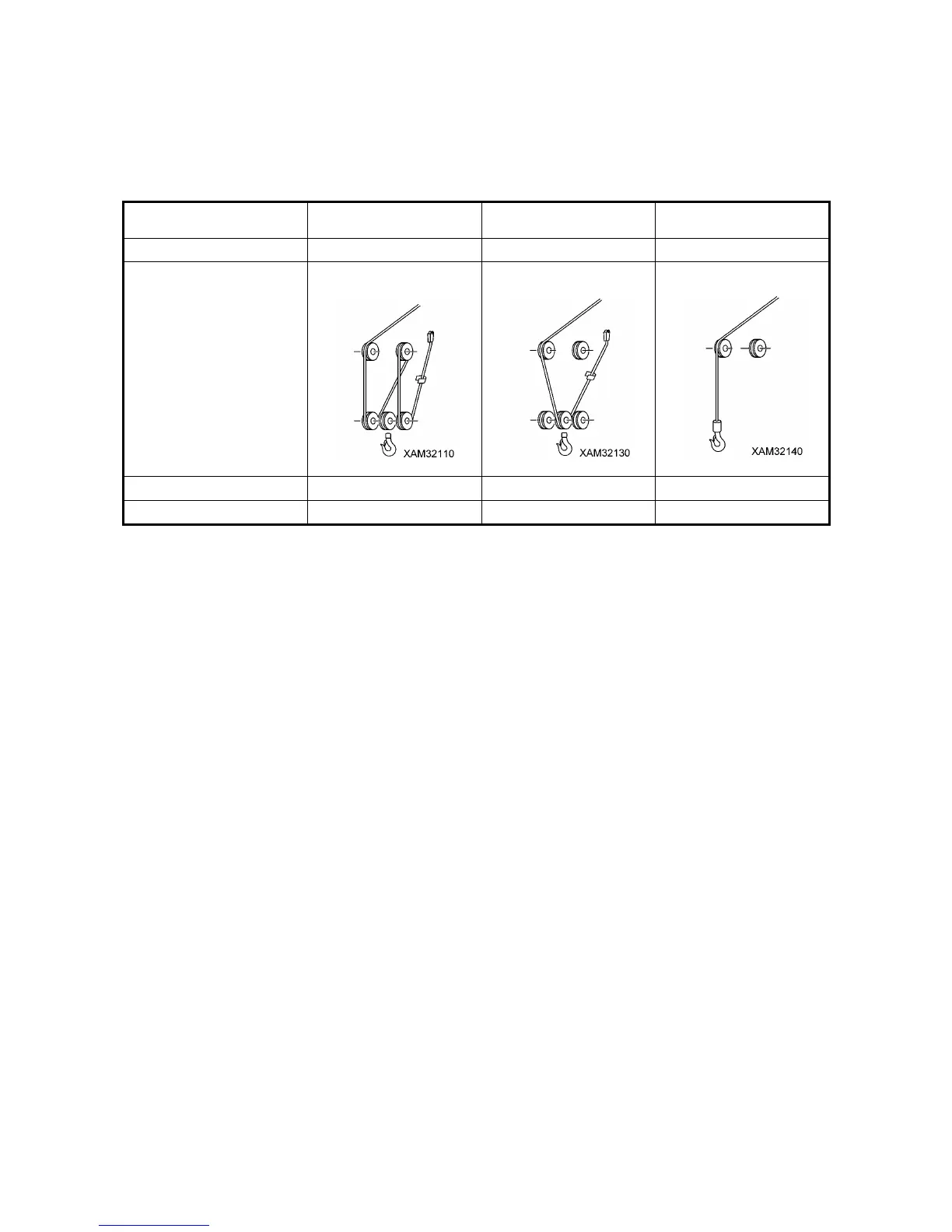

The table below shows the hook block types, wire rope falls and the rated total load in each condition:
Type of Hook Blocks
For 2 or 4 Falls
(Common)
For 2 or 4 Falls
(Common)
For 1 fall (Exclusive)
Number of Wire Falls
4
2
1
Wire Rope Configuration
Rated total load
6000 kg
3000 kg
1500 kg
Hook weight
90 kg
90 kg
20 kg
