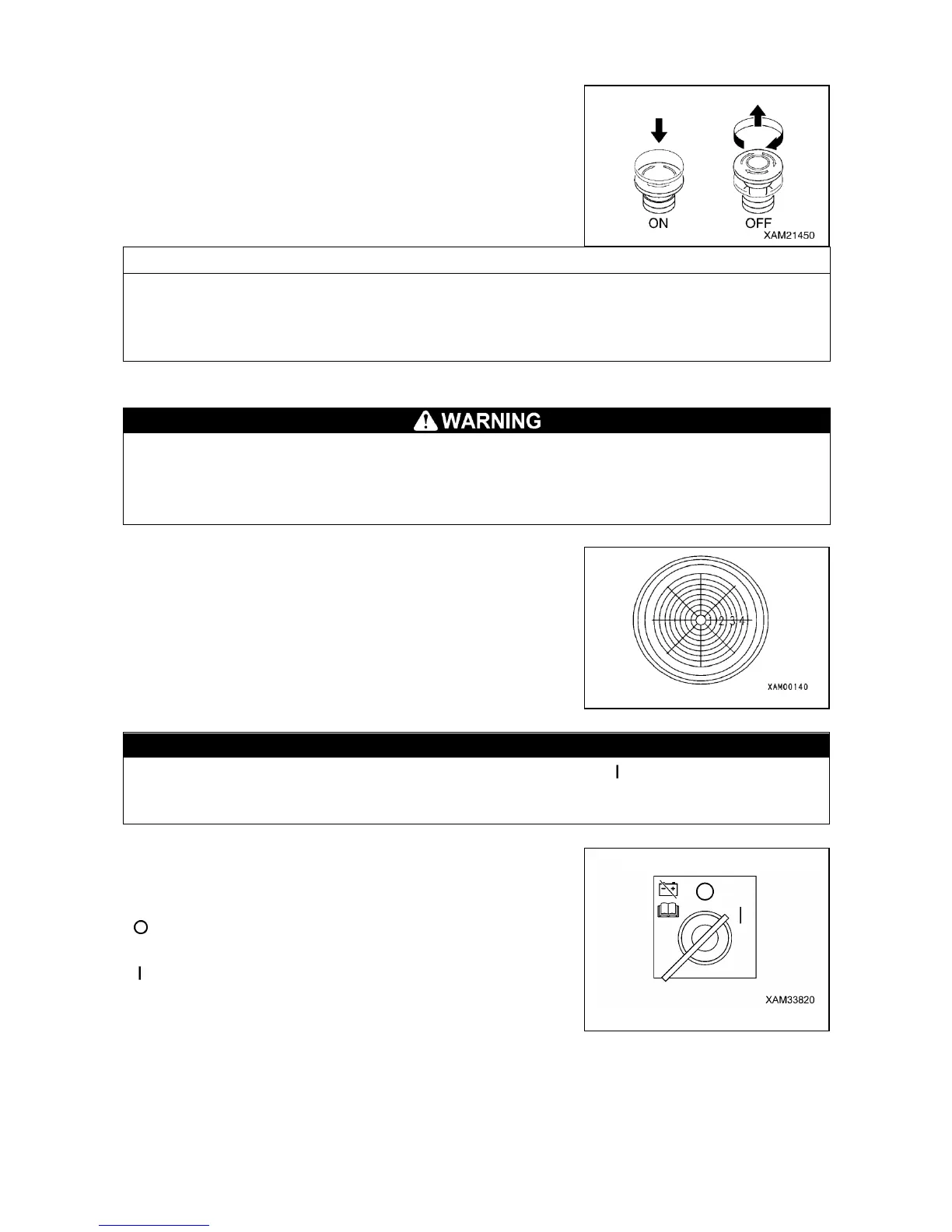

[14] ENGINE EMERGENCY STOP SWITCH
Use this switch (14) in case of an error in the machine to stop the
engine for emergency.
• ON position: Press the switch. The engine stops.
• OFF position: Turn the switch clockwise (direction of the arrow in
the right figure) or pull up knob of this switch. The switch returns
to the original position.
• When restarting the engine after emergency stop, be sure to turn this switch to the OFF position before
starting the engine.
• When this switch is pressed to ON position, the machine monitor display will be OFF while the moment
limiter screen keeps displaying.
A crane operation on a slope condition could cause the machine to overturn.
Prior to starting the operation, monitor the level and try to find a location which enables a level
condition. Where an operation on a slope is un-avoidable, use supporting timber or build up
ground with soil, so that the machine is level.
This device indicates how much the machine body is tilted.
The bubble position shows how much the machine is tilted in
which direction.
Use this device to verify that the machine is leveled when stopping
the machine on working area.
[16] BATTERY DISCONNECT SWITCH
During normal operations, always leave this switch positioned in " " (ON). Use of this switch is
only to temporally prevent unexpected starting of electrical devices during inspection/
maintenance work.
The purpose of the switch (16) is to use to isolate the battery power
to prevent electrical devices from unexpected starting, during
inspection/maintenance work.
• （OFF）: The battery power is isolated and current is not
supplied to all the electrical circuits.
• (ON) : Battery connection is resumed.
