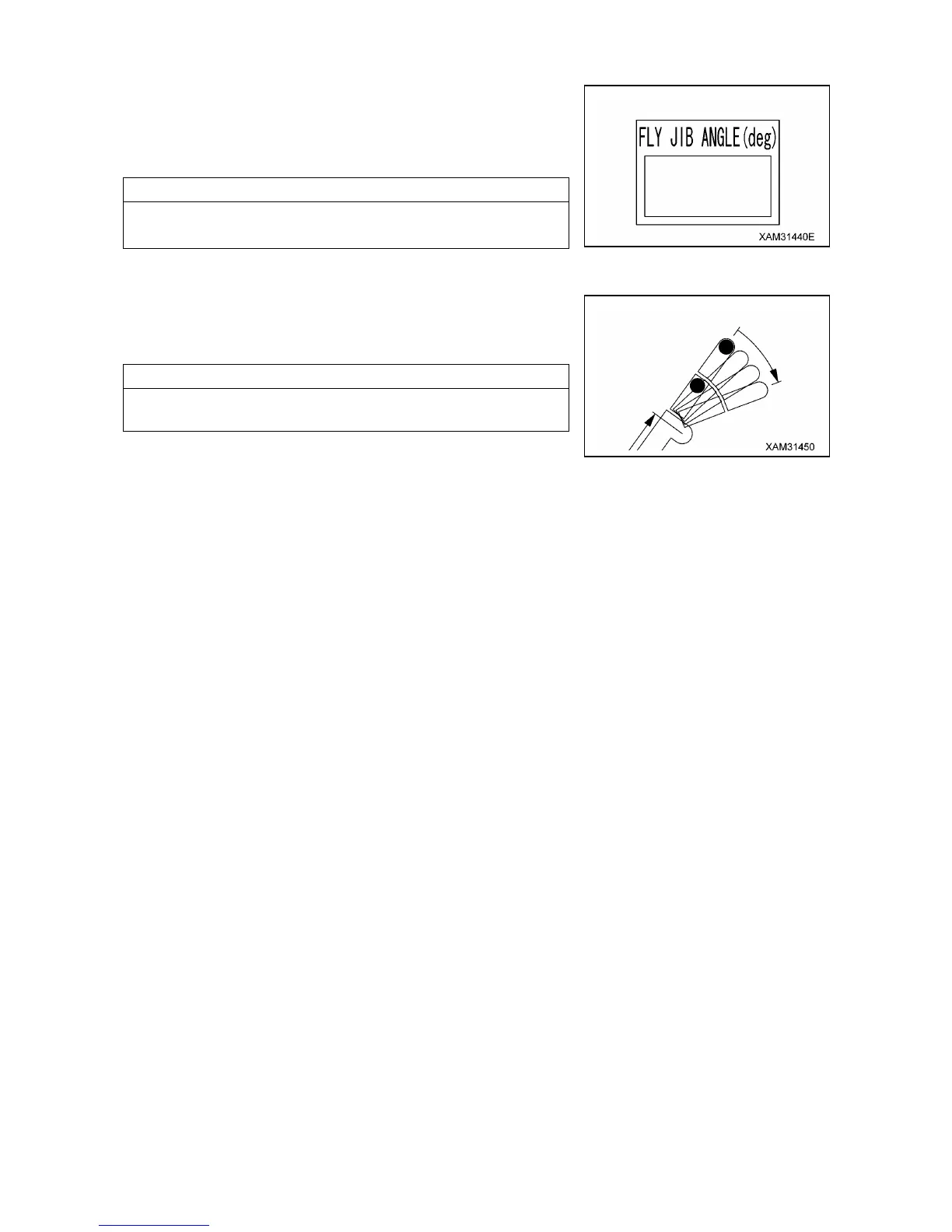

11. FLY-JIB ANGLE DISPLAY
This section constantly displays the current fly-jib angle during the
crane operation with the fly-jib configuration.
The fly-jib angle is the angle that the fly-jib and the main boom
form.
NOTES
Refer to the "FLY-JIB" for details of the fly-jib installation and it‟s
angle setting.
12. FLY-JIB LENGTH (1) LED (ORANGE), FLY-JIB LENGTH (2) LED (ORANGE)
When the fly-jib is installed, the Fly-jib length (1) LED automatically
lights. Then the fly-jib length (2) LED lights, if the No. 2 fly-jib is
extended.
NOTES
Refer to the "FLY-JIB" for details of the fly-jib installation and it‟s
length setting.
