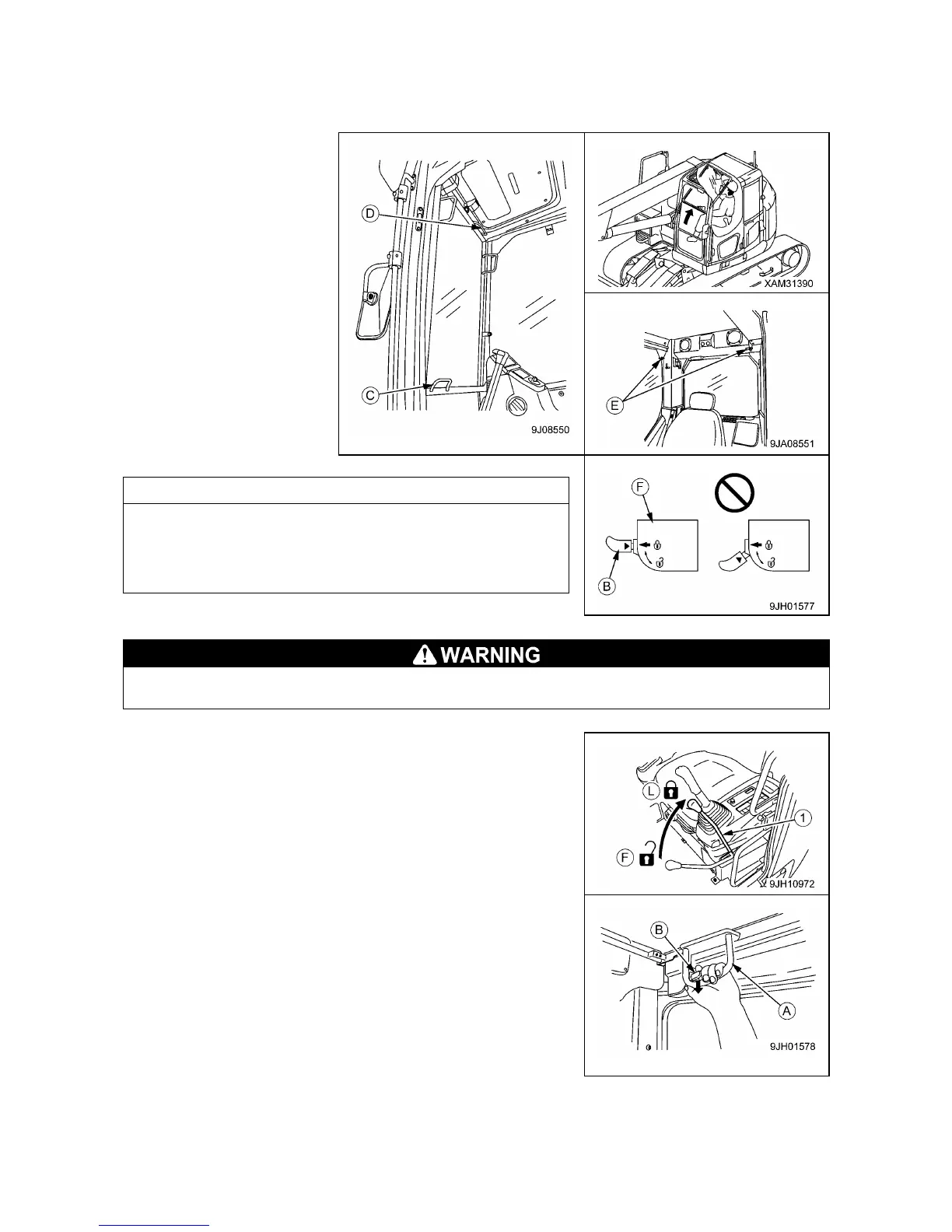

5. Hold lower knob (C) with your left hand from inside the operator‟s cab, and with your right hand, grip top
knob (D), pull it up, and push it against lock catch (E) at the rear of the cab securely to lock the window.
6. Check that lever (B) is securely at the LOCK position.
NOTES
• The lock is engaged if the arrow on lock case (F) matches the
position of the arrow on lever (B). Check visually.
• If the arrow on lock case (F) does not match the position of the
arrow on lever (B), the lock is not engaged. Repeat the
operation in Step 5 to engage the lock.
[2] CLOSING
When closing the window, lower it slowly and be careful not to get your hand caught.
1. Stop the machine on level ground, stow the crane completely,
then stop the engine.
2. Set lock lever (1) securely to the LOCK position (L).
3. Grip left and right handles (A), and pull down lever (B) to release
the lock.
