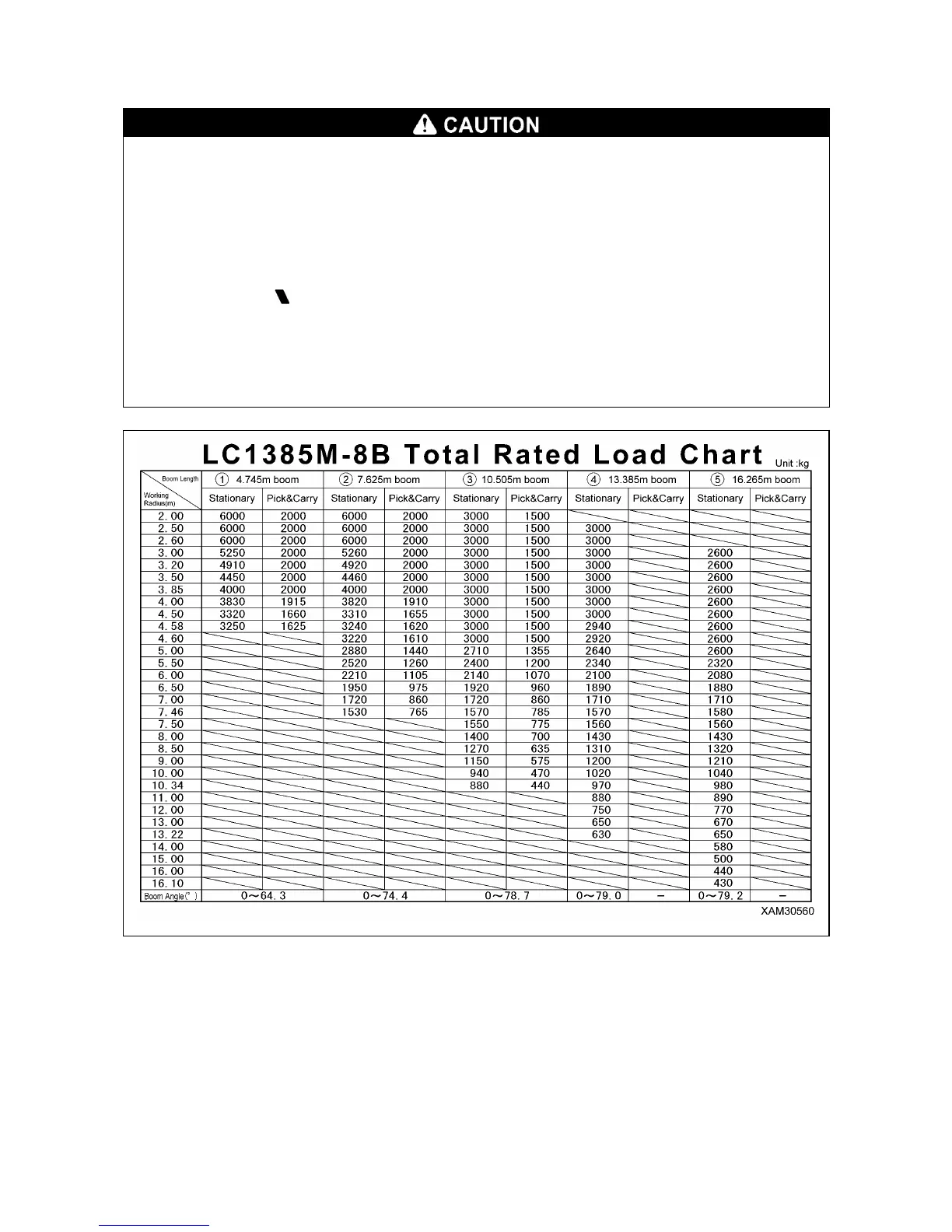

• All the values provided in the rated total load chart are based on the assumption that the
machine is placed on a level and firm surface.
• The values in the rated total load chart are determined based on the working radius allowing
for deflection that is developed when load is applied to the boom.
• When extending boom (3) even if only slightly, crane operation should proceed to the extent of
performance of “Boom (3)”.
• When extending boom (4) even if only slightly, crane operation should proceed to the extent of
performance of “Boom (4)”.
• When half of the “
mark” passes boom (3), crane operation should proceed to the extent of
performance of “Boom (5)”.
• If the working radius exceeds that stated in the table even if only slightly, crane operation
should proceed with respect to the rated total load corresponding to the working radius in the
following table.
• The rated total load is a load including the mass of a hoisting accessory (hook: 90kg).
To Next Page
