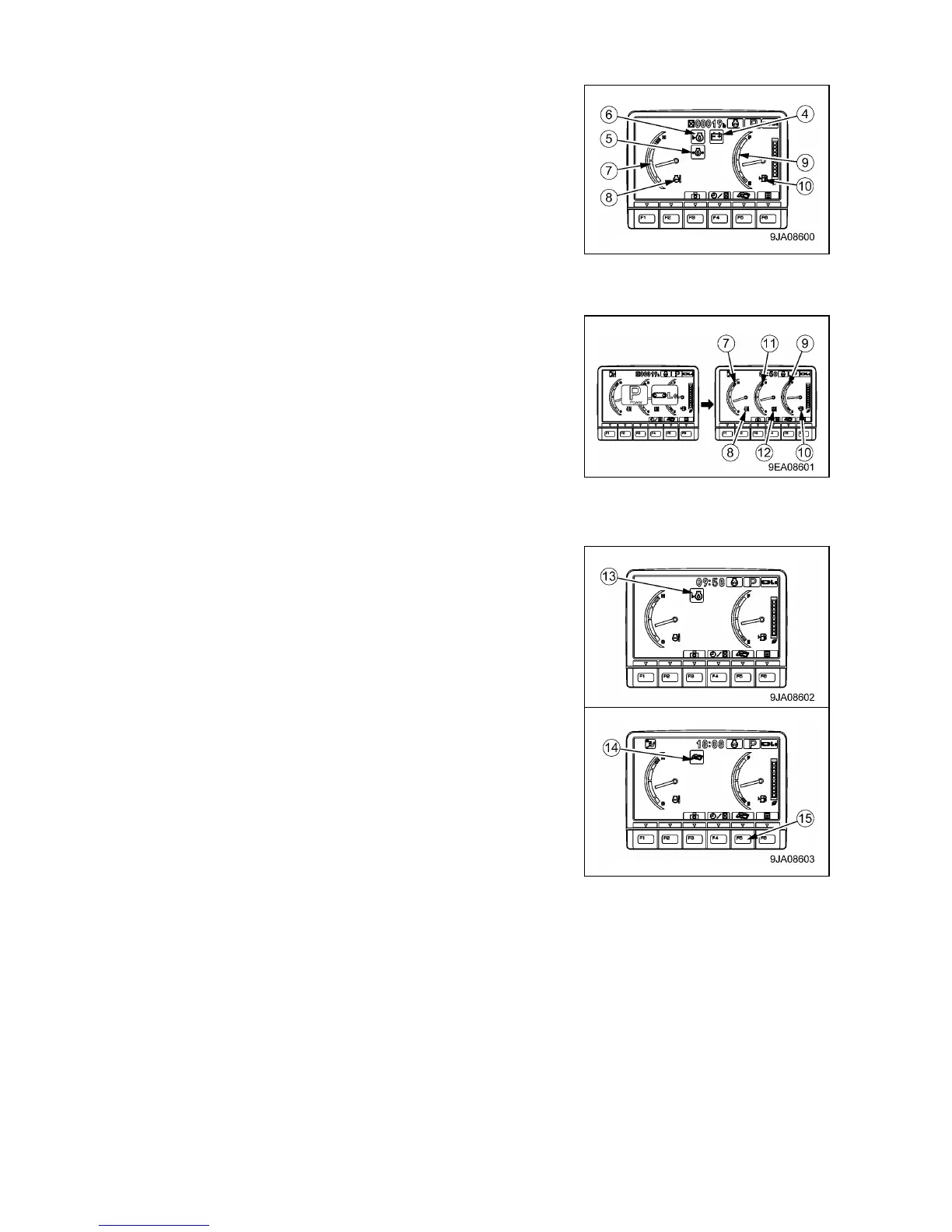

(1) The buzzer sounds for approx. 2 seconds, and then the
monitor or meter lights up for approx. 2 seconds.
• Charging level monitor (4)
• Engine oil pressure monitor (5)
• Engine oil level monitor (6)
• Engine oil temperature gauge (7)
If any monitor does not light up or buzzer does not sound,
there is probably a failure in the monitor, so please contact us
or our sales service agency.
(2) After approx. 2 seconds, the screen will change to the
working mode/travel speed display monitor. Next, it will switch
to the standard screen.
• Engine oil temperature gauge (7)
• Engine oil temperature monitor (8)
• Fuel gauge (9)
• Fuel level monitor (10)
• Hydraulic oil temperature gauge (11)
• Hydraulic oil temperature monitor (12)
(3) If the hydraulic oil temperature gauge is out or caution lamp
(13) stays lit up red, immediately check the item that lights up
red.
(4) If the maintenance interval has passed, maintenance interval
monitor (14) lights up for 30 seconds. Press maintenance
switch F5 (15), check the item, and carry out maintenance
immediately.
For details of the method of checking the maintenance interval,
see “Operation 2.1.7 Handling Function Switches [3]
Maintenance Mode Selector Switch” in the explanation for
each component.
