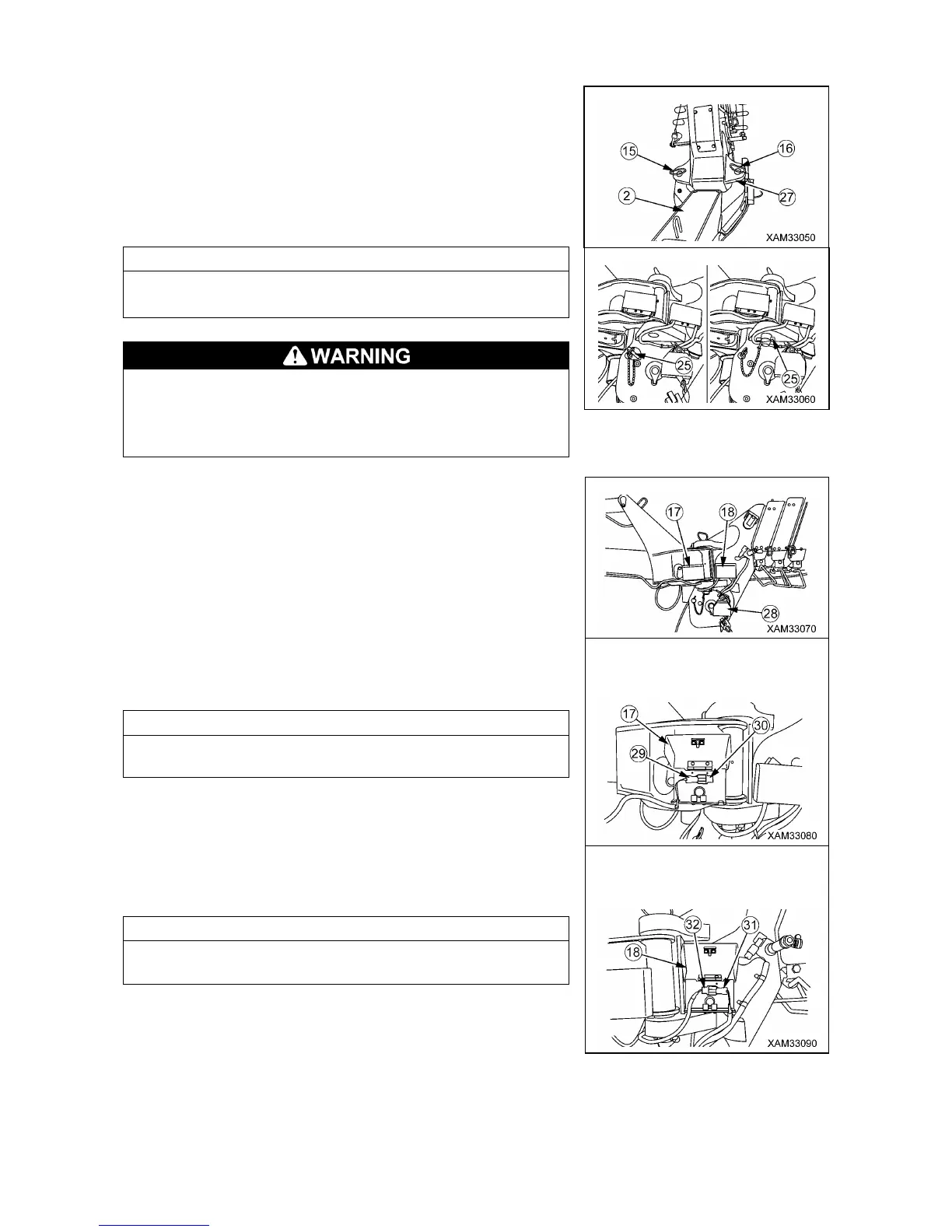

10. Once the connection hole of the No.1 Fly-jib (2) and the hole
(B) of the bracket (27) on the left side of the Main boom tip are
adjusted, insert the position pin (16) to the hole then secure it
with the linchpin (25).
Detach the linchpin (25) for the position pin (16) from the hole for
storage at the boom tip and apply to the position pin (16).
The position pin (16) must always be inserted downward
from the upper side. Otherwise, if it is inserted upward
from the underside, the position pin could easily drop down
to cause the Fly-jib to collapse causing a serious hazard.
11. Swap the harness connection part (17) and (18) as shown
below to switch and connect over-hoist detector.
(1) Open the cover of the harness connection part (17: Fly-jib
side) and extract the dummy plug (30) from the connector
(29).
Removed dummy plug (30) will be later inserted into a connector
in the harness connection part (18: Main boom side).
(2) Open the cover of the harness connection part (18: Main
boom side) and extract the harness plug (32) from the
connector (31).
Removed harness plug (32) will be later connected into a
connector of the harness connection part (17: Fly-jib side).
Before harness exchange;
the Fly-jib side:
Before harness exchange;
the Main boom side:
To Next Page
